Investigation of sudden beam loss at SuperKEKB

Shinji Terui*, Takuya Ishibashi, Hitomi Ikeda, Testuo Abe, Mitsuru Shirai, Yusuke Suetsugu, Takaaki Yamaguchi, Yoshihiro Funakoshi, Kenta Uno et al.

Mulee Yao, Kyo Shibata, Naoki Akita, Xiuguang Jin, and Masaki Ishida

  • *Contact author: sterui@mail.kek.jp
PDF

Phys. Rev. Accel. Beams 29, 093501 – Published 15 September, 2026

DOI: https://doi.org/10.1103/pyl3-rfjg

Abstract

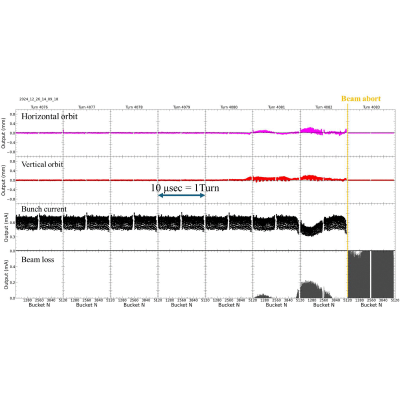

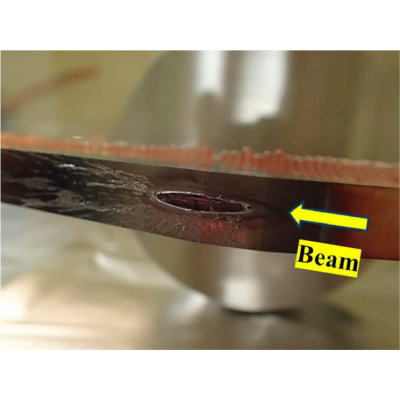

In SuperKEKB, mitigation of sudden beam losses (SBLs) is essential to improve the luminosity. SBL refers to the rapid loss of a substantial portion of the stored beam current within a few revolutions. During SuperKEKB operation from 2019 to 2024, over 200 SBL events were observed, in which a beam abort with 5%–40% beam loss occurred within 2–3 turns, making high beam current operation difficult. The frequency of SBLs was very high, especially in the low-energy ring (LER). The occurrence of SBLs was highly concentrated during beam-current upgrade phases, presenting a severe operational bottleneck. While SBLs were rare during stable operations at lower currents, the frequency escalated to more than five events per day when operating at higher beam currents. These frequent events triggered intense beam losses, resulting in 11 quenches of the final-focus superconducting quadrupole magnets (QCS) within a period of less than three weeks in December 2024. Furthermore, SBL events could damage the collimator heads and the Belle II detector, causing devastating impacts on operation. SBLs occurred under both noncollisional and collisional conditions, but only under circumstances involving a small beam size at the interaction point and a high beam current. Most SBL events were accompanied by vacuum pressure bursts, primarily in the wiggler section of the LER, and an increase in beam size was also observed during these events. To investigate this phenomenon, SBL was artificially reproduced during beam operation and subsequently discharging the clearing electrodes. Inspecting the wiggler beam pipe, we found black stains, and removal of these stains led to a significant reduction in the frequency of SBLs. The black stains we discovered were identified as degraded vacuum sealant through observations using synchrotron radiation. This paper reports the results of an artificial reproduction test of the SBL phenomenon (knocking on the beam pipe, discharge inside the beam pipe), and an investigation of these black stains, including their composition and formation mechanism.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (27)

  1. Z. Doležal and S. Uno, Belle II Technical Design Report KEK Report 2010-1, October 2010, H (High Energy Accelerator Research Organization (KEK), Tsukuba, Japan 2010), https://www-SuperKEKB.kek.jp/documents/B2TDR.pdf.
  2. Y. Ohnishi et al., Accelerator design at SuperKEKB, PTEP 2013, 03A011 (2013).
  3. Y. Suetsugu, K.-I. Kanazawa, K. Shibata, T. Ishibashi, H. Hisamatsu, M. Shirai, and S. Terui, Design and construction of the SuperKEKB vacuum system, J. Vac. Sci. Technol. A 30, 031602 (2012).
  4. K. Kanazawa, 21st KEKB Accelerator Review (High Energy Accelerator Research Organization (KEK), Tsukuba, Japan, 2016), https://www-kekb.kek.jp/MAC/2016/Report/Kanazawa.pdf.
  5. M. Tobiyama and J. W. Flanagan, Development of bunch current and oscillation recorder for SuperKEKB accelerator, in Proceedings of IBIC’12, Tsukuba, Japan (JACoW, Geneva, Switzerland, 2012), paper MOPA36, pp. 138–142.
  6. J. Flanagan, M. Arinaga, H. Fukuma, and H. Ikeda, Diamond mirrors for the SuperKEKB synchrotron radiation monitor, in Proc. 2012 International Beam Instrumentation Conference (IBIC 2012), Tsukuba, Japan (JACoW, Geneva, Switzerland, 2012), https://accelconf.web.cern.ch/IBIC2012/papers/tupb74.pdf.
  7. N. Ohuchi et al., SuperKEKB beam final focus superconducting magnet system, Nucl. Instrum. Methods Phys. Res., Sect. A 1021, 165930 (2022).
  8. Y. Funakoshi et al., The SuperKEKB has broken the world record of the luminosity, in Proc. IPAC’22, International Particle Accelerator Conference No. 13 (JACoW Publishing, Geneva, Switzerland, 2022), pp. 1–5.
  9. Y. Ohnishi et al., SuperKEKB operation using crab waist collision scheme, Eur. Phys. J. Plus 136, 1023 (2021).
  10. M. Zobov et al., Test of “crab-waist” collisions at the DAΦNEΦ factory, Phys. Rev. Lett. 104, 174801 (2010).
  11. H. Ikeda et al., Observation of sudden beam loss in SuperKEKB, JACoW IPAC2023, MOPL072 (2023).
  12. F. Zimmermann, Trapped dust in HERA and DORIS, Tech. Rep., DESY, Hamburg, 1993.
  13. T. Baer et al., UFOs in the LHC, Conf. Proc. C 110904, 1347 (2011).
  14. U. Wienands, D. McCormick, T. Raubenheimer, M. Zisman, A. Fisher, Y. Cai, J. Irwin, J. Seeman, M. Sullivan, P. Tenenbaum, and J. Turner, Tracking down a fast instability in the PEP-II LER, in Proceedings of EPAC 2006, Edinburgh, Scotland (European Physical Society Accelerator Group (EPS-AG), Geneva, Switzerland, 2006), pp. 691–693.
  15. H. Ikeda, H. Fukuma, T. Mitsuhashi, G. Mitsuka, and M. Tobiyama, Beam size measurement at SBL in SuperKEKB, TUPMO07 (2026).
  16. S. Terui et al., Collimator challenges at SuperKEKB and their countermeasures using nonlinear collimator, Phys. Rev. Accel. Beams 27, 081001 (2024).
  17. S. Bacher et al., Performance of the diamond-based beam-loss monitor system of Belle II, Nucl. Instrum. Methods Phys. Res., Sect. A 997, 165157 (2021).
  18. P. Ahlburg, L. Andricek, V. Babu, A. Baur, F. Becherer, F. Bernlochner, J. Bilk, T. Bilka, A. Bolz, L. Cao et al., The new and complete Belle II depfet pixel detector: Commissioning and previous operational experience, Nucl. Instrum. Methods Phys. Res., Sect. A 1068, 169763 (2024).
  19. F. Becherer et al., The new two-layer Belle II pixel detector, J. Instrum. 20, C07060 (2025).
  20. S. Terui, H. Hisamatsu, T. Ishibashi, K. Kanazawa, K. Shibata, M. Shirai, and Y. Suetsugu, Observation of pressure bursts in the SuperKEKB positron ring, in Proc. 9th International Particle Accelerator Conference (IPAC’18), Vancouver, BC, Canada, (JACoW, Geneva, Switzerland, 2018), pp. 2830–2832.
  21. Y. Tanimoto, T. Honda, and S. Sakanaka, Experimental demonstration and visual observation of dust trapping in an electron storage ring, Phys. Rev. ST Accel. Beams 12, 110702 (2009).
  22. Y. Suetsugu, H. Fukuma, M. Tobiyama, T. Ishibashi, and S. Terui, Properties of electron clearing electrodes in the SuperKEKB LER wiggler sections, in Proc. Annual Meeting of the Particle Accelerator Society of Japan (PASJ2017) (Japan, 2017).
  23. ISO 4406 (2017), https://www.iso.org/standard/72618.html.
  24. P. Ziegler, A. Lechner, R. Schmidt, C. Wiesner, D. Wollmann, and H. Podlech, Modelling dust grain ionisation and dynamics in flat lepton beams using a sliced approach, in Proceedings of the 17th International Particle Accelerator Conference (IPAC’26), Deauville, Normandy, France (JACoW, Geneva, Switzerland, 2026).
  25. P. Ziegler, M. Himmerlich, P. Krkotić, M. Horanyi, X. Wang, C. Wiesner, D. Wollmann, R. Schmidt, and H. Podlech, Experimental study of charging and mobilisation of dust grains on beam screen surfaces, in Proceedings of the 17th International Particle Accelerator Conference (IPAC’26) (Deauville, Normandy, France, 2026), to be published.
  26. Y. Suetsugu, M. Shirai, and M. Ohtsuka, Application of MO-type flange for accelerator beam pipes 4—Practical application to SuperKEKB—, J. Vac. Soc. Jpn. 58, 150 (2015).
  27. K. Ohmi, H. Fukuma, and S. Terui, Beam-dust interactions in an e+e− collider, Phys. Rev. Accel. Beams 29, 021002 (2026).
