Focusing of relativistic electron beams with permanent magnetic solenoid

T. Xu1,*, C. J. R. Duncan1, P. Denham2, B. H. Schaap2, A. Kulkarni2, D. Garcia2, S. D. Anderson1, P. Musumeci2, and R. J. England1

  • *Contact author: txu@slac.stanford.edu
PDF

Phys. Rev. Accel. Beams 28, 082401 – Published 20 August, 2025

DOI: https://doi.org/10.1103/phhz-fgnl

Abstract

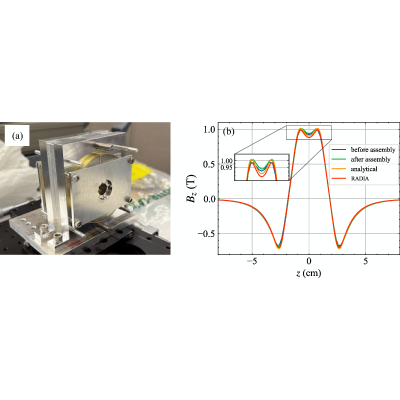

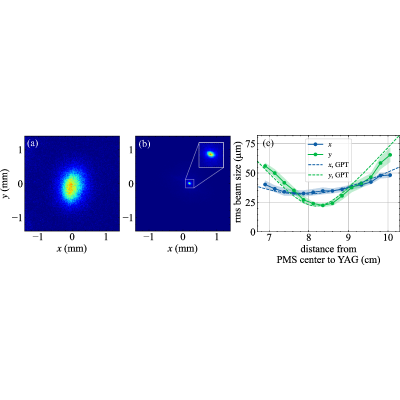

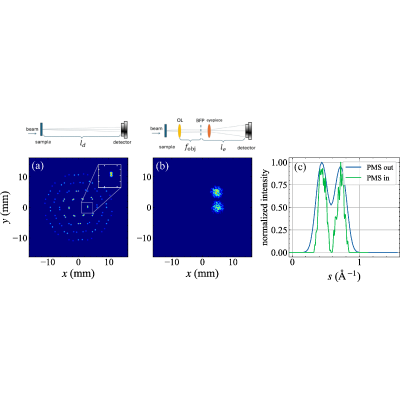

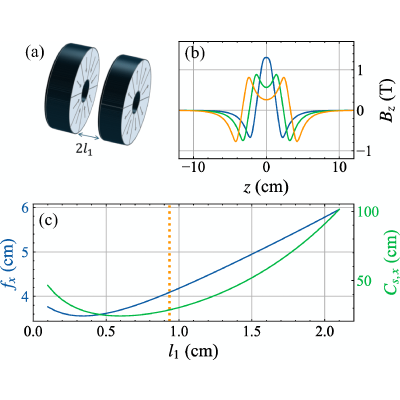

Achieving strong focusing of MeV electron beams is a critical requirement for advanced beam applications such as compact laboratory x-ray sources, high gradient accelerators, and ultrafast electron scattering instrumentation. To address these needs, a compact radially magnetized permanent magnetic solenoid (PMS) has been designed, fabricated, and tested. The solenoid provides a compact and inexpensive solution for delivering high axial magnetic fields (1 T) to focus MeV electron beams. Field characterization of the solenoid demonstrates good agreement with analytical models, validating the PMS design. The electron beam test employs a high-brightness photoinjector to study the focusing properties of the PMS. The results indicate a focal length of less than 10 cm and a significant reduction in beam size with small spherical aberrations. Two application cases are evaluated: angular magnification in ultrafast electron diffraction setups and strong focusing for Compton scattering or other microfocus uses.

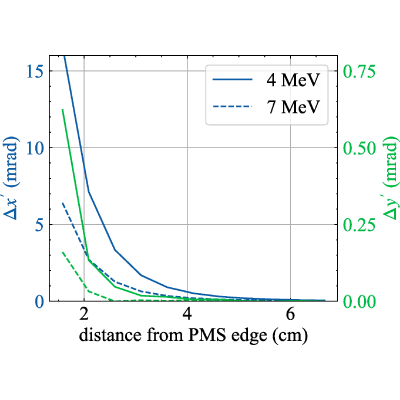

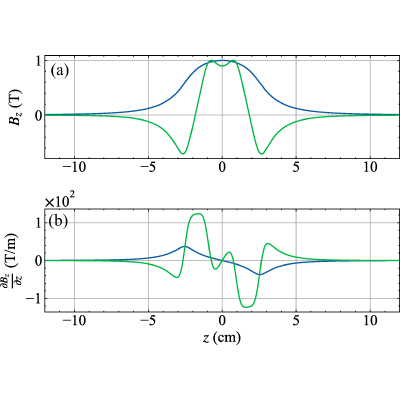

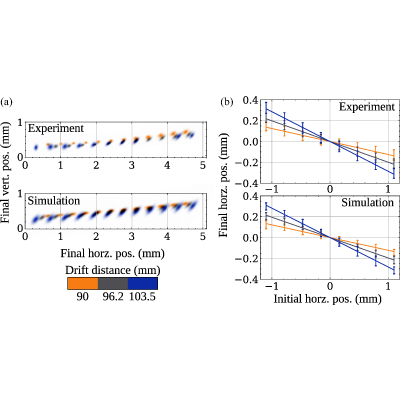

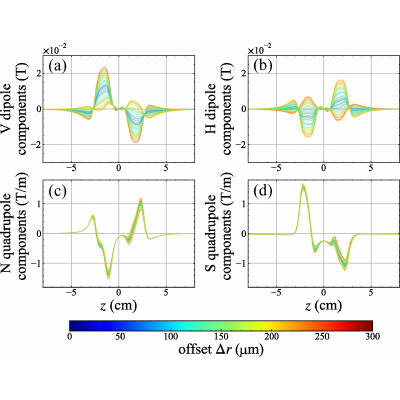

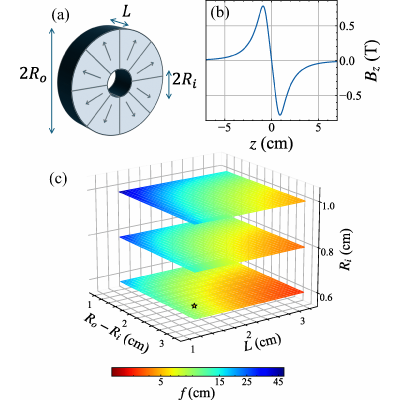

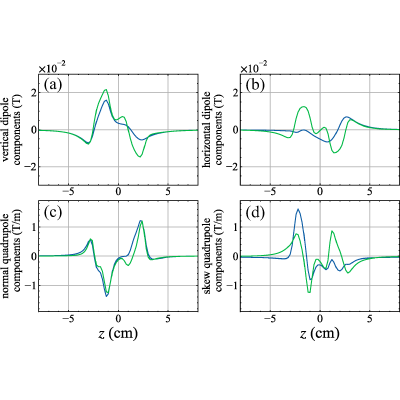

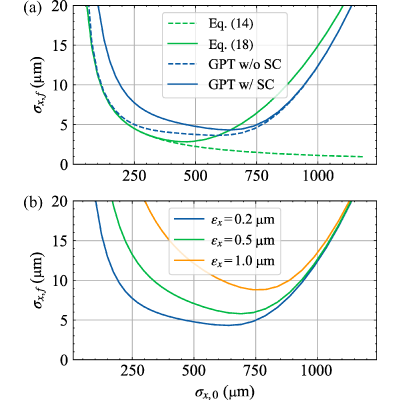

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (36)

  1. P. Musumeci, J. Giner Navarro, J. Rosenzweig, L. Cultrera, I. Bazarov, J. Maxson, S. Karkare, and H. Padmore, Advances in bright electron sources, Nucl. Instrum. Methods Phys. Res., Sect. A 907, 209 (2018).
  2. D. Filippetto, P. Musumeci, R. K. Li, B. J. Siwick, M. R. Otto, M. Centurion, and J. P. F. Nunes, Ultrafast electron diffraction: Visualizing dynamic states of matter, Rev. Mod. Phys. 94, 045004 (2022).
  3. W. S. Graves, J. Bessuille, P. Brown, S. Carbajo, V. Dolgashev, K.-H. Hong, E. Ihloff, B. Khaykovich, H. Lin, K. Murari, E. A. Nanni, G. Resta, S. Tantawi, L. E. Zapata, F. X. Kärtner, and D. E. Moncton, Compact x-ray source based on burst-mode inverse compton scattering at 100 kHz, Phys. Rev. ST Accel. Beams 17, 120701 (2014).
  4. R. J. England et al., Dielectric laser accelerators, Rev. Mod. Phys. 86, 1337 (2014).
  5. D. Zhang, A. Fallahi, M. Hemmer, X. Wu, M. Fakhari, Y. Hua, H. Cankaya, A.-L. Calendron, L. E. Zapata, N. H. Matlis et al., Segmented terahertz electron accelerator and manipulator (STEAM), Nat. Photonics 12, 336.
  6. R. K. Li and P. Musumeci, Single-shot MeV transmission electron microscopy with picosecond temporal resolution, Phys. Rev. Appl. 2, 024003 (2014).
  7. Z. Zhou, Y. Fang, H. Chen, Y. Wu, Y. Du, L. Yan, C. Tang, and W. Huang, Demonstration of single-shot high-quality cascaded high-energy-electron radiography using compact imaging lenses based on permanent-magnet quadrupoles, Phys. Rev. Appl. 11, 034068 (2019).
  8. P. Denham, Y. Yang, V. Guo, A. Fisher, X. Shen, T. Xu, R. J. England, R. K. Li, and P. Musumeci, High energy electron diffraction instrument with tunable camera length, Struct. Dyn. 11, 024302 (2024).
  9. J. K. Lim, P. Frigola, G. Travish, J. B. Rosenzweig, S. G. Anderson, W. J. Brown, J. S. Jacob, C. L. Robbins, and A. M. Tremaine, Adjustable, short focal length permanent-magnet quadrupole based electron beam final focus system, Phys. Rev. ST Accel. Beams 8, 072401 (2005).
  10. V. Kumar, Understanding the focusing of charged particle beams in a solenoid magnetic field, Am. J. Phys. 77, 737 (2009).
  11. D. Cesar, J. Maxson, P. Musumeci, Y. Sun, J. Harrison, P. Frigola, F. O’Shea, H. To, D. Alesini, and R. Li, Demonstration of single-shot picosecond time-resolved MeV electron imaging using a compact permanent magnet quadrupole based lens, Phys. Rev. Lett. 117, 024801 (2016).
  12. A. Ghaith, D. Oumbarek, C. Kitégi, M. Valléau, F. Marteau, and M.-E. Couprie, Permanent magnet-based quadrupoles for plasma acceleration sources, Instruments 3, 27 (2019).
  13. W. Wan, F.-R. Chen, and Y. Zhu, Design of compact ultrafast microscopes for single-and multi-shot imaging with MeV electrons, Ultramicroscopy 194, 143 (2018).
  14. B. Hoff, C. Chen, J. Horwath, M. Haworth, P. Mardahl, and S. Heidger, Wide aperture permanent magnet solenoid, J. Appl. Phys. 111, 07A711 (2012).
  15. T. Gehrke. Design of permanent magnetic solenoids for REGAE, Master’s thesis, University of Hamburg, 2013.
  16. M. Hachmann, K. Flöttmann, T. Gehrke, and F. Mayet, Design and characterization of permanent magnetic solenoids for REGAE, Nucl. Instrum. Methods Phys. Res., Sect. A 829, 270 (2016).
  17. G. Lefranc, E. Knapek, and I. Dietrich, Superconducting lens design, Ultramicroscopy 10, 111 (1982).
  18. K. E. Deitrick, G. A. Krafft, B. Terzić, and J. R. Delayen, High-brilliance, high-flux compact inverse compton light source, Phys. Rev. Accel. Beams 21, 080703 (2018).
  19. F. Ji, D. B. Durham, A. M. Minor, P. Musumeci, J. G. Navarro, and D. Filippetto, Ultrafast relativistic electron nanoprobes, Commun. Phys. 2, 54 (2019).
  20. A. Kulkarni and P. Musumeci, Progress on pulsed electron beams for radiation effects characterization of electronics, in Proceedings of the IPAC-2024 (2024), pp. 3688–3691, 10.18429/JACoW-IPAC2024-THPR77.
  21. Q. Peng, S. McMurry, and J. Coey, Axial magnetic field produced by axially and radially magnetized permanent rings, J. Magn. Magn. Mater. 268, 165 (2004).
  22. M. Berz, Computational aspects of optics design and simulation: cosy infinity, Nucl. Instrum. Methods Phys. Res., Sect. A 298, 473 (1990).
  23. K. Brown, A first- and second-order matrix theory for the design of beam transport systems and charged particle spectrometers, Technical Report No. SLAC-R-075, Stanford Linear Accelerator Center, 1982.
  24. O. Chubar, P. Elleaume, and J. Chavanne, A three-dimensional magnetostatics computer code for insertion devices, J. Synchrotron Radiat. 5, 481 (1998).
  25. General particle tracer, https://www.pulsar.nl/gpt/index.html.
  26. W. Grünberger, D. Hinz, A. Kirchner, K.-H. Müller, and L. Schultz, Hot deformation of nanocrystalline NdFeB alloys, J. Alloys Compd. 257, 293 (1997).
  27. T. Xu, S. D. Anderson, and R. J. England, Field characterization of axially and radially magnetized neodymium rings, in Proceedings of the IPAC-2024 (2024), 10.18429/JACoW-IPAC2024-THPS56.
  28. M. Venturini and A. J. Dragt, Accurate computation of transfer maps from magnetic field data, Nucl. Instrum. Methods Phys. Res., Sect. A 427, 387 (1999).
  29. M. Borland, elegant: A flexible SDDS-compliant code for accelerator simulation, Technical Report No. LS-287, Argonne National Laboratory, 2000, https://www.osti.gov/biblio/761286.
  30. D. Alesini, A. Battisti, M. Ferrario, L. Foggetta, V. Lollo, L. Ficcadenti, V. Pettinacci, S. Custodio, E. Pirez, P. Musumeci, and L. Palumbo, New technology based on clamping for high gradient radio frequency photogun, Phys. Rev. ST Accel. Beams 18, 092001 (2015).
  31. S. Weathersby, G. Brown, M. Centurion, T. Chase, R. Coffee, J. Corbett, J. Eichner, J. Frisch, A. Fry, M. Gühr et al., Mega-electron-volt ultrafast electron diffraction at SLAC National Accelerator Laboratory, Rev. Sci. Instrum. 86, 073702 (2015).
  32. Product webpage of AM-PMS, https://www.magnet4less.com/rare-earth-magnets-n45-3-4-in-od-x-1-4-in-id-x-1-4-in-neodymium-ring [accessed June 10, 2025].
  33. S. M. Lund, Nonlinear optics of solenoid magnets, in Proceedings of the IPAC-2015 (JACoW, Geneva, Switzerland, 2015), pp. 4048–4050.
  34. P. Denham and P. Musumeci, Space-charge aberrations in single-shot time-resolved transmission electron microscopy, Phys. Rev. Appl. 15, 024050 (2021).
  35. T. Xu, C. J. R. Duncan, P. Denham, B. H. Schaap, A. Kulkarni, D. Garcia, S. D. Anderson, P. Musumeci, and R. J. England, Dataset for PMS experiment at UCLA, (2024), https://drive.google.com/drive/folders/1Sdyk8rkQTHS4GN6BfjzMfRKAAoe28FGQ?usp=sharing.
  36. H. Brechna, 13. Field of a solenoid of finite cross-sectional area, in Problems and Solutions for Students, Vol. 8 of Methods in Experimental Physics, edited by L. Marton and W. Hornyak (Academic Press, New York, 1969), pp. 81–92.
