Two-and-a-half dimensional symplectic space-charge solver

Ji Qiang*

  • *Contact author: jqiang@lbl.gov
PDF

Phys. Rev. Accel. Beams 28, 114602 – Published 17 November, 2025

DOI: https://doi.org/10.1103/npx1-nclt

Abstract

The nonlinear space-charge effect plays a significant role in high-intensity accelerators and has been extensively studied using multiparticle tracking methods. In this paper, we present a novel 2.5-dimensional symplectic space-charge solver specifically designed for long beam bunches. We begin by detailing its application to a transverse Gaussian density distribution under open boundary conditions in a straight system, where a semianalytical expression is derived. We then demonstrate the solver’s adaptation to arbitrary distributions in open space, as well as within rectangular and round conducting pipes. Finally, we discuss the extension of this solver to circular accelerator systems. This study shows that the fast 2.5-dimensional solver can be a good approximation to the fully three-dimensional solver for long bunches in large circular accelerators.

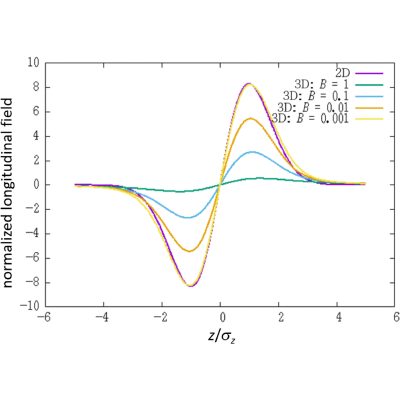

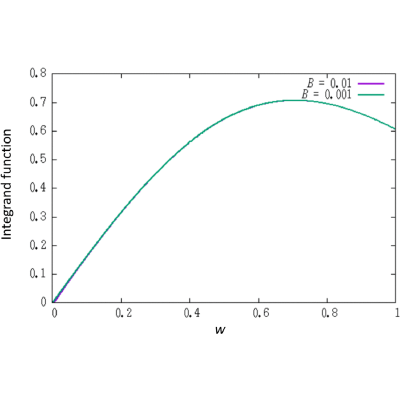

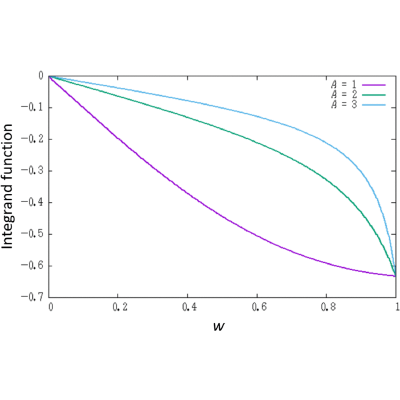

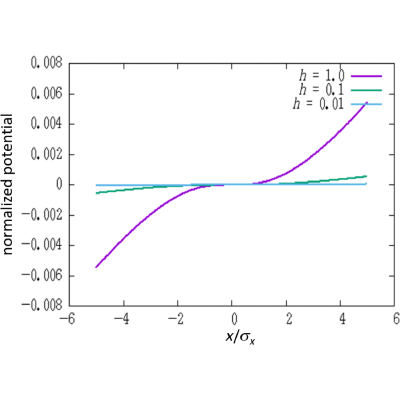

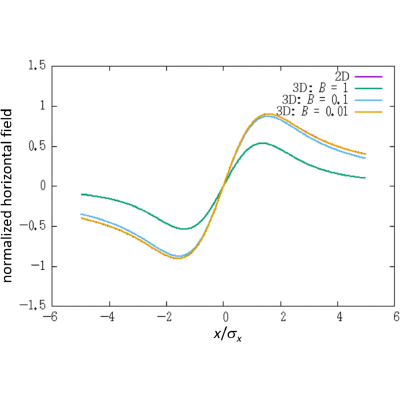

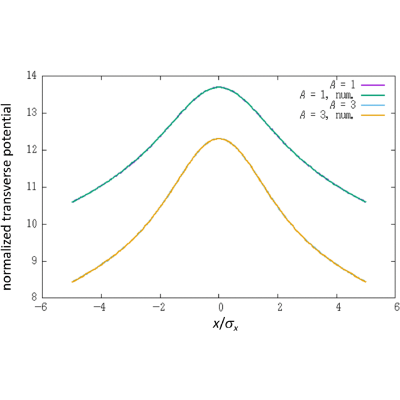

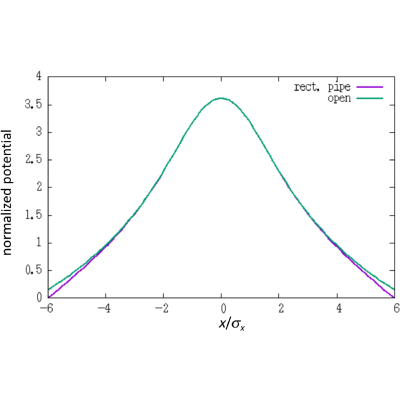

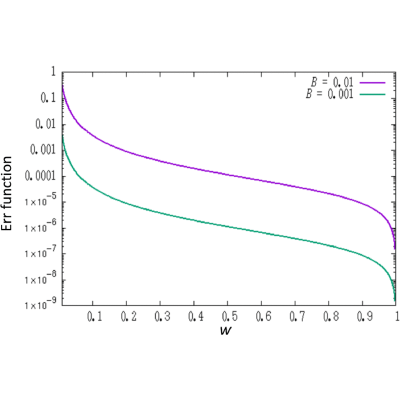

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. A. Friedman, D. P. Grote, and I. Haber, Three-dimensional particle simulation of heavy-ion fusion beams, Phys. Fluids B 4, 2203 (1992).
  2. S. Machida and M. Ikegami, Simulation of space charge effects in a synchrotron, AIP Conf. Proc. 448, 73 (1998).
  3. J. Qiang, R. D. Ryne, S. Habib, and V. Decyk, An object oriented parallel particle-in-cell code for beam dynamics simulation in linear accelerators, J. Comput. Phys. 163, 434 (2000).
  4. P. N. Ostroumov and K. W. Shepard, Correction of beamsteering effects in low-velocity superconducting quarterwave cavities, Phys. Rev. ST Accel. Beams 11, 030101 (2001).
  5. R. Duperrier, A radio frequency quadrupole code, Phys. Rev. ST Accel. Beams 3, 124201 (2000).
  6. J. D. Galambos, S. Danilov, D. Jeon, J. A. Holmes, D. K. Olsen, F. Neri, and M. Plum, Comparison of simulated and observed beam profile broadening in the proton storage ring and the role of space charge, Phys. Rev. ST Accel. Beams 3, 034201 (2000).
  7. G. Franchetti, I. Hofmann, M. Giovannozzi, M. Martini, and E. Metral, Space charge and octupole driven resonance trapping observed at the CERN Proton Synchrotron, Phys. Rev. ST Accel. Beams 6, 124201 (2003).
  8. J. Qiang, S. Lidia, R. D. Ryne, and C. Limborg-Deprey, Three-dimensional quasistatic model for high brightness beam dynamics simulation, Phys. Rev. ST Accel. Beams 9, 044204 (2006).
  9. J. Amundson, P. Spentzouris, J. Qiang, and R. Ryne, synergia: An accelerator modeling tool with 3-D space charge, J. Comput. Phys. 211, 229 (2006).
  10. https://amas.web.psi.ch/docs/opal/opal_user_guide-1.6.0.pdf.
  11. https://synergia.fnal.gov/.
  12. https://github.com/PyORBIT-Collaboration/py-orbit.
  13. A. Oftiger and S. Hegglin, Space charge modules for pyheadtail, in Proceedings of the HB2016 (2016), p. 124, https://proceedings.jacow.org/hb2016/papers/mopr025.pdf.
  14. M. Schwinzerl, R. De Maria, K. Paraschou, H. Bartosik, G. Iadarola, and A. Oeftiger, Optimising and extending a single-particle tracking library for high parallel performance, in Proceedings of the 12th International Particle Accelerator Conference (IPAC2021), Campinas, SP, Brazil (JACoW, Geneva, Switzerland, 2021), 10.18429/JACoW-IPAC2021-THPAB190.
  15. https://github.com/xsuite/xsuite.
  16. J. Qiang, Symplectic multiparticle tracking model for self-consistent space-charge simulation, Phys. Rev. Accel. Beams 20, 014203 (2017).
  17. J. Qiang, Symplectic particle-in-cell model for space-charge beam dynamics simulation, Phys. Rev. Accel. Beams 21, 054201 (2018).
  18. E. Forest and R. D. Ruth, Fourth-order symplectic integration, Physica (Amsterdam) 43D, 105 (1990).
  19. H. Yoshida, Construction of higher order symplectic integrators, Phys. Lett. A 150, 262 (1990).
  20. R. D. Ryne, Computational methods in accelerator physics, US particle accelerator class note (2012), https://uspas.fnal.gov/materials/09UNM/ComputationalMethods.pdf.
  21. J. Qiang and R. Gluckstern, Three-dimensional Poisson solver for a charged beam with large aspect ratio in a conducting pipe, Comput. Phys. Commun. 160, 120 (2004).
  22. A. W. Chao, Special Topics in Accelerator Physics (World Scientific Publishing Co. Pte. Ltd., Singapore, 2022).
  23. https://mathworld.wolfram.com/Euler-MascheroniConstant.html.
  24. M. Bassetti and G. A. Erskine, Closed expression for the electrical field of a two-dimensional Gaussian charge, Report No. CERN-ISR-TH-80-06, CERN, Switzerland, 1980.
  25. I. Hofmann, A. Oeftiger, and O. Boine-Frankenheim, Self-consistent long-term dynamics of space charge driven resonances in 2D and 3D, Phys. Rev. Accel. Beams 24, 024201 (2021).
  26. A. Oeftiger, O. Boine-Frankenheim, V. Chetvertkova, V. Kornilov, D. Rabusov, and S. Sorge, Simulation study of the space charge limit in heavy-ion synchrotrons, Phys. Rev. Accel. Beams 25, 054402 (2022).
  27. J. Qiang, M. Furman, and R. Ryne, A parallel particle-in–cell model for beam-beam interaction in high energy ring colliders, J. Comput. Phys. 198, 278 (2004).
  28. R. W. Hockney and J. W. Eastwood, Computer Simulation Using Particles (Adam Hilger, New York, 1988).
  29. D. Gottlieb and S. A. Orszag, Numerical Analysis of Spectral Methods: Theory and Applications, Society for Industrial and Applied Mathematics (1977), 10.1137/1.9781611970425.
  30. B. Fornberg, A Practical Guide to Pseudospectral Methods (Cambridge University Press, Cambridge, England, 1998).
  31. J. Qiang and R. D. Ryne, Parallel 3D Poisson solver for a charged beam in a conducting pipe, Comput. Phys. Commun. 138, 18 (2001).
