Analytical expression of a finite, long, conical canted-cosine-theta coil for particle collider interaction regions
Phys. Rev. Accel. Beams 28, 102401 – Published 27 October, 2025
DOI: https://doi.org/10.1103/n8tc-1334
Abstract

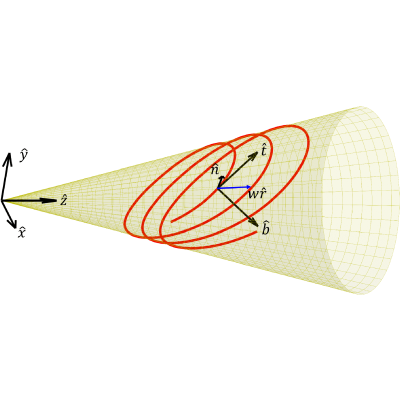

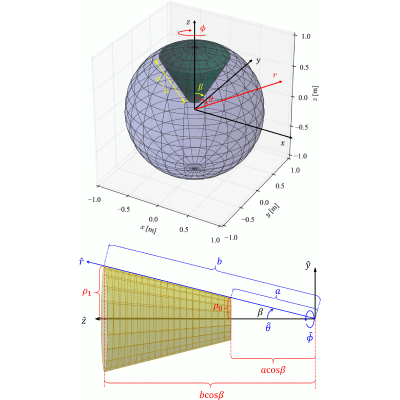

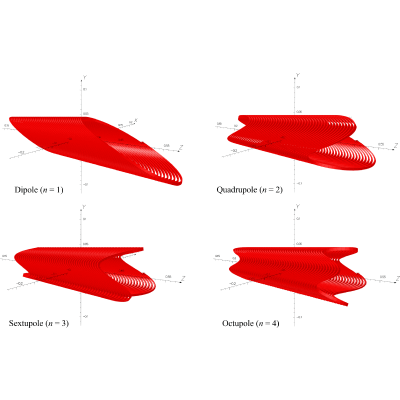

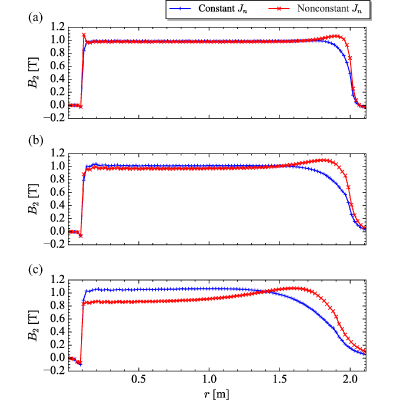

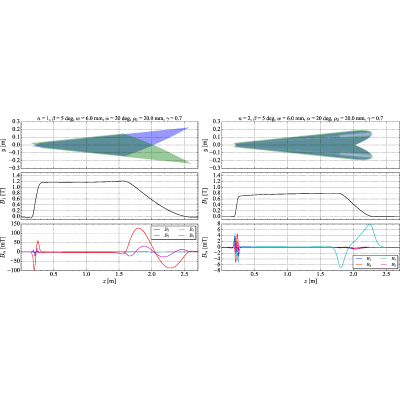

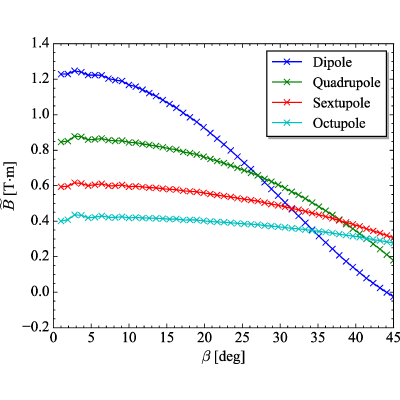

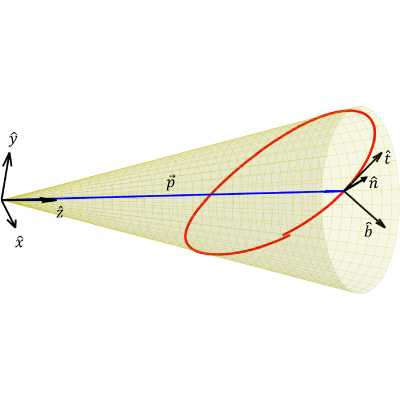

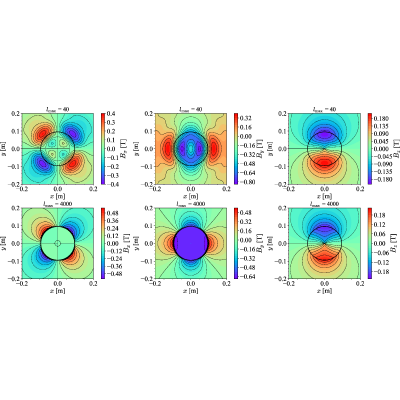

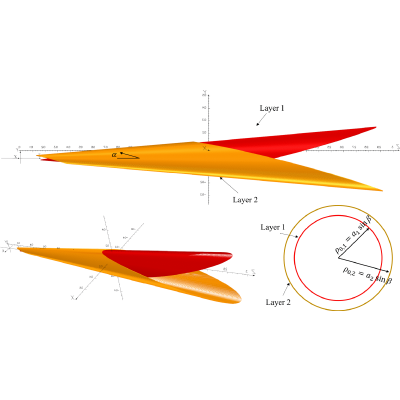

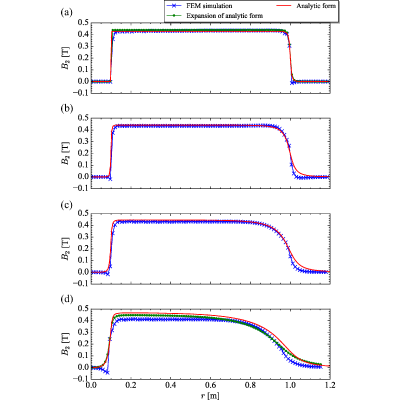

Magnets in the accelerator interaction region (IR) present significant challenges because of high field requirements and limited available space. Conical-shaped magnets offer advantages in these environments by allowing closer placement to the interaction point while maintaining clearance from synchrotron radiation. Interestingly, numerical studies have shown that conical canted-cosine-theta (CCT) designs produce a constant field distribution along the axial direction in the IR quadrupoles for the Electron-Ion Collider (EIC) at Brookhaven National Laboratory. However, the field harmonics generated by conical CCT windings are not yet fully understood. This paper presents an analytical approach to describe the magnetic field produced by a conical surface current and proposes a method for designing conical CCT magnets for accelerator applications. First, we begin with a surface current sheet having a general cosine-theta distribution in spherical coordinates and solve the vector potential using the Green’s function. The magnetic fields generated by the conical current sheet are expressed using associated Legendre polynomials. These results are then related to circular field harmonics and integral field harmonics for designing a coil that produces a pure multipole field. Next, a single layer of the conical CCT winding path is produced based on the cosine-theta current distribution. Finally, the magnetic field quality of dipole and quadrupole conical CCT coils with multiple layers is verified using the Biot-Savart law.
Physics Subject Headings (PhySH)
Article Text
References (21)
- H. Witte et al., The interaction region of the electron-ion collider EIC, in Proceedings of the 12th International Particle Accelerator Conference, IPAC-2021, Campinas, SP, Brazil (JACoW, Geneva, Switzerland, 2021), pp. 2574–2577, https://proceedings.jacow.org/ipac2021/doi/JACoW-IPAC2021-WEPAB002.html.
- M. Koratzinos, The FCC-ee interaction region magnet design, in Proceedings of eeFACT2016, Daresbury, UK (2016), pp. 57–60, arXiv:1607.05446.
- N. Ohuchi et al., SuperKEKB beam final focus superconducting magnet system, Nucl. Instrum. Methods Phys. Res., Sect. A 1021, 165930 (2022).
- B. Parker et al., Superconducting corrector IR magnet production for SuperKEKB, in Proceedings of the 4th International Particle Accelerator Conference, IPAC-2013, Pasade, Shanghai, China (JACoW, Geneva, Switzerland, 2013), pp. 1241–1243.
- B. Parker et al., The SuperKEKB interaction region corrector magnets, in Proceedings of International Particle Accelerator Conference, IPAC-2016, Busan, Korea (JACoW, Geneva, Switzerland, 2016), pp. 1193–1195.
- B. Parker et al., Test of a model superconducting magnet for the HERA ep interaction regions, IEEE Trans. Appl. Supercond. 10, 272 (2000).
- P. Wanderer et al., Completion of superconducting magnet production at BNL for the HERA luminosity upgrade, IEEE Trans. Appl. Supercond. 12, 305 (2002).
- D. Meyer and R. Flasck, A new configuration for a dipole magnet for use in high energy physics applications, Nucl. Instrum. Methods 80, 339 (1970).
- S. Caspi et al., Canted-cosine-theta magnet (CCT)—A concept for high field accelerator magnets, IEEE Trans. Appl. Supercond. 24, 4001804 (2014).
- H. Witte, B. Parker, and R. Palmer, Design of a tapered final focusing magnet for eRHIC, IEEE Trans. Appl. Supercond. 29, 4004105 (2019).
- P. Xu, H. Witte, S. Notaro, and Y. Bai, Structural analysis of multilayer tapered canted-cosine-theta superconducting magnet for the interaction region of electron ion collider, IEEE Trans. Appl. Supercond. 35, 4101405 (2019).
- QST and Toshiba achieve major breakthrough in greatly downsizing pencil beam scanning system for heavy-ion therapy, https://www.qst.go.jp/soshiki/4/1077.html (2018).
- Y. Iwata et al., Design of a superconducting rotating gantry for heavy-ion therapy, Phys. Rev. ST Accel. Beams 15, 044701 (2012).
- Y. Iwata et al., Design of a compact superconducting accelerator for advanced heavy-ion therapy, Nucl. Instrum. Methods Phys. Res., Sect. A 1053, 168312 (2023).
- T. Miyatake et al., Design study of conical-canted-cosine-theta scanning magnet for heavy ion therapy, IEEE Trans. Appl. Supercond. (to be published).
- S. Caspi, L. Brouwer, L. G. Fajardo, and Y. Yang, A conical accelerator magnet with unique CCT properties, IEEE Trans. Appl. Supercond. 35, 4100504 (2025).
- J. D. Jackson, Classical Electrodynamics (John Wiley & Sons, Inc., New York, 2007).
- M. Eshagh, Non-singular expressions for the vector and the gradient tensor of gravitation in a geocentric spherical frame, Comput. Geosci. 34, 1762 (2008).
- K. H. Mess, S. Wolff, and P. Schmuser, Superconducting Accelerator Magnets (World Scientific, Singapore, 1996).
- L. Brouwer, Producing circular field harmonics inside elliptic magnet apertures with superconducting canted-cosine-theta coils, Phys. Rev. Accel. Beams 27, 022402 (2024).
- L. Brouwer, Canted-cosine-theta superconducting accelerator magnets for high energy physics and ion beam cancer therapy, Ph.D. Thesis, University of California, Berkeley, 2015.
