Time-resolved space-charge compensation studies for pulsed and matched proton beam in a low-energy transport line

Emre Cosgun and Min Sup Hur

Seokho Moon and Donghwan Kim

Moses Chung*

  • *Contact author: moses@postech.ac.kr
PDF

Phys. Rev. Accel. Beams 28, 090102 – Published 25 September, 2025

DOI: https://doi.org/10.1103/l8v5-ch9z

Abstract

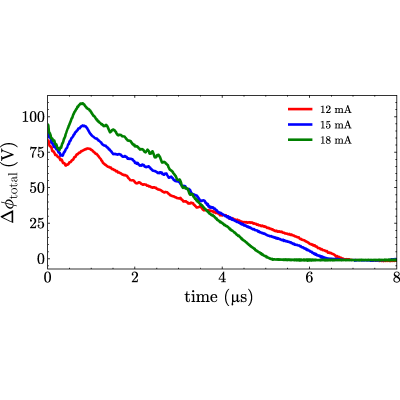

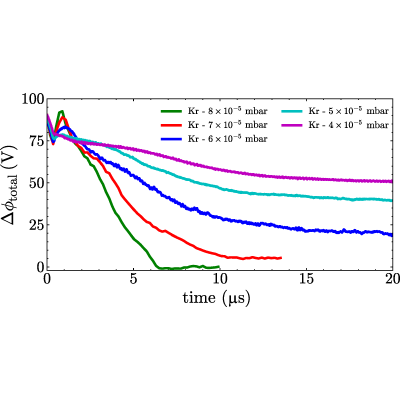

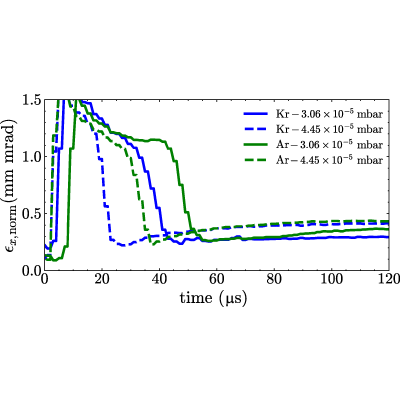

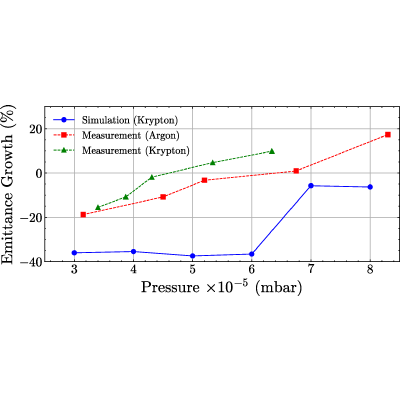

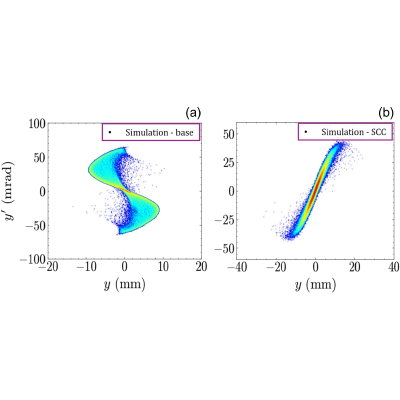

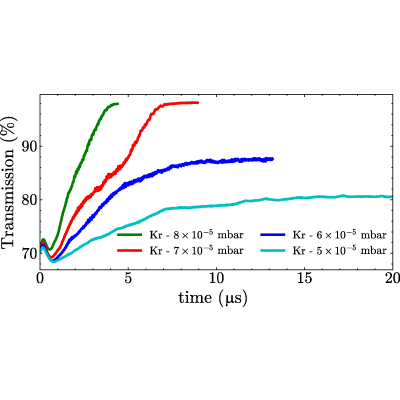

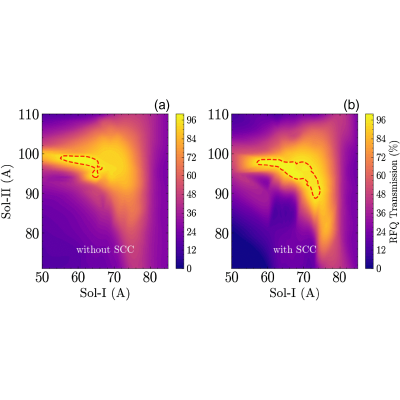

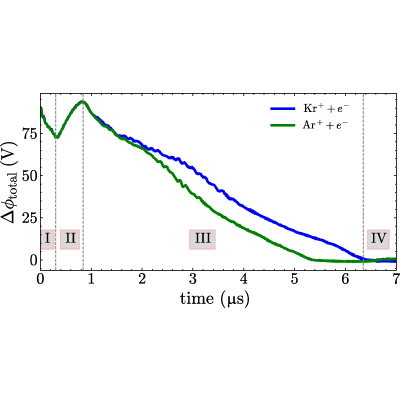

In low-energy beam transport of pulsed, high-perveance ion beams operating under neutralized space-charge conditions, understanding the time required for the compensation process to develop—known as the build-up time—is critically important for ensuring efficient beam transmission and maintaining beam quality. This study presents a comprehensive investigation into the dynamics and optimization of space-charge compensation (SCC) in the low-energy beam transport line of a high-perveance proton beam, integrating numerical simulations with time-resolved experimental measurements. A detailed 3D numerical simulation has been developed, which takes into account both secondary electron and ion dynamics to evaluate the temporal evolution of the beam potential and its dependence on various parameters. Additionally, experimental measurements complement the numerical results, providing validation of SCC dynamics. These measurements analyze the effects of injected gas properties, pressure levels, and beam current on build-up time, while also considering nonlinear space-charge effects that influence SCC efficiency and the beam’s transverse emittance evolution. A correlation between SCC and radio-frequency quadrupole matching conditions is also examined, demonstrating the necessity of adjusting solenoid magnet settings to maintain optimal transmission efficiency.

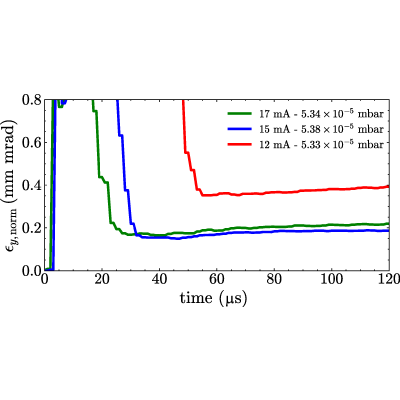

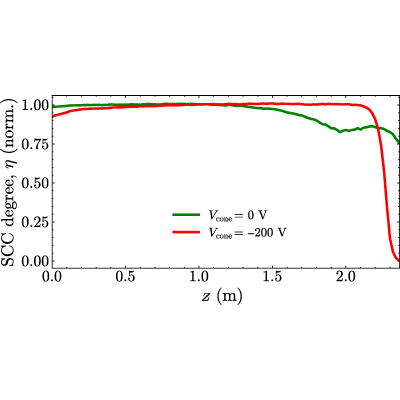

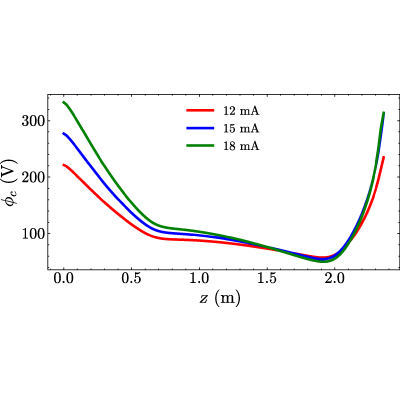

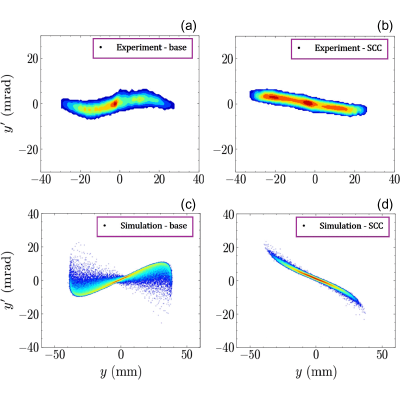

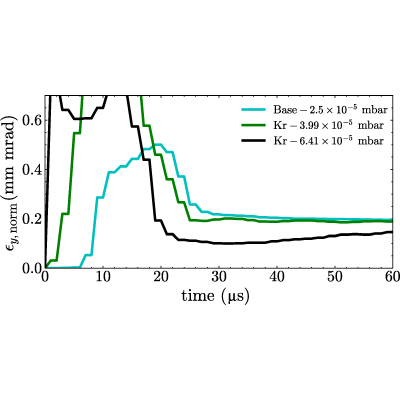

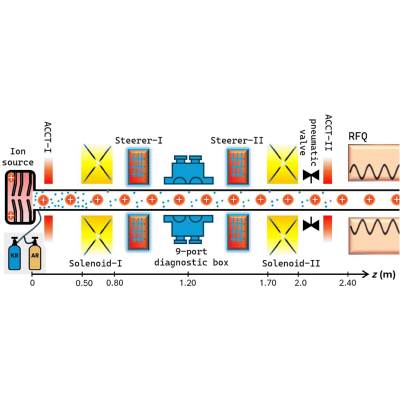

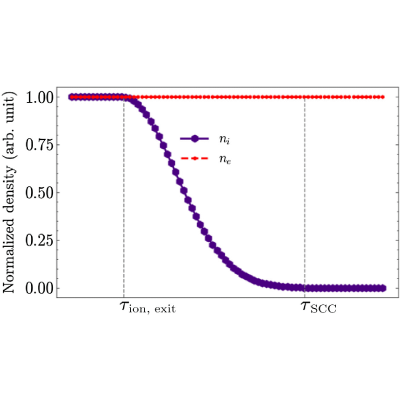

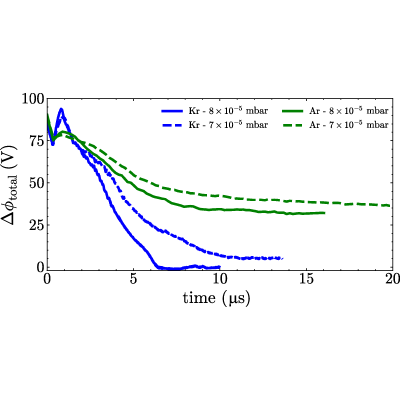

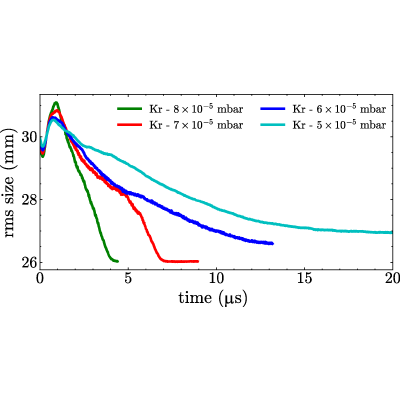

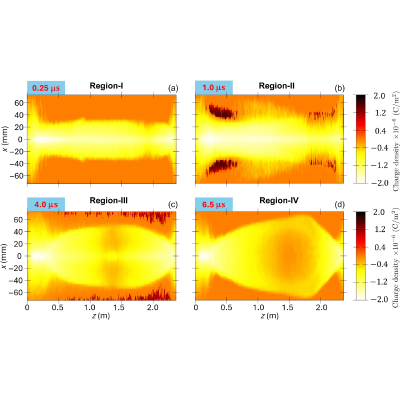

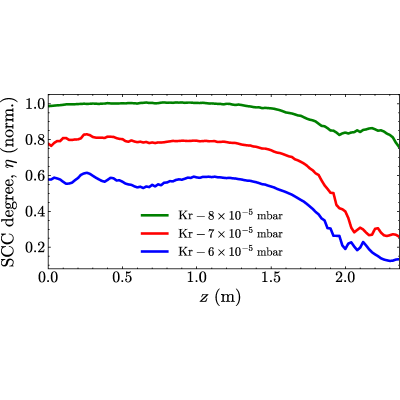

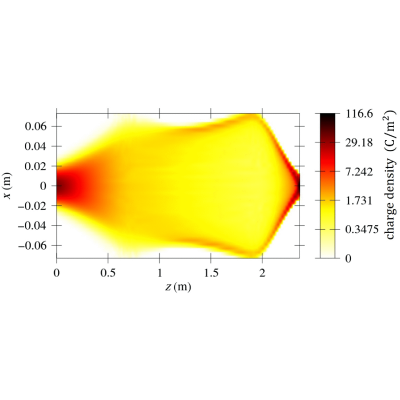

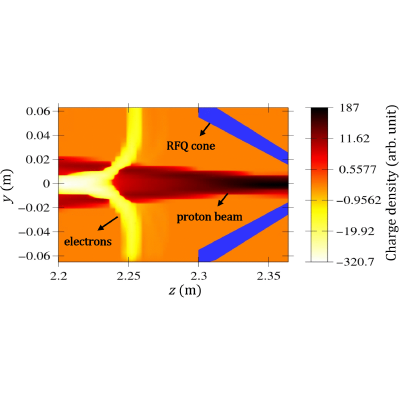

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (37)

  1. R. Gobin, P.-Y. Beauvais, R. Ferdinand, P.-A. Leroy, L. Celona, G. Ciavola, and S. Gammino, Improvement of beam emittance of the CEA high intensity proton source SILHI, Rev. Sci. Instrum. 70, 2652 (1999).
  2. P. Beauvais, R. Ferdinand, R. Gobin, J. Lagniel, P.-A. Leroy, L. Celona, G. Ciavola, S. Gammino, B. Pottin, and J. Sherman, Emittance improvement of the electron cyclotron resonance high intensity light ion source proton beam by gas injection in the low energy beam transport, Rev. Sci. Instrum. 71, 1413 (2000).
  3. A. Jakob, H. Klein, A. Lakatos, O. Meusel, and J. Pozinski, Time-resolved investigation of the compensation process of pulsed ion beams, in Proceedings of the 1999 Particle Accelerator Conference (IEEE, 1999), Vol. 3, pp. 1836–1838, https://cds.cern.ch/record/553591/files/tup146.pdf.
  4. A. Jakob, P. Y. Beauvais, R. Gobin, H. Klein, J. L. Lemaire, P. A. Leroy, and J. Pozimski, Time-resolving diagnostic of the compensation process of pulsed ion beams at high-intensity light ion source, Rev. Sci. Instrum. 71, 1107 (2000).
  5. A. Jakob, H. Klein, A. Lakatos, J. Pozimski, and L. Wicke, Investigation of the rise of compensation of high perveance ion beams using a time-resolving ion energy spectrometer, in Proceedings of the 6th European Particle Accelerator Conference (EPAC 1998) (2005), https://accelconf.web.cern.ch/e98/PAPERS/WEP07A.PDF.
  6. T. Weis, R. Dölling, P. Gross, H. Klein, and J. Wiegand, Space-charge neutralization in low-energy beam lines, Nucl. Instrum. Methods Phys. Res., Sect. A 278, 224 (1989).
  7. I. Soloshenko, Physics of ion beam plasma and problems of intensive ion beam transportation (invited), Rev. Sci. Instrum. 67, 1646 (1996).
  8. I. Soloshenko, Space charge compensation of technological ion beams, in Proceedings of the 18th International Symposium on Discharges and Electrical Insulation in Vacuum (ISDEIV) (1998), Vol. 2, pp. 675–678, https://ieeexplore.ieee.org/document/738839.
  9. D. Winklehner, D. Leitner, D. Cole, G. Machicoane, and L. Tobos, Space-charge compensation measurements in electron cyclotron resonance ion source low energy beam transport lines with a retarding field analyzer, Rev. Sci. Instrum. 85, 02A739 (2014).
  10. D. Winklehner and D. Leitner, A space charge compensation model for positive DC ion beams, J. Instrum. 10, T10006 (2015).
  11. M. D. Gabovich, Ion-beam plasma and the propagation of intense compensated ion beams, Phys. Usp. 20, 134 (1977).
  12. D. Gabor, A space-charge lens for the focusing of ion beams, Nature (London) 160, 89 (1947).
  13. O. Meusel, M. Droba, D. Noll, K. Schulte, P. P. Schneider, and C. Wiesner, Beam transport and space charge compensation strategies, Rev. Sci. Instrum. 87, 02B937 (2016).
  14. V. Shiltsev, New possibilities for beam-beam and space-charge compensation: MCP gun and electron columns, in Proceedings of the 2007 IEEE Particle Accelerator Conference (PAC) (IEEE, 2007), pp. 1159–1160, https://ieeexplore.ieee.org/document/4441015.
  15. C. S. Park, B. Freemire, M. Chung, G. Stancari, and E. Stern, Progress in space charge compensation using electron columns, J. Instrum. 16, P03048 (2021).
  16. A. Oeftiger and O. Boine-Frankenheim, Pulsed electron lenses for space charge mitigation, Phys. Rev. Lett. 132, 175001 (2024).
  17. P. W. Allison, J. D. Sherman, and D. B. Holtkamp, An emittance scanner for intense low-energy ion beams, IEEE Trans. Nucl. Sci. 30, 2204 (1983).
  18. M. Reiser, Theory and Design of Charged Particle Beams, 2nd ed. (John Wiley & Sons, 2008), 10.1002/9783527622047.
  19. A. Holmes, Theoretical and experimental study of space charge in intense ion beams, Phys. Rev. A 19, 389 (1979).
  20. M. E. Rudd, Y.-K. Kim, D. H. Madison, and J. W. Gallagher, Electron production in proton collisions: Total cross sections, Rev. Mod. Phys. 57, 965 (1985).
  21. M. E. Rudd, Y.-K. Kim, D. H. Madison, and T. J. Gay, Electron production in proton collisions with atoms and molecules: Energy distributions, Rev. Mod. Phys. 64, 441 (1992).
  22. E. Cosgun, S. Moon, D. Kim, and M. Chung, Studies of space-charge compensation of positive ions by creating time-dependent secondary electrons in low-energy beam transport line, in Proceedings of the 15th International Particle Accelerator Conference (IPAC ’24), Nashville, TN USA (JACoW, Geneva, Switzerland, 2024), pp. 201–203, 10.18429/JACoW-IPAC2024-MOPC61.
  23. N. Chauvin, O. Delferrière, R. Duperrier, R. Gobin, P. A. P. Nghiem, and D. Uriot, Transport of intense ion beams and space charge compensation issues in low energy beam lines, Rev. Sci. Instrum. 83, 02B320 (2012).
  24. A. BenIsmail, R. Duperrier, D. Uriot, and N. Pichoff, Space charge compensation studies of hydrogen ion beams in a drift section, Phys. Rev. ST Accel. Beams 10, 070101 (2007).
  25. C. A. Valerio-Lizarraga, I. Leon-Monzon, and R. Scrivens, Negative ion beam space charge compensation by residual gas, Phys. Rev. ST Accel. Beams 18, 080101 (2015).
  26. S. X. Peng, A. L. Zhang, H. T. Ren, T. Zhang, J. F. Zhang, Y. Xu, J. M. Wen, W. B. Wu, Z. Y. Guo, and J. E. Chen, Study on space charge compensation of low energy high intensity ion beam in Peking University, in Proceedings of the 57th ICFA Advanced Beam Dynamics Workshop on High-Intensity and High-Brightness Hadron Beams (HB2016), Malmö, Sweden (JACoW, Geneva, Switzerland, 2016), pp. 453–457, 10.18429/JACoW-HB2016-WEPM6Y01.
  27. F. Gérardin, M. Baylac, D. Bondoux, F. Bouly, A. Chancé, N. Chauvin, O. Napoly, N. Pichoff, D. Uriot et al., Space charge compensation in low energy beam lines, in Proceedings of the 7th International Particle Accelerator Conference (IPAC’16), Busan, Korea (JACoW, Geneva, Switzerland, 2016), pp. 3055–3057, 10.18429/JACoW-IPAC2016-WEPOY033.
  28. C. A. Valerio-Lizarraga, J.-B. Lallement, I. Leon-Monzon, J. Lettry, Ø. Midttun, and R. Scrivens, Space charge compensation in the Linac4 low energy beam transport line with negative hydrogen ions, Rev. Sci. Instrum. 85, 02A505 (2014).
  29. T. Kalvas, O. Tarvainen, T. Ropponen, O. Steczkiewicz, J. Ärje, and H. Clark, ibsimu: A three-dimensional simulation software for charged particle optics, Rev. Sci. Instrum. 81, 02B703 (2010).
  30. N. Chauvin, Space-charge effect, arXiv:1410.7991.
  31. D. Noll, R. A. Baron, C. S. Derrez, E. M. Donegani, M. Eshraqi, F. Grespan, H. Hassanzadegan, B. Jones, Y. Levinsen, N. Milas, R. Miyamoto, C. Plostinar, A. Garcia Sosa, and R. Zeng, First beam matching and transmission studies on the ESS RFQ, in Proceedings of the 31st International Linear Accelerator Conference (LINAC’22) (JACoW, Geneva, Switzerland, 2022), pp. 414–417, 10.18429/JACoW-LINAC2022-TUPOPA04.
  32. E. Schubert, J. Sander, M. Ester, H.-P. Kriegel, and X. Xu, DBSCAN revisited, revisited: Why and how you should (still) use DBSCAN, ACM Trans. Database Syst. 42, 19 (2017).
  33. A. Jakob, R. Dölling, K. Reidelbach, J. Pozimski, and H. Klein, Investigation of the space-charge compensation process of ion beams using a time-resolving ion energy spectrometer, Nucl. Instrum. Methods Phys. Res., Sect. A 415, 490 (1998).
  34. Y. Chen and Z. Huang, Nonlinear space charge effects and emittance growth in LINAC, Chin. Phys. C 23, 1231 (1999), https://hepnp.ihep.ac.cn/en/article/id/f4f2c55d-ac34-418f-9d7d-50b4d670c928.
  35. L. R. Evans and D. J. Warner, Space-charge neutralisation of intense charged particle beams : Some theoretical considerations, Technical Report No. CERN-MPS-LIN-71-2, CERN, Geneva, 1971, https://cds.cern.ch/record/2853786.
  36. M. Gryziński, Classical theory of electronic and ionic inelastic collisions, Phys. Rev. 115, 374 (1959).
  37. A. Kramida, Y. Ralchenko, J. Reader, and N. A. Team, NIST atomic spectra database (ver. 5.12), 2024, available at https://physics.nist.gov/asd [accessed: 2025-05-10].
