Dual-pulse micronozzle acceleration of sub-GeV-class protons

D. Pan and M. Murakami*

  • *Contact author: murakami.masakatsu.ile@osaka-u.ac.jp
PDF

Phys. Rev. Accel. Beams 29, 073601 – Published 13 July, 2026

DOI: https://doi.org/10.1103/kjnr-rfy9

Abstract

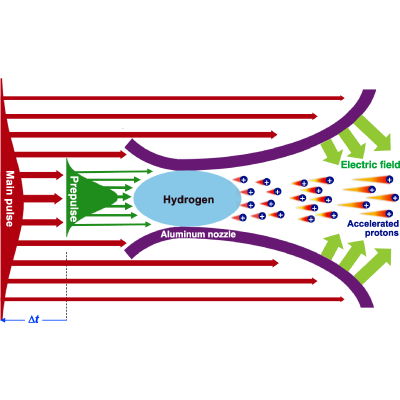

We propose a dual-pulse micronozzle acceleration scheme that enables phase-locked acceleration of laser-driven protons, mitigating the conventional trade-off between maximum energy and laser-to-proton conversion efficiency. By introducing a delay-tuned synchronization window, a compact proton front generated by a shaping prepulse is injected into, and remains copropagating with, a quasistatic axial electric field driven by a delayed main pulse in a micronozzle cavity. This phase locking maintains the relative phase between the proton bunch and the accelerating field over an extended interaction length and duration, thereby suppressing thermal debunching and prolonging the effective acceleration stage. At main-pulse intensities of the order of 1021  W/cm2, sub-GeV-class proton cutoffs are achieved with a total laser-to-proton conversion efficiency of ∼20%. Notably, the efficiency of the application-relevant high-energy component exceeds ∼13% for protons with energies Ep>100  MeV, indicating preferential energy loading into a compact, directed proton population rather than quasithermal sheath expansion. Comparative simulations with an unconfined dual-pulse hydrogen-rod target demonstrate that this performance gain arises from the combined effects of temporal synchronization and geometric confinement, which sustain a long-lived axial accelerating channel advected downstream with the proton front. An analytical model for the synchronization condition is developed and validated against the simulation data. Three-dimensional particle-in-cell simulations support that the phase-locking mechanism and the associated spectral hardening are preserved in 3D slit-nozzle geometries, with the confined target yielding cutoff energies ∼60% higher than an unconfined hydrogen rod under identical laser conditions. These results identify phase-locked acceleration in a confined laser-driven structure as a practical design principle for compact, high-yield sub-GeV-class proton drivers, with direct relevance to secondary-particle sources such as pion and muon production, accelerator-driven systems, and laser-based neutron sources.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (35)

  1. H. Daido, M. Nishiuchi, and A. S. Pirozhkov, Review of laser-driven ion sources and their applications, Rep. Prog. Phys. 75, 056401 2012.
  2. A. Macchi, M. Borghesi, and M. Passoni, Ion acceleration by superintense laser–plasma interaction, Rev. Mod. Phys. 85, 751 (2013).
  3. S. C. Wilks, A. B. Langdon, T. E. Cowan, M. Roth, M. Singh, S. Hatchett, M. H. Key, D. Pennington, A. MacKinnon, and R. A. Snavely, Energetic proton generation in ultra-intense laser–solid interactions, Phys. Plasmas 8, 542 (2001).
  4. R. A. Snavely et al., Intense high-energy proton beams from petawatt-laser irradiation of solids, Phys. Rev. Lett. 85, 2945 (2000).
  5. M. Murakami and M. M. Basko, Self-similar expansion of finite-size non-quasi-neutral plasmas into vacuum: Relation to the problem of ion acceleration, Phys. Plasmas 13, 012105 (2006).
  6. B. M. Hegelich, B. J. Albright, J. Cobble, K. Flippo, S. Letzring, M. Paffett, H. Ruhl, J. Schreiber, R. K. Schulze, and J. C. Fernández, Laser acceleration of quasi-monoenergetic MeV ion beams, Nature (London) 439, 441 (2006).
  7. A. Henig et al., Radiation-pressure acceleration of ion beams driven by circularly polarized laser pulses, Phys. Rev. Lett. 103, 245003 (2009).
  8. F. Fiuza, A. Stockem, E. Boella, R. A. Fonseca, L. O. Silva, D. Haberberger, S. Tochitsky, C. Gong, W. B. Mori, and C. Joshi, Laser-driven shock acceleration of monoenergetic ion beams, Phys. Rev. Lett. 109, 215001 (2012).
  9. A. V. Kuznetsov, T. Z. Esirkepov, F. F. Kamenets, and S. V. Bulanov, Efficiency of ion acceleration by a relativistically strong laser pulse in an underdense plasma, Plasma Phys. Rep. 27, 211 (2001).
  10. L. Yin, B. J. Albright, B. M. Hegelich, and J. C. Fernández, GeV laser ion acceleration from ultrathin targets: The laser break-out afterburner, Laser Part. Beams 24, 291 (2006).
  11. L. Yin, B. J. Albright, D. Jung, R. C. Shah, S. Palaniyappan, K. J. Bowers, A. Henig, J. C. Ferńndez, and B. M. Hegelich, Break-out afterburner ion acceleration in the longer laser pulse length regime, Phys. Plasmas 18, 063103 (2011).
  12. K. Nishihara, H. Amitani, M. Murakami, S. V. Bulanov, and T. Z. Esirkepov, High energy ions generated by laser driven Coulomb explosion of cluster, Nucl. Instrum. Methods Phys. Res., Sect. A 464, 98 (2001).
  13. M. Murakami and M. Tanaka, Efficient generation of quasimonoenergetic ions by Coulomb explosions of optimized nanostructured clusters, Phys. Plasmas 16, 103108 (2009).
  14. A. Pukhov, Three-dimensional simulations of ion acceleration from a foil irradiated by a short-pulse laser, Phys. Rev. Lett. 86, 3562 (2001).
  15. C. D. Bowman et al., Nuclear energy generation and waste transmutation using an accelerator-driven intense thermal neutron source, Nucl. Instrum. Methods Phys. Res., Sect. A 320, 336 (1992).
  16. J. Strait, N. V. Mokhov, and S. I. Striganov, Towards the optimal energy of the proton driver for a neutrino factory and muon collider, Phys. Rev. ST Accel. Beams 13, 111001 (2010).
  17. T. Toncian et al., Ultrafast laser-driven microlens to focus and energy-select mega-electron volt protons, Science 312, 410 (2006).
  18. K. Quinn et al., Laser-driven ultrafast field propagation on solid surfaces, Phys. Rev. Lett. 102, 194801 (2009).
  19. A. Zigler et al., 5.5–7.5 MeV proton generation by a moderate-intensity ultrashort-pulse laser interaction with H2O nanowire targets, Phys. Rev. Lett. 106, 134801 (2011).
  20. H. C. Wang, S. M. Weng, M. Murakami, Z. M. Sheng, M. Chen, Q. Zhao, and J. Zhang, Efficient and stable proton acceleration by irradiating a two-layer target with a linearly polarized laser pulse, Phys. Plasmas 24, 093117 (2017).
  21. A. Ting et al., Multi-pulse laser driven plasma bubble dynamics and trapping, AIP Conf. Proc. 1812, 020001 (2017).
  22. M. Garten, S. S. Bulanov, S. Hakimi, L. Obst-Huebl, C. E. Mitchell, C. B. Schroeder, E. Esarey, C. G. R. Geddes, J.-L. Vay, and A. Huebl, Multi-pulse laser-driven ion acceleration, Phys. Rev. Res. 6, 033148 (2024).
  23. S. V. Bulanov, E. Y. Echkina, T. Z. Esirkepov, I. N. Inovenkov, M. Kando, F. Pegoraro, and G. Korn, Oncological hadrontherapy with laser ion accelerators, Phys. Rev. Lett. 104, 135003 (2010).
  24. D. Haberberger, S. Tochitsky, F. Fiuza, C. Gong, R. A. Fonseca, L. O. Silva, W. B. Mori, and C. Joshi, Collisionless shocks in laser-produced plasma generate monoenergetic high-energy proton beams, Nat. Phys. 8, 95 (2012).
  25. A. V. Brantov, E. A. Govras, V. Y. Bychenkov, and W. Rozmus, Ion energy scaling under optimum conditions of laser plasma acceleration from solid density targets, Phys. Rev. Lett. 116, 085004 (2016).
  26. S. S. Bulanov, E. Esarey, C. B. Schroeder, S. V. Bulanov, T. Z. Esirkepov, M. Kando, F. Pegoraro, and W. P. Leemans, Accelerating protons to therapeutic energies with ultraintense, ultraclean, and ultrashort laser pulses, Phys. Plasmas 23, 056703 (2016).
  27. B. Liu, M. Shi, M. Zepf, B. Lei, and D. Seipt, Generating overcritical dense relativistic electron beams via self-matching resonance acceleration, Phys. Rev. Lett. 129, 274801 (2022).
  28. M. Murakami, D. Balusu, S. Maruyama, Y. Murakami, and B. Ramakrishna, Generation of giga-electron-volt proton beams by micronozzle acceleration, Sci. Rep. 15, 19112 (2025).
  29. T. Ditmire, J. Zweiback, V. P. Yanovsky, T. E. Cowan, G. Hays, and K. B. Wharton, Nuclear fusion from explosions of femtosecond laser-heated deuterium clusters, Nature (London) 398, 489 (1999).
  30. K. Krushelnick et al., Multi-MeV ion generation via high-intensity laser interactions with underdense plasmas, Phys. Rev. Lett. 83, 737 (1999).
  31. R. Sha, J.-H. Cheng, D.-A. Li, Y.-S. Huang, J. Zhao, Y.-T. Hu, D.-Z. Zhang, Y.-B. Wu, and T.-P. Yu, Dense short muon source based on laser-ion accelerators, Eur. Phys. J. A 58, 249 (2022).
  32. A. Yogo, Y. Arikawa, Y. Abe, S. R. Mirfayzi, T. Hayakawa, K. Mima, and R. Kodama, Advances in laser-driven neutron sources and applications, Eur. Phys. J. A 59, 191 (2023).
  33. F. Canova, I. Cohen, L. A. Gizzi, G. Mourou, K. Osvay, A. Necas, V. Romanello, S. Galès, I. Pomerantz, and J. Wheeler, High-power laser drivers and fast neutron sources towards green energy applications, High Power Laser Sci. Eng. 13, e79 (2025).
  34. T. D. Arber et al., Contemporary particle-in-cell approach to laser-plasma modelling, Plasma Phys. Controlled Fusion 57, 113001 (2015).
  35. P. Mora, Plasma expansion into a vacuum, Phys. Rev. Lett. 90, 185002 (2003).
