Performance degradation induced by different forms of carbon contamination in superconducting rf cavities and their recovery strategies

Tongtong Zhu1,2,*, Andong Wu1,3,*,†, Yuan He1,3,‡, Shichun Huang1,3, Zongheng Xue1, Chunlong Li1, Hao Guo1, Pingran Xiong1, Tiancai Jiang1,3 et al.

Qingwei Chu1,3, Didi Luo1,3, Ziqin Yang1,3, Teng Tan1,3, Mengxin Xu1,3, Zhijun Wang1,3, Shenghu Zhang1,3, Kun Zhang2, and Hongwei Zhao1,3

  • *These authors contributed equally to this work.
  • †Contact author: antonwoo@impcas.ac.cn
  • ‡Contact author: hey@impcas.ac.cn
PDF

Phys. Rev. Accel. Beams 28, 123101 – Published 23 December, 2025

DOI: https://doi.org/10.1103/k7bz-sf3f

Abstract

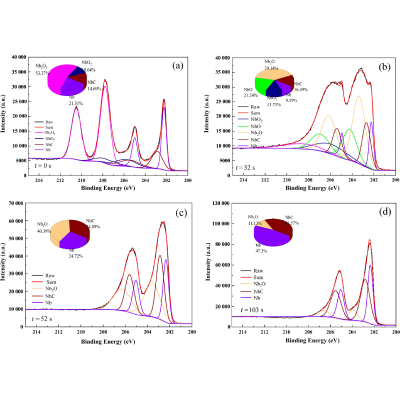

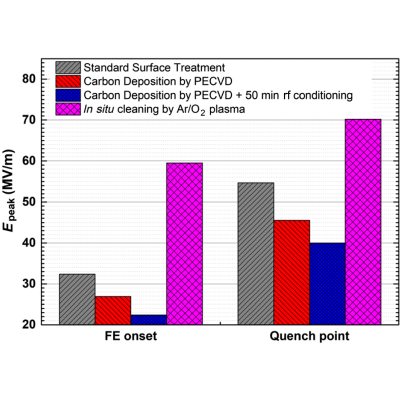

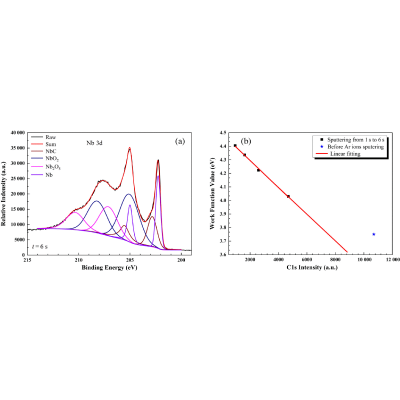

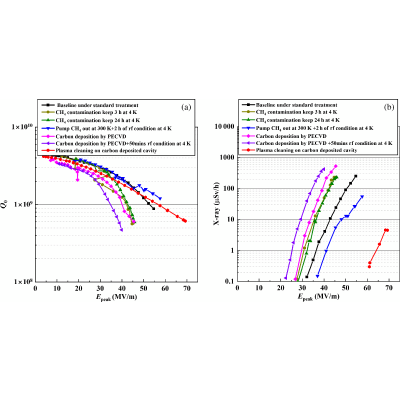

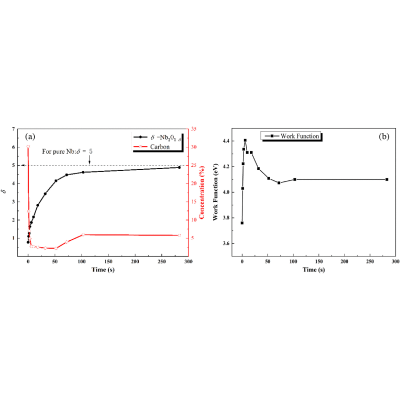

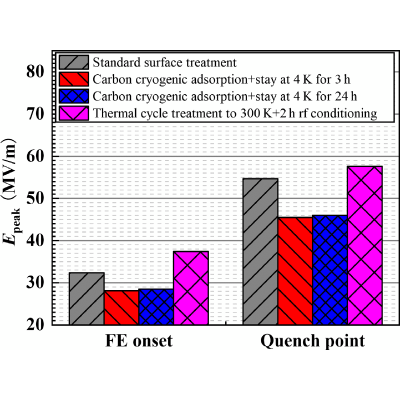

The performance degradation caused by carbon contaminants has become one of the significant obstacles to the long-term, high-gradient, stable operation of the SRF cavities. This paper investigates the sources and effects of different forms of carbon contamination and recovery strategies through experiments on niobium samples and a 162.5 MHz half-wave SRF cavity. Our findings reveal that adventitious carbon and oxides are the primary chemical compounds on the niobium surface, with the work function decreasing linearly as carbon content increases. Additionally, it was observed that carbides can form through the chemical deposition of residual carbon-containing gas in a vacuum under the action of argon ions. The adsorption and deposition of carbon-containing gas molecules reduce surface work function, thereby lowering the field emission onset and quench point of the cavity. However, the combination of thermal cycling and rf conditioning facilitates the desorption of adsorbed gas molecules, leading to a full recovery of cavity performance. In contrast, carbon deposition forms strong chemical bonds with the cavity surface, necessitating more intensive removal techniques. We demonstrate that plasma cleaning effectively eliminates carbon contamination and restores cavity performance. Inspired by the formation of NbC in niobium sample experiments, we propose that, during long-term SRF cavity operation, carbides primarily originate from the chemical deposition of carbon-containing gas molecules adsorbed on the surface in the presence of energy-carrying particles. These insights deepen our understanding of carbon contaminant-induced cavity performance degradation and recovery, providing a basis for selecting suitable online performance recovery methods to maintain the cavity’s stable, high-gradient operation.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (35)

  1. H. Padamsee, 50 years of success for SRF accelerators—A review, Supercond. Sci. Technol. 30, 053003 (2017).
  2. R.-L. Geng, A. Freyberger, and R. Rimmer, Understanding and mitigation of field emission in CEBAF SRF linacs, in Proceedings of the 10th International Particle Accelerator Conference, IPAC-2019, Melbourne, Australia (JACoW, Geneva, Switzerland, 2019).
  3. N. Walker, Experience with field emitters at the European XFEL, in Proceedings of the TTC 2021 Meeting, TESLA Technology Collaboration, Hamburg, Virtual Meeting (2021).
  4. A. Arnold, A. Büchner, H. Büttig, M. Freitag, U. Lehnert, M. Doleans et al., 15 Years of CW SRF Operation at ELBE (TTC, 2018), https://indico.triumf.ca/event/288/contributions/3652/attachments/2790/3422/Ariel_Talk_AA_V1.pdf.
  5. C.-H. Lo et al., Vertical test of a 500-MHz srf cavity with a closed-loop cryogenic helium system, IEEE Trans. Appl. Supercond. 29, 1 (2019).
  6. S.-H. Kim et al., Overview of ten-year operation of the superconducting linear accelerator at the Spallation Neutron Source, Nucl. Instrum. Methods Phys. Res., Sect. A 852, 20 (2017).
  7. R. L. Geng, A. Freyberger, and R. A. Rimmer, Understanding and mitigation of field emission in CEBAF SRF linacs, No. JLAB-ACC-19-2988; DOE/OR/23177-4740, Thomas Jefferson National Accelerator Facility (TJNAF), Newport News, VA (United States), 2019.
  8. Y. Khopkar, G. Denbeaux, and V. Jindal, Root causes of field emitters in SRF cavities placed in CEBAF tunnel, in Proceedings of the 7th International Particle Accelerator Conference, IPAC-2016, Busan, Korea (JACoW, Geneva, Switzerland, 2016), p. 90483M, https://inspirehep.net/literature/1470446.
  9. M. Doleans, Ignition and monitoring technique for plasma processing of multicell superconducting radio-frequency cavities, J. Appl. Phys. 120, 243301 (2016).
  10. S.-H. Kim, M. Crofford, M. Doleans, J. Saunders, and J. Mammosser, R&D status for in-situ plasma surface cleaning of SRF cavities at SNS, in Proceedings of 2011 Particle Accelerator Conference, New York, NY, USA (2011).
  11. M. Doleans et al., In-situ plasma processing to increase the accelerating gradients of superconducting radio-frequency cavities, Nucl. Instrum. Methods Phys. Res., Sect. A 812, 50 (2016).
  12. A. Wu et al., In-situ plasma cleaning to decrease the field emission effect of half-wave superconducting radio-frequency cavities, Nucl. Instrum. Methods Phys. Res., Sect. A 905, 61 (2018).
  13. B. Giaccone, M. Martinello, P. Berrutti, O. Melnychuk, D. A. Sergatskov, A. Grassellino, D. Gonnella, M. Ross, M. Doleans, and J. F. Zasadzinski, Field emission mitigation studies in the SLAC Linac Coherent Light Source II superconducting rf cavities via in situ plasma processing, Phys. Rev. Accel. Beams 24, 022002 (2021).
  14. A. D. Wu et al., The cryostat results of carbon contamination and plasma cleaning for the field emission on the SRF cavity (2019).
  15. M. Yu et al., The oxidation behaviors of high-purity niobium for superconducting radio-frequency cavity application in vacuum heat treatment, Vacuum 203, 111258 (2022).
  16. T. Jiang, Y. Huang, S. Zhang, L. Liu, P. Xiong, C. Li, H. Guo, W. Yue, S. Zhang, and Y. He, Design and test result of a superconducting double-spoke cavity, Nucl. Eng. Technol. 51, 877 (2019).
  17. J. Landoulsi, M. J. Genet, S. Fleith, Y. Touré, I. Liascukiene, C. Méthivier, and P. G. Rouxhet, Organic adlayer on inorganic materials: XPS analysis selectivity to cope with adventitious contamination, Appl. Surf. Sci. 383, 71 (2016).
  18. E. Korin, N. Froumin, and S. Cohen, Surface analysis of nanocomplexes by X-ray Photoelectron Spectroscopy (XPS), ACS Biomater. Sci. Eng. 3, 882 (2017).
  19. R. Pandiyan, Z. Oulad Elhmaidi, Z. Sekkat, M. Abd-lefdil, and M. A. El Khakani, Reconstructing the energy band electronic structure of pulsed laser deposited CZTS thin films intended for solar cell absorber applications, Appl. Surf. Sci. 396, 1562 (2017).
  20. Z. Zhang et al., The mechanism study of mixed Ar/O2 plasma-cleaning treatment on niobium surface for work function improvement, Appl. Surf. Sci. 475, 143 (2019).
  21. A. Daccà, G. Gemme, L. Mattera, and R. Parodi, XPS analysis of the surface composition of niobium for superconducting RF cavities, Appl. Surf. Sci. 126, 219 (1998).
  22. A. D. Batchelor, D. N. Leonard, P. E. Russell, F. A. Stevie, D. P. Griffis, and G. R. Myneni, TEM and SIMS analysis of (100), (110), and (111) single crystal niobium, AIP Conf. Proc. 927, 72 (2007).
  23. H. Piao and N. S. McIntyre, Adventitious carbon growth on aluminium and gold–aluminium alloy surfaces, Surf. Interface Anal. 33, 591 (2002).
  24. M. C. Biesinger, Accessing the robustness of adventitious carbon for charge referencing (correction) purposes in XPS analysis: Insights from a multi-user facility data review, Appl. Surf. Sci. 597, 153681 (2022).
  25. L. H. Grey, H.-Y. Nie, and M. C. Biesinger, Defining the nature of adventitious carbon and improving its merit as a charge correction reference for XPS, Appl. Surf. Sci. 653, 159319 (2024).
  26. T. Hryniewicz, K. Rokosz, and H. R. Z. Sandim, SEM/EDX and XPS studies of niobium after electropolishing, Appl. Surf. Sci. 263, 357 (2012).
  27. C. Zhang, S.-H. Zhang, Y. He, W.-M. Yue, and W. Chang, Multipacting analysis for half wave resonators in the China ADS, Chin. Phys. C 39, 117002 (2015).
  28. C. N. Stewart and G. Ehrlich, Dynamics of activated chemisorption: Methane on rhodium, J. Chem. Phys. 62, 4672 (1975).
  29. M. Meyyappan, L. Delzeit, A. Cassell, and D. Hash, Carbon nanotube growth by PECVD: A review, Plasma Sources Sci. Technol. 12, 205 (2003).
  30. H. Takatsuka, M. Noda, Y. Yonekura, Y. Takeuchi, and Y. Yamauchi, Development of high efficiency large area silicon thin film modules using VHF-PECVD, Solar Energy 77, 951 (2004).
  31. N. Nelson, R. T. Rakowski, J. Franks, P. Woolliams, P. Weaver, and B. J. Jones, The effect of substrate geometry and surface orientation on the film structure of DLC deposited using PECVD, Surf. Coat. Technol. 254, 73 (2014).
  32. M. Doleans, Ignition and monitoring technique for plasma processing of multicell superconducting radio-frequency cavities, J. Appl. Phys. 120, 243301 (2016).
  33. P. V. Tyagi et al., Improving the work function of the niobium surface of SRF cavities by plasma processing, Appl. Surf. Sci. 369, 29 (2016).
  34. M. Doleans et al., In-situ plasma processing to increase the accelerating gradients of superconducting radio-frequency cavities, Nucl. Instrum. Methods Phys. Res., Sect. A 812, 50 (2016).
  35. S. Ahmed and J. D. Mammosser, Microwave induced plasma discharge in multi-cell superconducting radio-frequency cavity, Rev. Sci. Instrum. 86, 073303 (2015).
