Enhanced laser-driven radioisotope production using a helical coil target with tube

C. L. C. Lacoste1,2,*, T. Carrière1, H. Larreur1,3, D. Batani1, D. Raffestin1, P. Antici2, E. D’Humières1, P. Nicolaï1, and M. Bardon1

  • *Contact author: clement.lacoste@u-bordeaux.fr, clement.lacoste@inrs.ca
PDF

Phys. Rev. Accel. Beams 28, 093401 – Published 9 September, 2025

DOI: https://doi.org/10.1103/fg53-l53v

Abstract

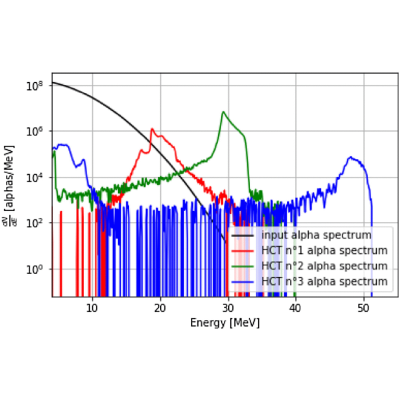

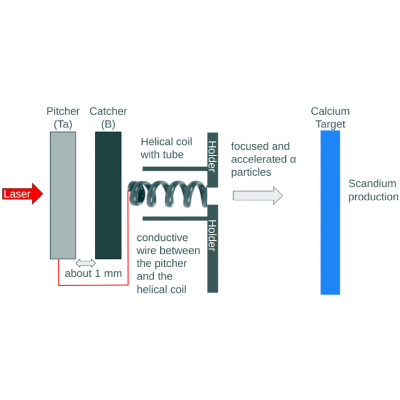

We present a comprehensive study unveiling advancements in α particle spectra manipulation that can be achieved through the implementation of a helical coil target with tube (HCT). Leveraging particle-in-cell simulations, we demonstrate the ability to control the energy distribution of α particle bunches within a narrow range, down to a few MeV. This development marks the first instance of successful ion energy manipulation facilitated by the HCT configuration. Importantly, our investigations reveal a significant enhancement in radioisotope production, with yields ranging from 10 to 3000 times greater with an HCT than without. These findings underscore the transformative potential of the HCT approach in improving α particle production in the context of laser-plasma acceleration and its consequential impact on radioisotope production for diverse applications. We also investigate the production of radioisotopes using proton acceleration with the HCT configuration and demonstrate that the yield can be increased by a factor of 30.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (34)

  1. K. A. Domnanich, C. Müller, M. Benešová, R. Dressler, S. Haller, U. Köster, B. Ponsard, R. Schibli, A. Türler, and N. P. van Der Meulen, Sc47 as useful β—emitter for the radiotheragnostic paradigm: A comparative study of feasible production routes, EJNMMI Radiopharm. Chem. 2, 1 (2017).
  2. R. Walczak, S. Krajewski, K. Szkliniarz, M. Sitarz, K. Abbas, J. Choiński, A. Jakubowski, J. Jastrzębski, A. Majkowska, F. Simonelli et al., Cyclotron production of Sc43 for pet imaging, EJNMMI Phys. 2, 1 (2015).
  3. R. Snavely, M. Key, S. Hatchett, T. Cowan, M. Roth, T. Phillips, M. Stoyer, E. Henry, T. Sangster, M. Singh et al., Intense high-energy proton beams from petawatt-laser irradiation of solids, Phys. Rev. Lett. 85, 2945 (2000).
  4. S. Wilks, A. Langdon, T. Cowan, M. Roth, M. Singh, S. Hatchett, M. Key, D. Pennington, A. Mackinnon, and R. Snavely, Energetic proton generation in ultra-intense laser-solid interactions, Phys. Plasmas 8, 542 (2001).
  5. M. L. E. Oliphant and E. Rutherford, Experiments on the transmutation of elements by protons, Proc. R. Soc. A 141, 259 (1933).
  6. V. Belyaev, A. Matafonov, V. Vinogradov, V. Krainov, V. Lisitsa, A. Roussetski, G. Ignatyev, and V. Andrianov, Observation of neutronless fusion reactions in picosecond laser plasmas, Phys. Rev. E 72, 026406 (2005).
  7. S. Kar, H. Ahmed, R. Prasad, M. Cerchez, S. Brauckmann, B. Aurand, G. Cantono, P. Hadjisolomou, C. L. Lewis, A. Macchi et al., Guided post-acceleration of laser-driven ions by a miniature modular structure, Nat. Commun. 7, 1 (2016).
  8. M. Streeter et al., Stable laser-acceleration of high-flux proton beams with plasma collimation, Nat. Commun. 16, 1004 (2025).
  9. A. Hirsch-Passicos, C. Lacoste, F. André, Y. Elskens, E. D’Humières, V. Tikhonchuk, and M. Bardon, Helical coil design with controlled dispersion for bunching enhancement of protons generated by the target normal sheath acceleration, Phys. Rev. E 109, 025211 (2024).
  10. F. Consoli, V. T. Tikhonchuk, M. Bardon, P. Bradford, D. C. Carroll, J. Cikhardt, M. Cipriani, R. J. Clarke, T. E. Cowan, C. N. Danson et al., Laser produced electromagnetic pulses: Generation, detection and mitigation, High Power Laser Sci. Eng. 8, e22 (2020).
  11. M. Bardon, J. Moreau, L. Romagnani, C. Rousseaux, M. Ferri, F. Lefévre, I. Lantuéjoul, B. Etchessahar, S. Bazzoli, D. Farcage et al., Physics of chromatic focusing, post-acceleration and bunching of laser-driven proton beams in helical coil targets, Plasma Phys. Controlled Fusion 62, 125019 (2020).
  12. P. Martin, H. Ahmed, O. Cavanagh, S. Ferguson, J. Green, B. Greenwood, B. Odlozilik, M. Borghesi, and S. Kar, Multi-parametric characterization of proton bunches above 50 MeV generated by helical coil targets, High Power Laser Sci. Eng. 12, e88 (2024).
  13. H. Ahmed, P. Hadjisolomou, K. Naughton, A. Alejo, S. Brauckmann, G. Cantono, S. Ferguson, M. Cerchez, D. Doria, J. Green et al., High energy implementation of coil-target scheme for guided re-acceleration of laser-driven protons, Sci. Rep. 11, 699 (2021).
  14. P. Hadjisolomou, H. Ahmed, R. Prasad, M. Cerchez, S. Brauckmann, B. Aurand, A. Schroer, M. Swantusch, O. Willi, M. Borghesi et al., Dynamics of guided post-acceleration of protons in a laser-driven travelling-field accelerator, Plasma Phys. Controlled Fusion 62, 115023 (2020).
  15. C. Lacoste, E. Catrix, S. Vallières, A. Hirsch-Passicos, T. Guilberteau, M. Lafargue, J. Lopez, I. Manek-Hönninger, S. Fourmaux, D. Raffestin et al., Experimental and numerical investigation of the impact of helical coil targets on laser-driven proton and carbon accelerations, Matter Radiat. Extremes 10, 037602 (2025).
  16. R. P. Baum and H. R. Kulkarni, THERANOSTICS: From molecular imaging using Ga-68 labeled tracers and PET/CT to personalized radionuclide therapy-the bad berka experience, Theranostics 2, 437 (2012).
  17. R. Hernandez, H. F. Valdovinos, Y. Yang, R. Chakravarty, H. Hong, T. E. Barnhart, and W. Cai,  Sc47: An attractive isotope for peptide-based PET imaging, Mol. Pharm. 11, 2954 (2014).
  18. F. Roesch, Scandium-44: benefits of a long-lived pet radionuclide available from the Ti44/ Sc47 generator system, Curr. Radiopharm. 5, 187 (2012).
  19. C. Müller, M. Bunka, S. Haller, U. Köster, V. Groehn, P. Bernhardt, N. van der Meulen, A. Türler, and R. Schibli, Promising prospects for Sc44/ Sc47-based theragnostics: Application of  Sc47 for radionuclide tumor therapy in mice, J. Nucl. Med. 55, 1658 (2014).
  20. C. Champion, M. A. Quinto, C. Morgat, P. Zanotti-Fregonara, and E. Hindié, Comparison between three promising ß-emitting radionuclides, Cu67, Sc47 and Tb161, with emphasis on doses delivered to minimal residual disease, Theranostics 6, 1611 (2016).
  21. S. Okamoto, T. Shiga, and N. Tamaki, Clinical perspectives of theranostics, Molecules, 26, 2232 (2021).
  22. S. M. Qaim, B. Scholten, and B. Neumaier, New developments in the production of theranostic pairs of radionuclides, J. Radioanal. Nucl. Chem. 318, 1493 (2018).
  23. C. Lacoste, A. Hirsch, E. d’Humières, V. Tikhonchuk, P. Antici, and M. Bardon, Theoretical model of current propagation in a helical coil with varying geometry and screen tube, Matter Radiat. Extremes 9, 067201 (2024).
  24. O. Cessenat, sophie, an FDTD code on the way to multicore, getting rid of the memory bandwidth bottleneck better using cache, arXiv:1301.4539.
  25. T. Böhlen, F. Cerutti, M. Chin, A. Fassò, A. Ferrari, P. G. Ortega, A. Mairani, P. R. Sala, G. Smirnov, and V. Vlachoudis, The fluka code: Developments and challenges for high energy and medical applications, Nucl. Data Sheets 120, 211 (2014).
  26. N. Miyanaga, H. Azechi, K. Tanaka, T. Kanabe, T. Jitsuno, J. Kawanaka, Y. Fujimoto, R. Kodama, H. Shiraga, K. Knodo et al., 10-kJ PW laser for the firex-i program, J. Phys. IV 133, 81 (2006).
  27. D. Margarone, A. Morace, J. Bonvalet, Y. Abe, V. Kantarelou, D. Raffestin, L. Giuffrida, P. Nicolai, M. Tosca, A. Picciotto et al., Generation of α-particle beams with a multi-kJ, Peta-Watt class laser system, Front. Phys. 8, 343 (2020).
  28. J. Bonvalet, P. Nicolai, D. Raffestin, E. D’humieres, D. Batani, V. Tikhonchuk, V. Kantarelou, L. Giuffrida, M. Tosca, G. Korn et al., Energetic α-particle sources produced through proton-boron reactions by high-energy high-intensity laser beams, Phys. Rev. E 103, 053202 (2021).
  29. J. P. Boris and R. A. Shanny, in Proceedings of the Conference on the Numerical Simulation of Plasmas (4th), Naval Research Laboratory, Washington, DC (1971).
  30. E. Catrix, F. Boivin, K. Langlois, S. Vallières, C. Y. Boynukara, S. Fourmaux, and P. Antici, Stable high repetition-rate laser-driven proton beam production for multidisciplinary applications on the advanced laser light source ion beamline, Rev. Sci. Instrum. 94, 103003 (2023).
  31. D. Raffestin, L. Lecherbourg, I. Lantuéjoul, B. Vauzour, P. Masson-Laborde, X. Davoine, N. Blanchot, J. Dubois, X. Vaisseau, E. d’Humières et al., Enhanced ion acceleration using the high-energy petawatt PETAL laser, Matter Radiat. Extremes 6, 056901 (2021).
  32. A. Hirsch-Passicos. Numerical and experimental study of a new laser-driven proton accelerator, Ph.D. thesis, Université de Bordeaux, 2023.
  33. G. Battistoni, T. Boehlen, F. Cerutti, P. W. Chin, L. S. Esposito, A. Fasso, A. Ferrari, A. Lechner, A. Empl, A. Mairani et al., Overview of the fluka code, Ann. Nucl. Energy 82, 10 (2015).
  34. A. Ferrari, P. R. Sala, A. Fasso, and J. Ranft, fluka: A multi-particle transport code (Program version 2005), CERN Report No. CERN-2005-10, 2005.
