Electron cloud energy distribution measurement and model in the LHC with the Vacuum Pilot Sector
Phys. Rev. Accel. Beams 29, 103502 – Published 15 October, 2026
DOI: https://doi.org/10.1103/fbwj-r3gx
Abstract

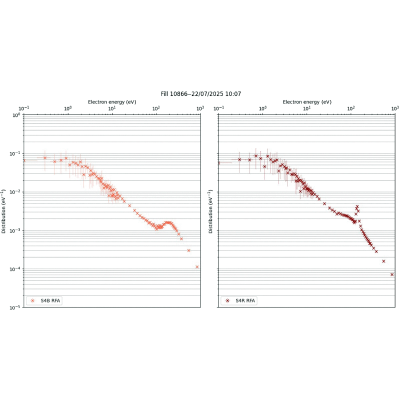

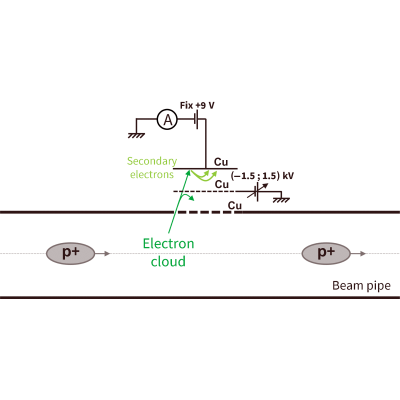

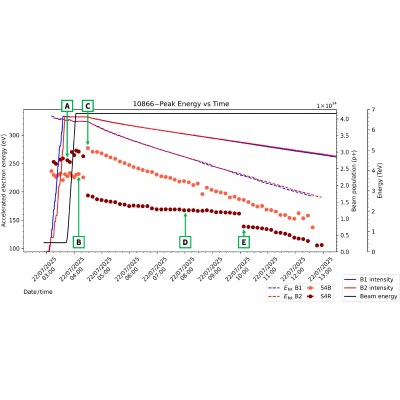

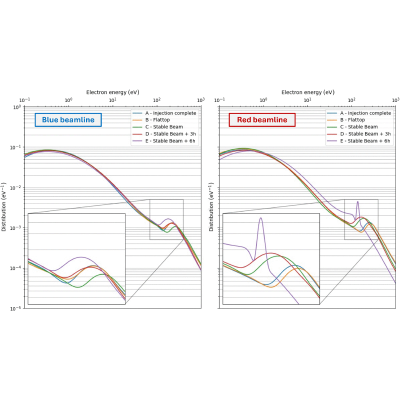

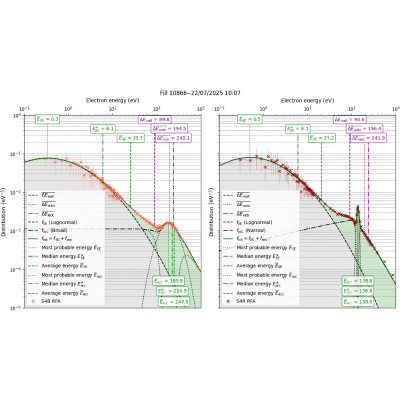

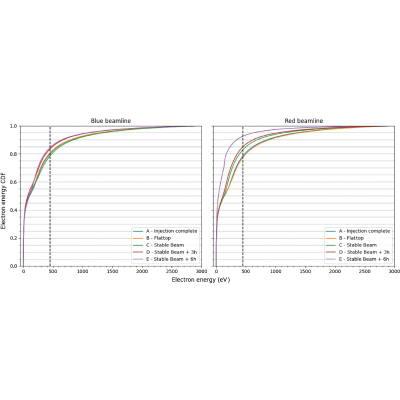

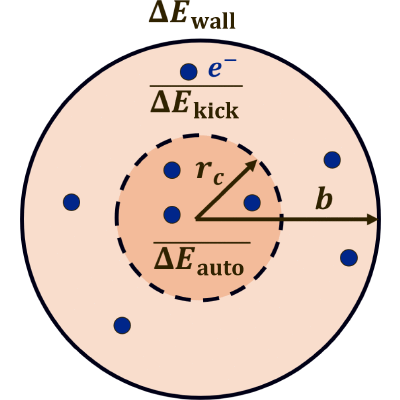

Electron cloud effects constitute a major performance limitation in high-intensity particle accelerators such as the Large Hadron Collider (LHC). A key ingredient for understanding and modeling these effects is the energy distribution of electrons impinging on the vacuum chamber walls. In this paper, we present direct measurements of electron cloud energy distributions obtained in the LHC Vacuum Pilot Sector (VPS) using retarding field analyzers with a beam pipe diameter of 8 cm, i.e., twice the LHC arc one. The VPS provides a dedicated, fully instrumented test environment for electron cloud studies under real LHC beam conditions. The measured energy spectra systematically exhibit a low-energy component associated with secondary electron emission and a higher-energy component originating from bunch-driven acceleration. To characterize these features, a phenomenological model is developed to reproduce the observed distributions up to 3 keV. Model parameters are extracted from a large dataset of LHC fills, with a representative 2025 physics fill used for detailed illustration. The evolution of the accelerated-electron peak is analyzed throughout the fill cycle and compared with predictions from the analytical kick approximation model. Good agreement is observed—particularly during the stable beam phase in one beamline—confirming that bunch-induced kicks dominate the electron energy gain in the field-free regions, as for the VPS. Discontinuities in the peak energy at operational transitions, as well as the recurrent observation of narrow accelerated peaks in the other beamline, are reported and suggest a dependence of the beam optics on the resulting energy gain. Finally, cumulative energy distribution functions are derived to quantify the fraction of electrons exceeding given energy thresholds. These results establish a quantitative experimental reference for energy-resolved electron cloud modeling in the LHC, providing direct inputs for electron cloud simulation benchmarking, heat load estimates, ESD modeling, and residual electron background assessment in ion diagnostics.
Physics Subject Headings (PhySH)
Article Text
References (19)
- G. Budker, G. Dimov, and V. Dudnikov, Experiments on producing intensive proton beams by means of the method of charge-exchange injection, Sov. At. Energy 22, 441 (1967).
- V. Dudnikov, Some features of transverse instabilities of partly compensated proton beams, in Proceedings of the 2001 Particle Accelerator Conference (IEEE, Chicago, IL, USA, 2001).
- J. Martin, R. Winje, R. Hilden, and F. Mills, Damping of the coherent vertical beam instability in the argonne zgs, in Proceedings of the 5th International Conference on High-Energy Accelerators (CNEN, Rome, Italy, 1965).
- O. Gröbner, Bunch induced multipactoring, in Proceedings of the 10th International Conference on High-Energy Accelerators (IHEP, Serpukhov, USSR, 1977), pp. 277–282.
- F. Zimmermann, Review of single bunch instabilities driven by an electron cloud, Phys. Rev. Accel. Beams 7, 124801 (2004).
- Q. Duong, V. Baglin, and G. Sattonnay, In situ estimation of the maximum secondary electron yield in the lhc vacuum pilot sector beam pipe via electron cloud measurements and numerical simulations, Phys. Rev. Accel. Beams 29, 083503 (2026).
- B. Yee-Rendon, H. Kuboki, R. Muto, M. Okada, K. Satou, M. Tomizawa, and T. Toyama, Measurements of the energy distribution of the electron cloud at J-PARC MR, in Proceedings of the 14th Annual Meeting of Particle Accelerator Society of Japan (PASJ2017), Sapporo, Japan, August 1–3 2017, pp. 1069–1071.
- J. Calvey, G. Dugan, W. Hartung, J. Livezey, J. Makita, and M. Palmer, Measurement and modeling of electron cloud in a field free environment using retarding field analyzers, Phys. Rev. Accel. Beams 17, 061001 2014).
- E. Buratin, Electron Cloud and Synchrotron Radiation Characterization of Technical Surfaces with the Large Hadron Collider Vacuum Pilot Sector, Ph.D. thesis, École Polytechnique Fédérale de Lausanne, 2020.
- S. Bilgen, G. Sattonnay, B. Mercier, V. Baglin, and B. Henrist, Dynamic pressure evolution during the lhc operation, Phys. Rev. Accel. Beams 25, 083101 (2022).
- J. Scott Berg, Energy gain in an electron cloud during the passage of a bunch, in LHC Project Note 97 (1997).
- O. Gröbner, Beam induced multipacting, in Proceedings of 17th Particle Accelerator Conference (IEEE, Vancouver, BC, Canada, 1997), pp. 3589–3591.
- S. Heifets, Study of an instability of the pep-ii positron beam (ohmi effect and multipactoring), in Proceedings of the International Workshop on Collective Effects and Impedance for B-Factories (CEIBA95) (KEK (National Laboratory for High Energy Physics), Tsukuba, Ibaraki, Japan, 1995), pp. 295–321.
- Q. Duong, Electron Cloud Study with the CERN LHC Vacuum Pilot Sector, Ph.D. thesis, Paris-Saclay University, 2025.
- G. Iadarola, Electron Cloud Studies for CERN Particle Accelerators and Simulations Code Development, Ph.D. thesis, Università degli Studi di Napoli Federico II., 2014.
- G. Iadarola, K. Paraschou, and L. Mether, Pyecloud (2024).
- R. Cimino, M. Commisso, D. Grosso, T. Demma, V. Baglin, R. Flammini, and R. Larciprete, Nature of the decrease of the secondary-electron yield by electron bombardment and its energy dependence, Phys. Rev. Lett. 109, 064801 (2012).
- M. Haubner, Electron Beam Characterization of Technical Surfaces at Cryogenic Temperatures, Ph.D. thesis, Czech Technical University in Prague, 2023.
- B. Bradu, Electron clouds and cryogenic heat loads in the lhc: Updated measurements in resuming operation for run3, in Proceedings of ECLOUD’22 (CERN, Geneva, Switzerland, 2022).
