Charge-exchange cooling of multicharge-state heavy-ion beams
Phys. Rev. Accel. Beams 29, L044001 – Published 14 April, 2026
DOI: https://doi.org/10.1103/f53n-9ccy
Abstract

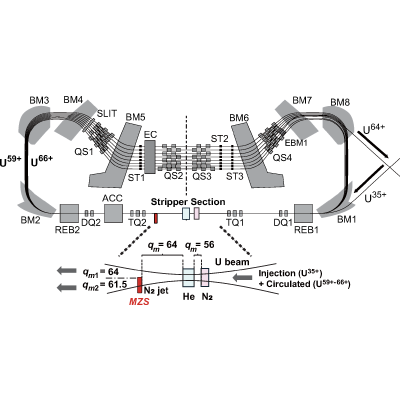

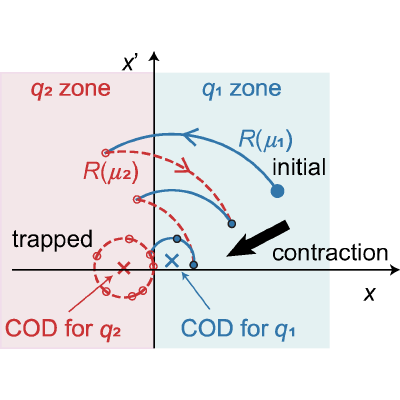

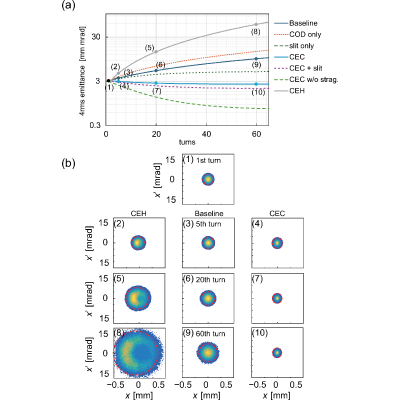

A novel cooling mechanism for heavy-ion beams, termed charge-exchange cooling (CEC), is proposed. Phase-space-dependent zoned charge exchange combined with charge-state-dependent closed-orbit distortions (CODs) enables rapid, autonomous, turn-by-turn contraction of the phase-space distribution for continuous-wave heavy-ion beams. The resulting dynamics forms a stochastic affine-map system with state-dependent switching and a net negative drift. CEC is implemented in the charge stripper ring 1 (CSR1), under development at the RIKEN RI Beam Factory, where zoned charge exchange and charge-state-specific CODs are readily incorporated. Proof-of-principle studies based on two- and multicharge-state models, together with realistic CSR1 simulations, demonstrate fast turn-by-turn cooling under practical machine conditions and establish CEC as a new beam-cooling principle with potential implications for future accelerator design and applications.
Physics Subject Headings (PhySH)
Article Text
References (22)
- G. I. Budker, An effective method of damping particle oscillations in proton and antiproton storage rings, Sov. At. Energy 22, 438 (1967).
- V. Parkhomchuk, New insights in the theory of electron cooling, Nucl. Instrum. Methods Phys. Res., Sect. A 441, 9 (2000).
- M. Steck, P. Beller, K. Beckert, B. Franzke, and F. Nolden, Electron cooling experiments at the ESR, Nucl. Instrum. Methods Phys. Res., Sect. A 532, 357 (2004), International Workshop on Beam Cooling and Related Topics.
- S. van der Meer, Stochastic damping of betatron oscillations in the ISR, Technical Report No. CERN/ISR-PO/72-31, European Organization for Nuclear Research (CERN), Geneva, 1972.
- D. Möhl, G. Petrucci, L. Thorndahl, and S. van der Meer, Physics and technique of stochastic cooling, Phys. Rep. 58, 73 (1980).
- D. Neuffer, Principles and applications of muon cooling, Part. Accel. 14, 75 (1983).
- M. Bogomilov et al., Demonstration of cooling by the muon ionization cooling experiment, Nature (London) 578, 53 (2020).
- H. Imao, Charge stripper ring for RIKEN RI Beam Factory, J. Instrum. 15, P12036 (2020).
- H. Imao, Status update of the charge stripper rings project, J. Instrum. 18, P03028 (2023).
- RIKEN Nishina Center, RIBF facility upgrade project, Technical Report, RIKEN, 2023, https://www.nishina.riken.jp/researcher/RIBFupgrade/RIBF_Upgrade_NCAC.pdf.
- H. Imao, A charge stripper ring for RIKEN RI beam factory, in Proceedings of the HIAT2025, East Lansing, MI (JACoW, Geneva, Switzerland, 2025), pp. 298–303, FRX01, 10.18429/JACoW-HIAT2025-FRX01.
- Y. Yano, The RIKEN RI Beam Factory project: A status report, Nucl. Instrum. Methods Phys. Res., Sect. A 261, 1009 (2007), The Application of Accelerators in Research and Industry.
- H. Okuno, N. Fukunishi, A. Goto, H. Hasebe, H. Imao, O. Kamigaito, M. Kase, H. Kuboki, Y. Yano, S. Yokouchi, and A. Hershcovitch, Low- gas stripper as an alternative to carbon foils for the acceleration of high-power uranium beams, Phys. Rev. ST Accel. Beams 14, 033503 (2011).
- H. Imao, H. Okuno, H. Kuboki, S. Yokouchi, N. Fukunishi, O. Kamigaito, H. Hasebe, T. Watanabe, Y. Watanabe, M. Kase, and Y. Yano, Charge stripping of ion beam by helium gas stripper, Phys. Rev. ST Accel. Beams 15, 123501 (2012).
- S. P. Meyn and R. L. Tweedie, Markov Chains and Stochastic Stability, Communications and Control Engineering (Springer-Verlag, London, England, 1993), Vol. 37.
- R. Anne, J. Herault, R. Bimbot, H. Gauvin, G. Bastin, and F. Hubert, Multiple angular scattering of heavy ions (, , , and ) at intermediate energies (20–90 MeV/u), Nucl. Instrum. Methods Phys. Res., Sect. B 34, 295 (1988).
- H. Kuboki, H. Okuno, H. Hasebe, S. Yokouchi, N. Fukunishi, Y. Higurashi, J. Ohnishi, T. Nakagawa, H. Imao, O. Kamigaito, A. Goto, M. Kase, and Y. Yano, Charge-state distribution of in nitrogen gas and carbon foil at 14 and , Phys. Rev. ST Accel. Beams 14, 053502 (2011).
- W. Barth, A. Adonin, C. E. Düllmann, M. Heilmann, R. Hollinger, E. Jäger, J. Khuyagbaatar, J. Krier, P. Scharrer, H. Vormann, and A. Yakushev, -intensity record applying a -gas stripper cell, Phys. Rev. ST Accel. Beams 18, 040101 (2015).
- P. Scharrer, C. E. Düllmann, W. Barth, J. Khuyagbaatar, A. Yakushev, M. Bevcic, P. Gerhard, L. Groening, K. P. Horn, E. Jäger, J. Krier, and H. Vormann, Measurements of charge state distributions of 0.74 and heavy ions passing through dilute gases, Phys. Rev. Accel. Beams 20, 043503 (2017).
- H. Imao et al., Design and operation of a helium gas stripper for high-intensity uranium beams at the RIKEN Radioactive Isotope Beam Factory, Rev. Sci. Instrum. 97, 033301 (2026).
- T. Kanemura, M. LaVere, R. Madendorp, F. Marti, T. Maruta, Y. Momozaki, P. N. Ostroumov, A. S. Plastun, J. Wei, and Q. Zhao, Experimental demonstration of the thin-film liquid-metal jet as a charge stripper, Phys. Rev. Lett. 128, 212301 (2022).
- H. Hasebe, H. Okuno, A. Tatami, M. Tachibana, M. Murakami, H. Kuboki, H. Imao, N. Fukunishi, M. Kase, and O. Kamigaito, Development of a rotating graphite carbon disk stripper, AIP Conf. Proc. 1962, 030004 (2018).
