Theory and simulation of gap distance transitions in planar magnetically insulated transmission lines

Adam M. Darr*

  • *Contact author: amdarr@sandia.gov
PDF

Phys. Rev. Accel. Beams 29, L040402 – Published 14 April, 2026

DOI: https://doi.org/10.1103/f37s-zjbm

Abstract

Magnetically insulated transmission lines (MITLs) are critical components for efficiently transporting power from pulsed power sources to a diverse range of loads, including magneto-inertial confinement fusion and radiation production. This study investigates the behavior of planar MITLs, taking into account the source voltage and source and load impedances, using two-dimensional theory and simulations. Self-limited behavior, where the MITL operating impedance (voltage divided by current) is insensitive to the value of load impedance, is extended to small-to-large gap distance MITL transitions. Load-limited behavior, in which the load impedance is below the self-limited impedance, causes the MITL operating impedance to adjust to match the load impedance and can be extended to describe large-to-small transitions. In both cases, the operating impedance of the larger MITL section changes to match the self-limited operating impedance of the smaller section. This behavior extends to multiple transitions and to both low and high impedance loads. Assuming equilibration occurs (pulse duration larger than MITL transit time), the entire MITL operating impedance becomes the self-limited impedance of the smallest-gap MITL section or the load impedance, whichever is lower.

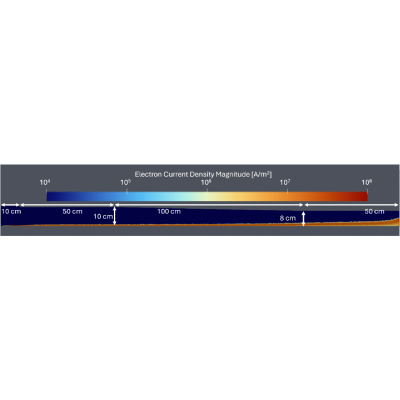

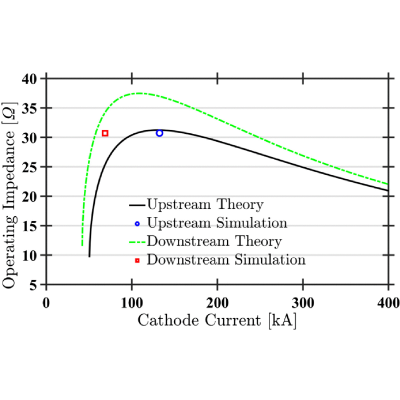

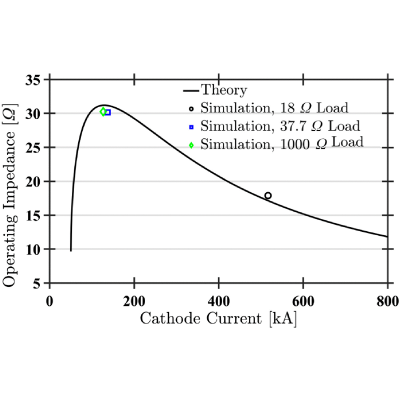

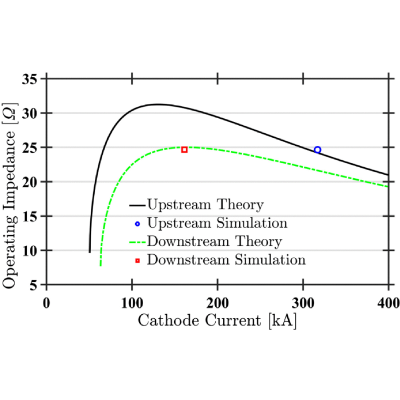

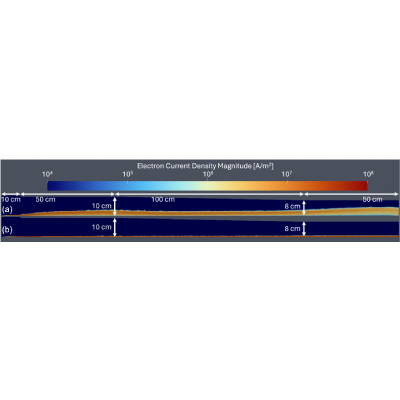

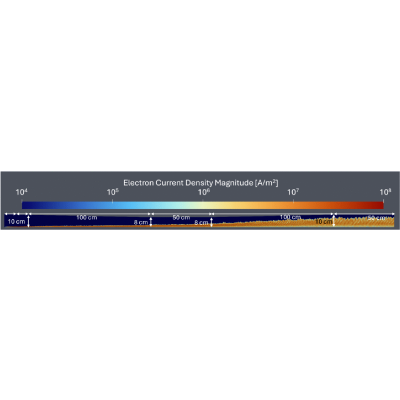

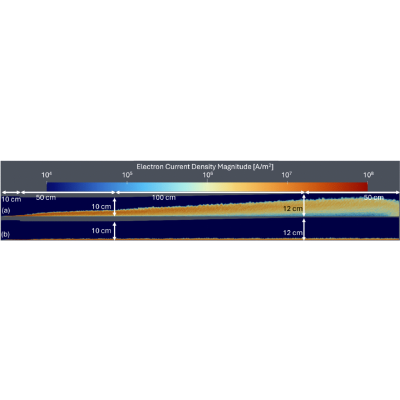

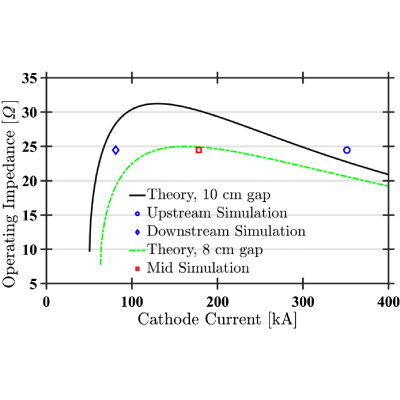

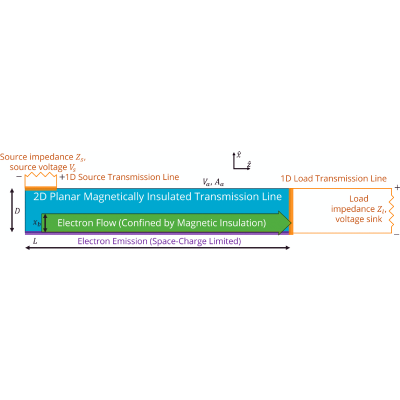

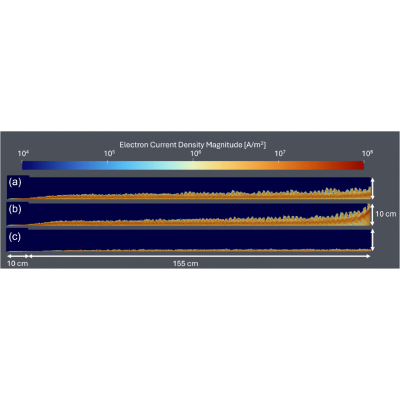

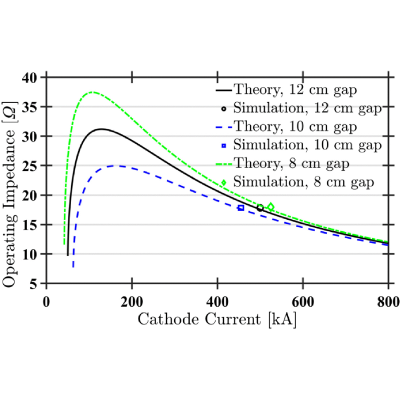

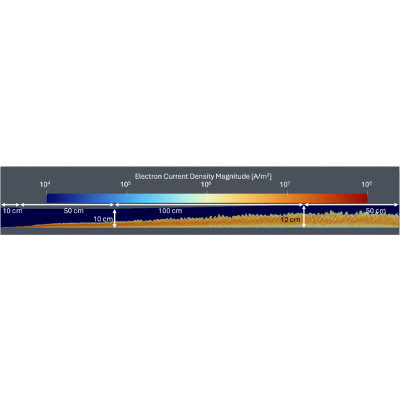

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. R. C. Pate, J. C. Patterson, M. C. Dowdican, J. J. Ramirez, D. E. Hasti, K. M. Tolk, J. W. Poukey, L. X. Schneider, S. E. Rosenthal, and T. W. L. Sanford, Self-magnetically insulated transmission line (MITL) system design for the 20-stage HERMES-III accelerator, in Proceedings of the 6th IEEE International Pulsed Power Conference, Arlington, VA (IEEE, New York, 1987), pp. 478–481.
  2. D. Bloomquist, R. Stinnett, D. McDaniel, J. Lee, A. Sharpe, J. Halbleib, L. Schlitt, P. Spence, P. Corcoran et al., Saturn, a large area X-ray simulation accelerator, in Proceedings of the 6th IEEE International Pulsed Power Conference, Arlington, VA (IEEE, New York, 1987), pp. 310–317.
  3. G. Bekefi and T. Orzechowski, Giant microwave bursts emitted from a field-emission, relativistic-electron-beam magnetron, Phys. Rev. Lett. 37, 379 (1976).
  4. J. Benford, History and future of the relativistic magnetron, in Proceedings of the 2010 International Conference on the Origins and Evolution of the Cavity Magnetron, Bournemouth, United Kingdom (IEEE, New York, 2010), pp. 40–45.
  5. M. C. Clark, B. M. Marder, and L. D. Bacon, Magnetically insulated transmission line oscillator, Appl. Phys. Lett. 52, 78 (1988).
  6. S. E. Calico, M. C. Clark, R. W. Lemke, and M. C. Scott, Experimental and theoretical investigations of a magnetically insulated line oscillator (MILO), in Intense Microwave Pulses III, San Diego, CA (SPIE, Bellingham, WA, 1995), Vol. 2557, pp. 50–59.
  7. R. W. Lemke, S. E. Calico, and M. C. Clark, Investigation of a load-limited, magnetically insulated transmission line oscillator (MILO), IEEE Trans. Plasma Sci. 25, 364 (1997).
  8. S. Dwivedi and P. K. Jain, Design expressions for the magnetically insulated line oscillator, IEEE Trans. Plasma Sci. 41, 1549 (2013).
  9. M. S. Di Capua and D. G. Pellinen, Propagation of power pulses in magnetically insulated vacuum transmission lines, J. Appl. Phys. 50, 3713 (1979).
  10. J. VanDevender, Long self-magnetically insulated power transport experiments, J. Appl. Phys. 50, 3928 (1979).
  11. R. Spielman and D. Reisman, On the design of magnetically insulated transmission lines for z-pinch loads, Matter Radiat. Extremes 4, 027402 (2019).
  12. A. B. Sefkow, S. Slutz, J. Koning, M. Marinak, K. Peterson, D. Sinars, and R. Vesey, Design of magnetized liner inertial fusion experiments using the Z facility, Phys. Plasmas 21, 072711 (2014).
  13. D. A. Yager-Elorriaga, M. R. Gomez, D. E. Ruiz, S. A. Slutz, A. J. Harvey-Thompson, C. A. Jennings, P. Knapp, P. Schmit, M. R. Weis, T. J. Awe et al., An overview of magneto-inertial fusion on the Z machine at Sandia National Laboratories, Nucl. Fusion 62, 042015 (2022).
  14. T. Sanford, T. Nash, R. Olson, D. Bliss, R. Lemke, C. Olson, C. Ruiz, R. Mock, J. Bailey, G. Chandler et al., Progress in Z-pinch driven dynamic-hohlraums for high-temperature radiation-flow and ICF experiments at Sandia National Laboratories, Plasma Phys. Controlled Fusion 46, B423 (2004).
  15. W. A. Stygar, P. A. Corcoran, H. C. Ives, R. B. Spielman, J. W. Douglas, B. A. Whitney, M. A. Mostrom, T. C. Wagoner, C. S. Speas, T. L. Gilliland et al., 55-TW magnetically insulated transmission-line system: Design, simulations, and performance, Phys. Rev. ST Accel. Beams 12, 120401 (2009).
  16. B. Jones, C. A. Jennings, D. C. Lamppa, S. B. Hansen, A. J. Harvey-Thompson, D. J. Ampleford, M. E. Cuneo, T. Strizic, D. Johnson, M. C. Jones et al., A renewed capability for gas puff science on Sandia’s Z machine, IEEE Trans. Plasma Sci. 42, 1145 (2013).
  17. D. B. Sinars, M. A. Sweeney, C. S. Alexander, D. J. Ampleford, T. Ao, J. P. Apruzese, C. Aragon, D. J. Armstrong, K. N. Austin, T. J. Awe et al., Review of pulsed power-driven high energy density physics research on Z at Sandia, Phys. Plasmas 27, 070501 (2020).
  18. R. Spielman and A. Sefkow, Modeling variable-impedance, magnetically insulated, transmission lines, in Proceedings of the 2019 IEEE Pulsed Power & Plasma Science (PPPS), Orlando, FL (IEEE, New York, 2019), pp. 1–4.
  19. R. Revolinsky, C. Swenson, N. Jordan, Y. Lau, and R. Gilgenbach, On the two-dimensional Brillouin flow, Phys. Plasmas 31, 053109 (2024).
  20. M. T. Bettencourt, D. A. Brown, K. L. Cartwright, E. C. Cyr, C. A. Glusa, P. T. Lin, S. G. Moore, D. A. McGregor, R. P. Pawlowski, E. G. Phillips et al., EMPIRE-PIC: A performance portable unstructured particle-in-cell code, Commun. Comput. Phys. 30, 1232 (2021).
  21. D. McGregor, E. Phillips, D. Sirajuddin, and T. Pointon, Variational, stable, and self-consistent coupling of 3D electromagnetics to 1D transmission lines in the time domain, J. Comput. Phys. 451, 110856 (2022).
  22. W. Stygar, R. Spielman, G. Allshouse, C. Deeney, D. Humphreys, H. Ives, F. Long, T. Martin, M. Matzen, D. McDaniel et al., Design and performance of the Z magnetically-insulated transmission lines, in Digest of Technical Papers. 11th IEEE International Pulsed Power Conference, Baltimore, MD (IEEE, New York, 1997), Vol. 1, pp. 591–596.
  23. Y. Y. Lau, D. A. Packard, C. J. Swenson, J. W. Luginsland, D. Li, A. Jassem, N. M. Jordan, R. D. McBride, and R. M. Gilgenbach, Explicit Brillouin flow solutions in magnetrons, magnetically insulated line oscillators, and radial magnetically insulated transmission lines, IEEE Trans. Plasma Sci. 49, 3418 (2021).
  24. J. Maenchen, S. Cordova, J. Gustwiller, D. Johnson, P. Menge, I. Molina, C. Olson, S. Rosenthal, D. Rovang, O. Oliver et al., Inductive voltage adder driven X-ray sources for hydrodynamic radiography, in Digest of Technical Papers. 11th IEEE International Pulsed Power Conference, Baltimore, MD (IEEE, New York, 1999), Vol. 1, pp. 279–282.
  25. L. Brillouin, A theorem of Larmor and its importance for electrons in magnetic fields, Phys. Rev. 67, 260 (1945).
  26. P. F. Ottinger and J. W. Schumer, Magnetically insulated ion flow theory, Phys. Plasmas 13, 063101 (2006).
  27. P. F. Ottinger, J. W. Schumer, D. D. Hinshelwood, and R. J. Allen, Generalized model for magnetically insulated transmission line flow, IEEE Trans. Plasma Sci. 36, 2708 (2008).
  28. P. Ottinger, J. Schumer, D. Hinshelwood, and R. Allen, Benchingmark and implementation of a generalized MITL flow model, in Proceedings of the 2009 IEEE Pulsed Power Conference, Washington, DC (IEEE, New York, 2009), pp. 1176–1179,
  29. J. M. Creedon, Magnetic cutoff in high-current diodes, J. Appl. Phys. 48, 1070 (1977).
  30. T. Sanford, J. Poukey, T. Wright, J. Bailey, C. Heath, R. Mock, P. Spence, J. Fockler, and H. Kishi, Impedance of an annular-cathode indented-anode electron diode terminating a coaxial magnetically insulated transmission line, J. Appl. Phys. 63, 681 (1988).
  31. S. Swanekamp, J. Grossmann, P. Ottinger, R. Commisso, and J. Goyer, Power flow between a plasma-opening switch and a load separated by a high-inductance magnetically insulated transmission line, J. Appl. Phys. 76, 2648 (1994).
