High-power test of the single-periodic magnetically coupled standing-wave accelerating structure for a proton therapy linac

Wei Qin1, Yulu Huang1, Yuan He1,2, Zheng Gao1, Longbo Shi1, Jiaosai Li1, Chenxing Li1, Weiping Dou1, Xiaofeng Jin1 et al.

Zhouli Zhang1, Zongheng Xue1, Yujuan Zhao1, Tiancai Jiang1, Yupeng Yang1, Yuhui Guo1, Shilong Gao1,3, Yuqi Xin2, and Ruoxu Wang1

PDF

Phys. Rev. Accel. Beams 29, 032001 – Published 12 March, 2026

DOI: https://doi.org/10.1103/9jql-8xgf

Abstract

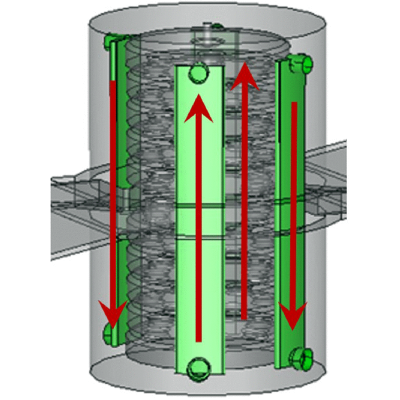

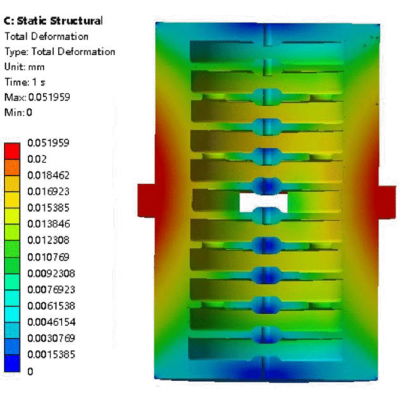

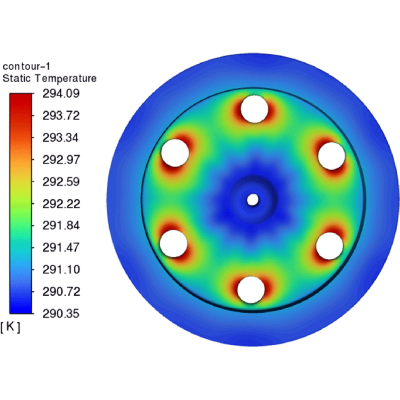

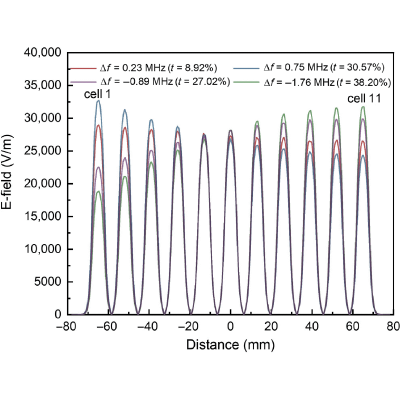

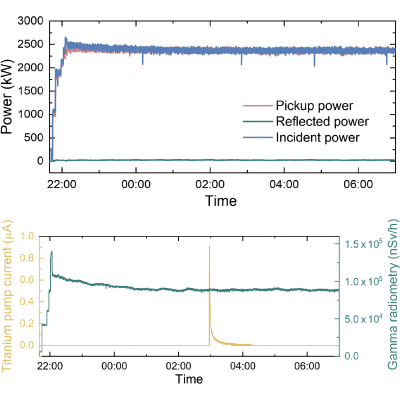

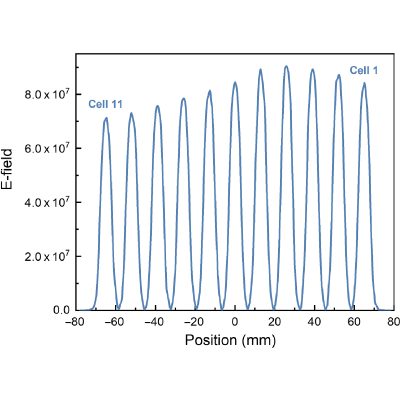

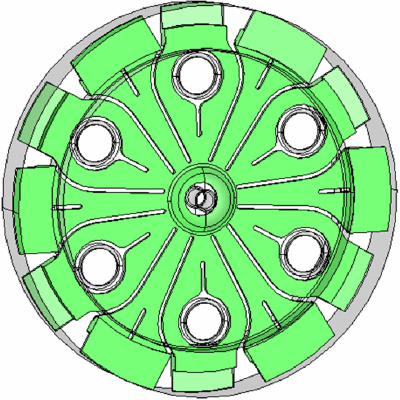

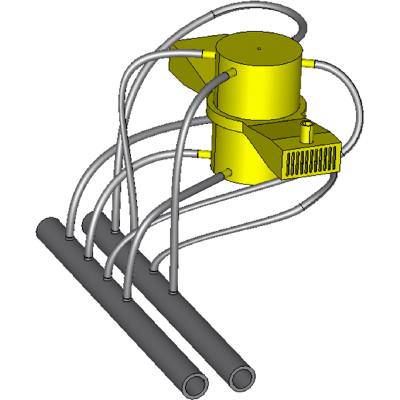

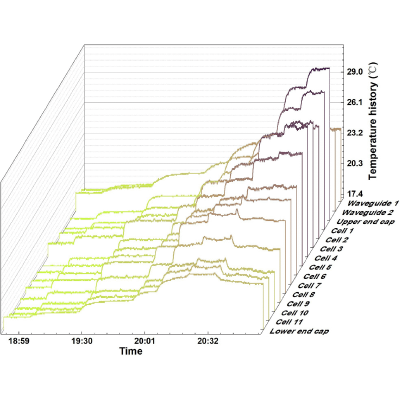

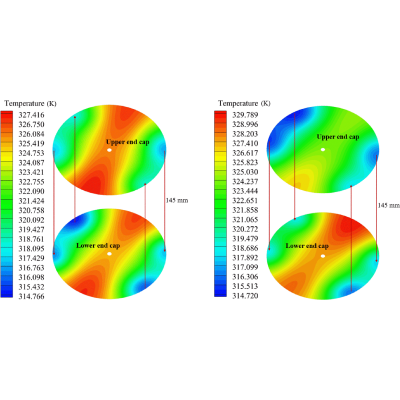

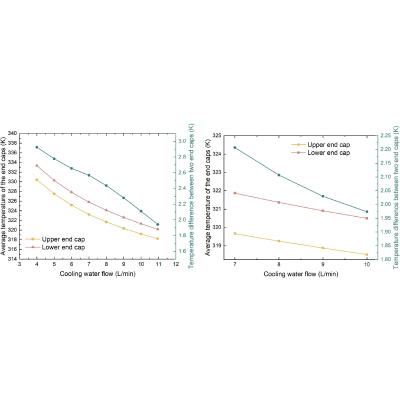

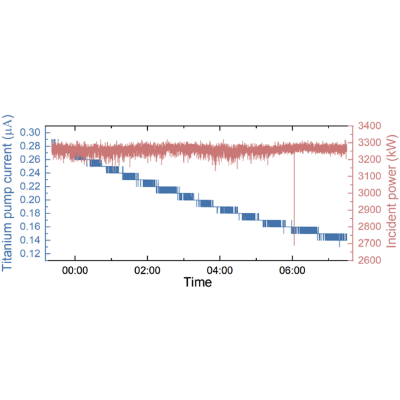

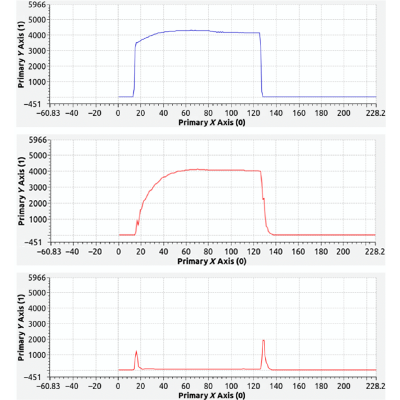

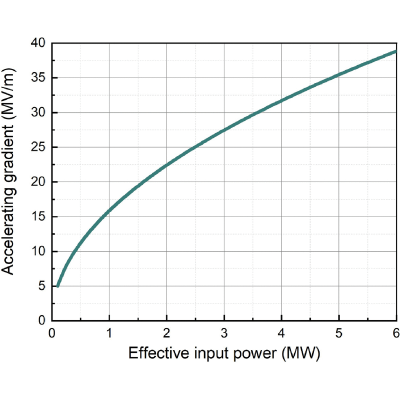

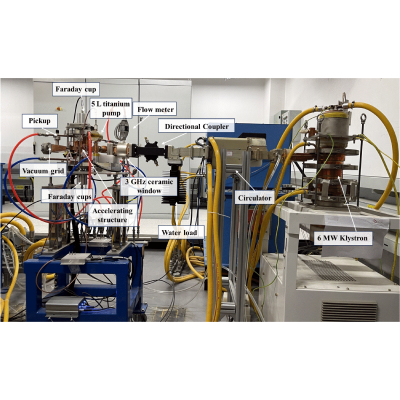

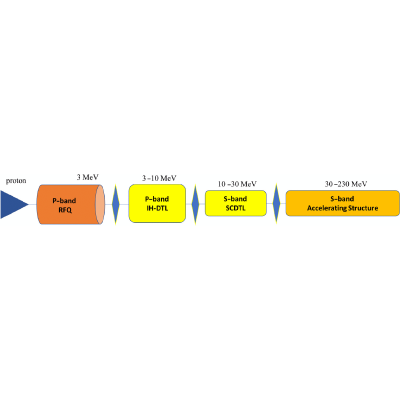

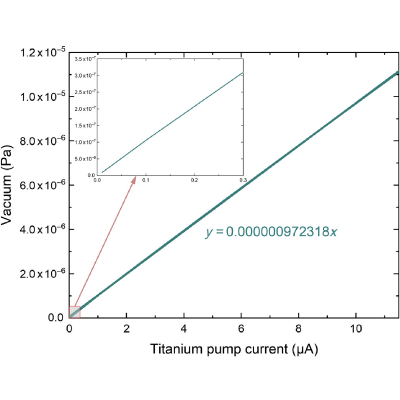

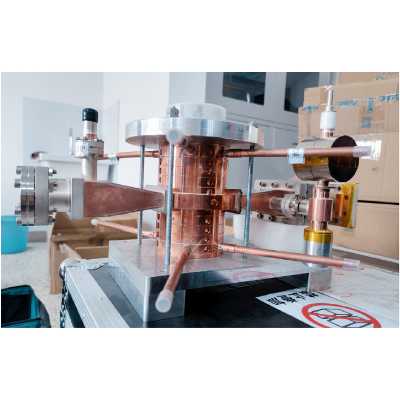

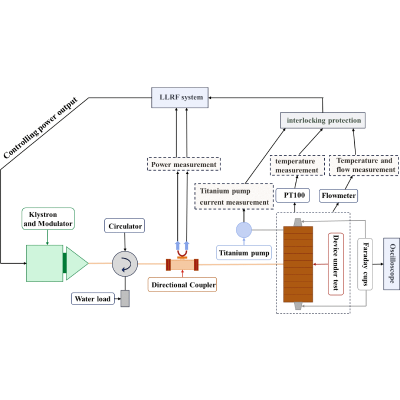

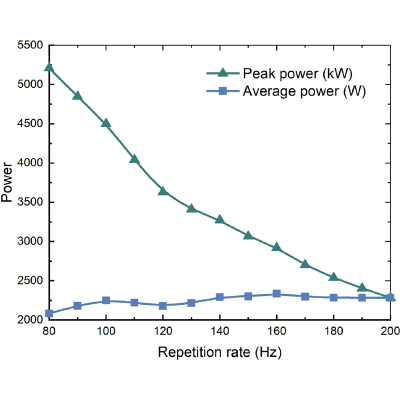

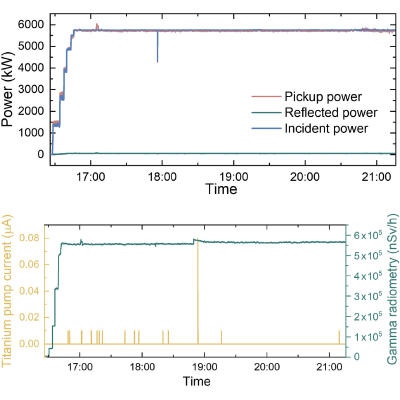

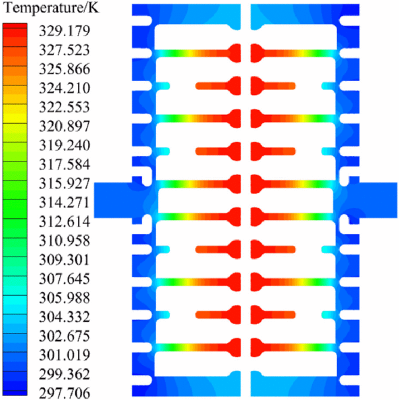

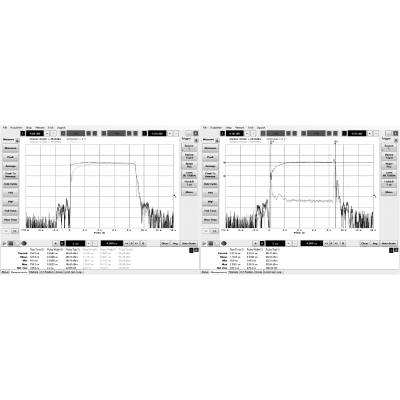

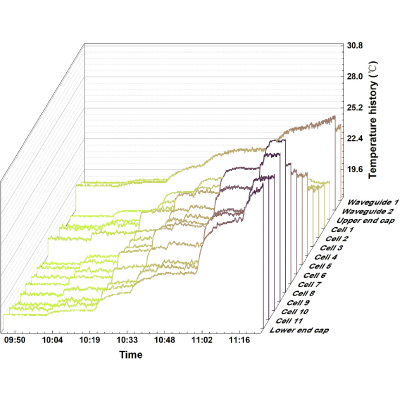

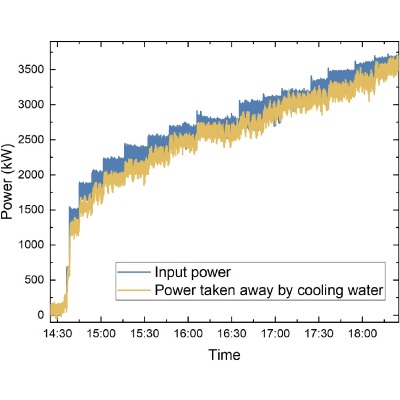

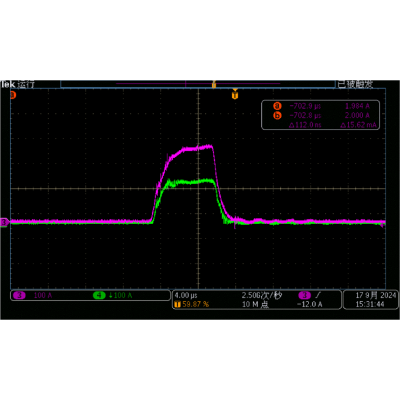

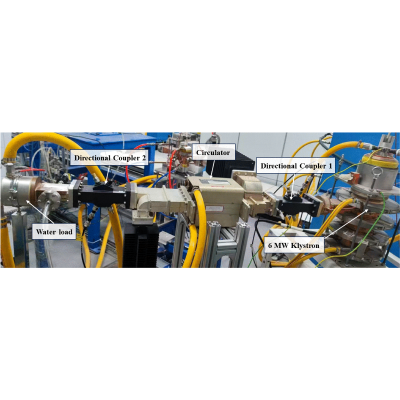

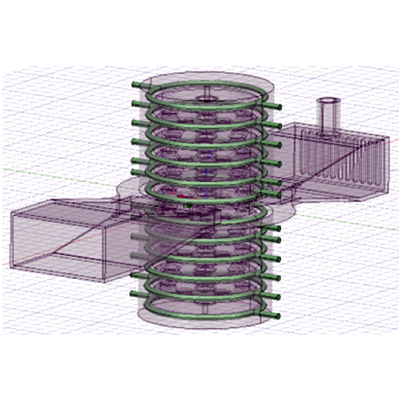

A single-periodic magnetically coupled standing-wave accelerating structure prototype operating at 3 GHz for low phase velocity particles has been designed as the first tank of the 30–230 MeV accelerating section for the compact proton therapy linac developed by the Institute of Modern Physics, Chinese Academy of Sciences. Fabrication and rf measurement of the prototype have been completed. High-power test of the prototype was performed. The cavity could operate stably at the effective input power of around 5.7 MW, corresponding to the accelerating gradient of 38  MV/m at the pulse length of 5  μs and the repetition rate of 70 Hz. Further increasing the duty factor to 0.1%, the accelerating gradient decreased to 24  MV/m due to the uneven cooling of each single cell. The details of the high-power test setup and preparation, the process of rf conditioning, and the high-power test results are described in this paper. Limiting factors for higher accelerating gradients with high duty factors are discussed, and two novel cooling channel schemes are described.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (23)

  1. V. Surrenti, F. Ambrosini, G. Bazzano et al., RF system design for the TOP-IMPLART accelerator, in Proceedings of 6th International Particle Accelerator Conference (IPAC’15), Richmond, VA, USA (JACoW, Geneva, Switzerland, 2015), 10.18429/JACoW-IPAC2015-MOPHA047.
  2. C. Ronsivalle, A. Ampollini, G. Bazzano et al., The TOP-IMPLART linac: Machine status and experimental activity, in Proceedings of International Particle Accelerator Conference (IPAC’17), Copenhagen, Denmark (JACoW, Geneva, Switzerland, 2017), 10.18429/JACoW-IPAC2017-THPVA090.
  3. P. Nenzi, A. Ampollini, M. D. Astorino et al., Status of the TOP-IMPLART proton linac, in Proceedings of 31st International Linear Accelerator Conference (LINAC’22) (JACoW, Geneva, Switzerland, 2022), 10.18429/JACoW-LINAC2022-MOPOGE02.
  4. C. Ronsivalle, M. Carpanese, C. Marino et al., The TOP-IMPLART project, Eur. Phys. J. Plus 126, 1 (2011).
  5. P. S. A. Degiovanni and D. Ungaro, LIGHT: A linear accelerator for proton therapy, in Proceedings of NAPAC2016, Chicago, IL, USA (2016).
  6. B. B. Baricevic, A. Bardorfer, R. Cerne et al., Light proton therapy linac LLRF system development, in Proceedings of 29th Linear Accelerator Conference, LINAC2018: Beijing, China (JACoW Publishing, Geneva, Switzerland, 2018), MOPO081, 10.18429/JACoW-LINAC2018-MOPO081.
  7. A. Degiovanni, G. De Michele, R. Bonomi et al., Design, integration, and commissioning of the first linac for image guided hadron therapy prototype, Phys. Rev. Accel. Beams 27, 054701 (2024).
  8. Fighting cancer with LIGHT, https://home.cern/news/news/knowledge-sharing/fighting-cancer-light (2022).
  9. A. Degiovanni, U. J. Amaldi, D. Bergesio et al., Design of a fast-cycling high-gradient rotating linac for protontherapy, in Proceedings of 4th International Particle Accelerator Conference (IPAC 2013), Shanghai, China (2013).
  10. S. Benedetti, A. Grudiev, and A. Latina, High gradient linac for proton therapy, Phys. Rev. Accel. Beams 20, 040101 (2017).
  11. S. Benedetti, U. Amaldi, A. Degiovanni et al., RF design of a novel S-band backward traveling wave linac for proton therapy, in Proceedings of LINAC2014, Geneva, Switzerland (2014), THPP061.
  12. S. Benedetti, T. Argyropoulos, C. Blanch Gutiérrez et al., Fabrication and testing of a novel S-band backward travelling wave accelerating structure for proton therapy linacs, in Proceedings of Linear Accelerator Conference (LINAC’16), East Lansing, MI, USA (JACoW Publishing, Geneva, Switzerland, 2016), MOPLR048, 10.18429/JACoW-LINAC2016-MOPLR048.
  13. A. Vnuchenko, D. Esperante Pereira, B. Gimeno Martinez et al., High-gradient testing of an S-band, normal-conducting low phase velocity accelerating structure, Phys. Rev. Accel. Beams 23, 084801 (2020).
  14. A. Vnuchenko, S. Benedetti, C. Blanch Gutiérrez et al., High gradient performance of an S-band backward traveling wave accelerating structure for medical hadron therapy accelerators, in Proceedings of 9th International Particle Accelerator Conference (IPAC’18), Vancouver, BC, Canada (JACoW Publishing, Geneva, Switzerland, 2018), MOPML043, 10.18429/JACoW-IPAC2018-MOPML043.
  15. Y. Zhang, W. C. Fang, X. X. Huang et al., Design, fabrication, and cold test of an S-band high-gradient accelerating structure for compact proton therapy facility, Nucl. Sci. Tech. 32, 38 (2021).
  16. Y. Zhang, W. C. Fang, X. X. Huang et al., Radio frequency conditioning of an S-band accelerating structure prototype for compact proton therapy facility, Nucl. Sci. Tech. 32, 64 (2021).
  17. U. Amaldi, S. Braccini, and P. Puggioni, High frequency linacs for hadrontherapy, Rev. Accel. Sci. Tech. 02, 111 (2009).
  18. W. Qin, Y. Huang, Y. He et al., S-band high-gradient low β single-periodic magnetically coupled standing-wave accelerating structure for a proton therapy linac, Phys. Rev. Accel. Beams 27, 092002 (2024).
  19. X. Li, R. Huang, W. Dou et al., Beam dynamics design and rf parameter optimization in SCDTL cavities: Theoretical analysis, prototype development and cold-test results, Int. J. Mod. Phys. A 40, 2550155-1 (2025).
  20. T. Rao and D. Dowell, An engineering guide to photoinjectors, arXiv:1403.7539.
  21. A. Degiovanni, Present and possible future schemes for hadron therapy linacs, in HG2017 Workshop, Valencia, LIGHT 70MeV - Energy modulation (2017), https://indico.cern.ch/event/589548/contributions/2619939/attachments/1477829/2290116/2017_06_16_HG17Workshop__AD.pdf.
  22. ansys fluent, https://www.ansys.com/zh-CN/products/fluids/ansys-fluent (2025).
  23. ansys cfx, https://www.ansys.com/products/fluids/ansys-cfx (2025).
