Beam optics ramping in underconstrained lattice design: Application to Electron-Ion Collider hadron storage ring cooling section

Derong Xu*

  • *Contact author: dxu@bnl.gov
PDF

Phys. Rev. Accel. Beams 28, 084002 – Published 22 August, 2025

DOI: https://doi.org/10.1103/86y4-h97k

Abstract

This paper presents the lattice design and optics ramping strategy for the cooling section of the hadron storage ring at the electron-ion collider. The main challenge is that available tuning knobs exceed beam-optics constraints. Independently optimized injection and top-energy optics often yield disconnected solutions, making interpolation impossible. To address this, we propose two new methods. The first is an intermediate-penalty scheme that ensures ramping path continuity by penalizing constraint violations at intermediate states. The second is a continuation-based approach that adapts high-energy optics to low energy, guided by an adaptive weighting scheme to balance injection and ramping constraints. The solutions meet all beam dynamics and hardware limits. The two methods offer a general strategy for ramping in systems where the solution space is under-constrained and the starting and target configurations are far apart.

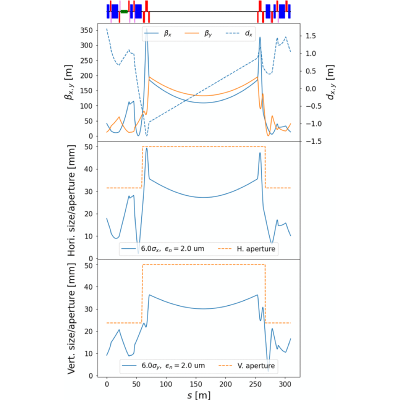

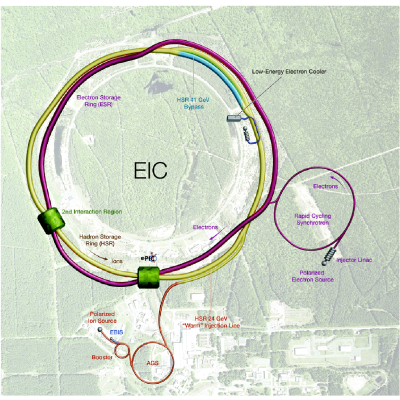

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (25)

  1. M. S. Camillocci, S. Redaelli, R. Tomás, and J. Wenninger, Combined ramp and squeeze to 6.5 TeV in the LHC, in Proceedings of the International Particle Accelerator Conference (IPAC-2016), Busan, Korea (JACoW, Geneva, Switzerland, 2016), Vol. 7, pp. 1509–1512, 10.18429/JACoW-IPAC2016-TUPMW031.
  2. V. Morozov et al., Correction of the detector solenoid effect in the hadron storage ring of the electron-ion collider, in Proceedings of the IPAC-2024, 15th International Particle Accelerator Conference No. 15 (JACoW, Geneva, Switzerland, 2024), pp. 156–159.
  3. F. Willeke and J. Beebe-Wang, Electron ion collider conceptual design report 2021, Technical Report, Brookhaven National Laboratory (BNL), Upton, NY; Thomas Jefferson National Accelerator Facility (TJNAF), Newport News, VA, Report No. BNL-221006--2021-FORE, 2021, 10.2172/1765663.
  4. S. R. Mane, Y. M. Shatunov, and K. Yokoya, Siberian snakes in high-energy accelerators, J. Phys. G 31, R151 (2005).

  5. This paper follows the same naming convention for other regions, such as IR8.

  6. A. Fedotov, Z. Altinbas, S. Belomestnykh, I. Ben-Zvi, M. Blaskiewicz, M. Brennan, D. Bruno, C. Brutus, M. Costanzo, A. Drees et al., Experimental demonstration of hadron beam cooling using radio-frequency accelerated electron bunches, Phys. Rev. Lett. 124, 084801 (2020).
  7. W. Bergan, P. Baxevanis, M. Blaskiewicz, E. Wang, and G. Stupakov, Design of an MBEC cooler for the EIC, in Proceedings of the IPAC-2021 (JACoW, Geneva, Switzerland, 2021), p. 1819.
  8. H. Zhao, J. Kewisch, M. Blaskiewicz, and A. Fedotov, Ring-based electron cooler for high energy beam cooling, Phys. Rev. Accel. Beams 24, 043501 (2021).
  9. W. F. Bergan et al., Coherent electron cooling physics for the EIC, in Proceedings of the IPAC-2024, 15th International Particle Accelerator Conference No. 15 (JACoW, Geneva, Switzerland, 2024), pp. 2937–2942.
  10. Y. Luo, D. Xu, M. Blaskiewicz, and C. Montag, Experimental demonstration of a large transverse emittance ratio 11:1 in the relativistic heavy ion collider for the electron-ion collider, Phys. Rev. Lett. 132, 205001 (2024).
  11. Brookhaven National Laboratory, RHIC Configuration Manual (Collider-Accelerator Department, Upton, 2006).
  12. M. Gomez, leastsquaresoptim.jl, https://github.com/matthieugomez/LeastSquaresOptim.jl (2018).
  13. R. Feldt and A. Stukalov, blackboxoptim.jl, https://github.com/robertfeldt/BlackBoxOptim.jl (2025).
  14. J. Kewisch, J. van Zeijts, S. Peggs, and T. Satogata, Ramp management in RHIC, in Proceedings of the 1999 Particle Accelerator Conference (Cat. No. 99CH36366) (IEEE, New York, 1999), Vol. 2, pp. 705–707.
  15. S. Redaelli, M. Lamont, J. Wenninger, G. Muller, X. Buffat, M. Camillocci, and R. Tomas, Operation of the betatron squeeze at the LHC, in Proceedings of the International Particle Accelerator Conference (IPAC-2013), Shanghai, China (JACoW, Geneva, Switzerland, 2013), pp. 1430–1432.
  16. E. W. Dijkstra, A note on two problems in connexion with graphs, in Edsger Wybe Dijkstra: His Life, Work, and Legacy (Association for Computing Machinery, New York, NY, 2022), pp. 287–290, 10.1145/3544585.3544600.
  17. S.-J. Liao. The proposed homotopy analysis technique for the solution of nonlinear problems, Ph.D. thesis, Shanghai Jiao Tong University Shanghai, 1992.
  18. E. L. Allgower and K. Georg, Introduction to Numerical Continuation Methods (SIAM, Philadelphia, 2003).
  19. P. Amstutz, T. Plath, S. Ackermann, J. Bödewadt, C. Lechner, and M. Vogt, Confining continuous manipulations of accelerator beam-line optics, Phys. Rev. Accel. Beams 20, 042802 (2017).
  20. J. Wan, H. Alamprese, C. Ratcliff, J. Qiang, and Y. Hao, jutrack: A julia package for auto-differentiable accelerator modeling and particle tracking, Comput. Phys. Commun. 309, 109497 (2025).
  21. J. S. Berg et al., Lattice design for the hadron storage ring of the electron-ion collider, in Proceedings of the IPAC-2023, 14th International Particle Accelerator Conference No. 14 (JACoW, Geneva, Switzerland, 2023), pp. 903–905.
  22. C. Liu et al., Reconfiguration of RHIC straight sections for the EIC, in Proceedings of the IPAC-2022, International Particle Accelerator Conference No. 13 (JACoW, Geneva, Switzerland, 2022), pp. 1916–1919.
  23. S. Nagaitsev, D. Broemmelsiek, A. Burov, K. Carlson, C. Gattuso, M. Hu, T. Kroc, L. Prost, S. Pruss, M. Sutherland, C. W. Schmidt, A. Shemyakin, V. Tupikov, A. Warner, G. Kazakevich, and S. Seletskiy, Experimental demonstration of relativistic electron cooling, Phys. Rev. Lett. 96, 044801 (2006).
  24. L. Deniau, H. Grote, G. Roy, and F. Schmidt, The MAD-X Program User’S Reference Manual (JACoW, Geneva, 2023).
  25. S. Verdú-Andrés et al., A beam screen to prepare the RHIC vacuum chamber for EIC hadron beams: Conceptual design and requirements, in Proceedings of the IPAC-2021, International Particle Accelerator Conference No. 12 (JACoW, Geneva, Switzerland, 2021), pp. 2066–2069, 10.18429/JACoW-IPAC2021-TUPAB260.
