Cryogenics of a superconducting LINAC: SPIRAL2 from commissioning to operation

Adnan Ghribi1,2, Muhammad Aburas1,3, Pierre-Emmanuel Bernaudin1,3, Patrick Bonnay3, François Bonne3, Frédéric Bouly2, Marco Di Giacomo1,3, Charly Lassalle1,4, David Longuevergne2 et al.

François Millet3, Jean-Pierre Thermeau2, Arnaud Trudel1,3, Quentin Tura1,2, and Adrien Vassal1,4

PDF

Phys. Rev. Accel. Beams 28, 081601 – Published 29 August, 2025

DOI: https://doi.org/10.1103/82xr-d9gc

Abstract

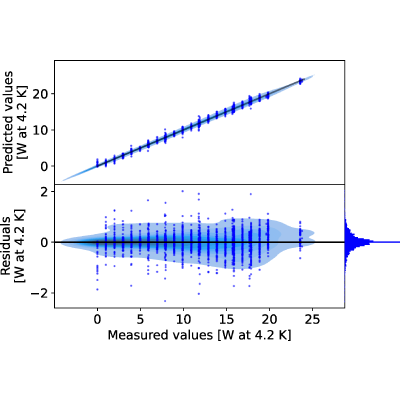

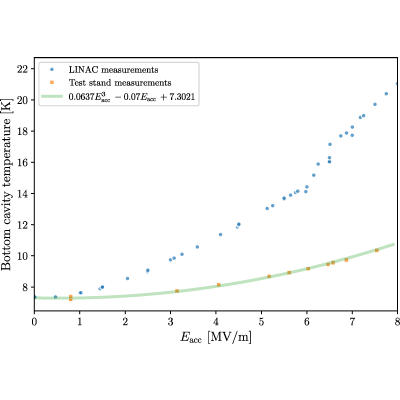

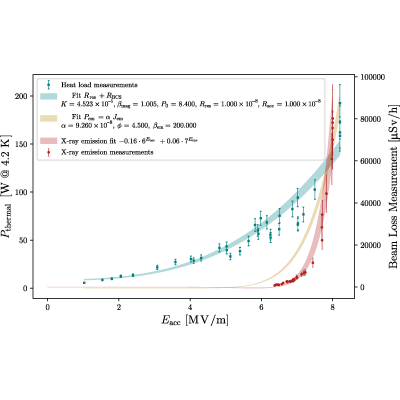

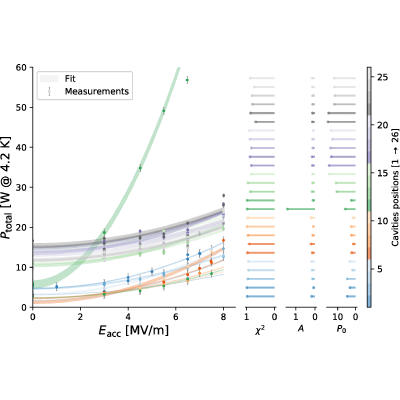

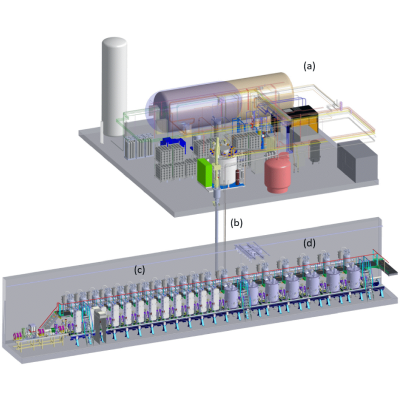

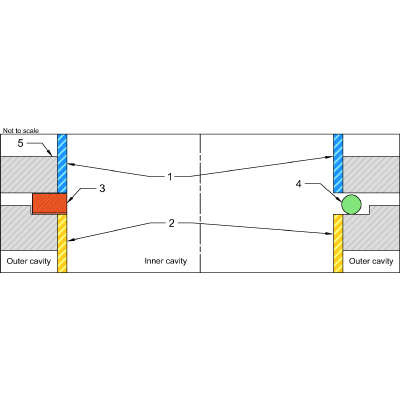

The SPIRAL2 superconducting linear accelerator (LINAC), which has been operational since 2019, employs superconducting, independently phased rf resonators to deliver a wide range of particle beams. Designed for flexibility in particle types, intensities, and energies, it utilizes superconducting quarter-wave resonators, the performance of which is critically dependent on the reliability of the cryogenic operation. This paper reviews the evolution of the SPIRAL2 cryogenic system from commissioning to routine operation, which was initially commissioned in 2017. It highlights the key challenges encountered, including thermoacoustic oscillations, thermal management, and the abnormal behavior of cavities. In addition, it explores the integration of thermodynamic modelling and machine learning techniques to enhance system control and diagnose problems. This work serves as a comprehensive resource for advancing cryogenic operations and the performance of superconducting LINACs.

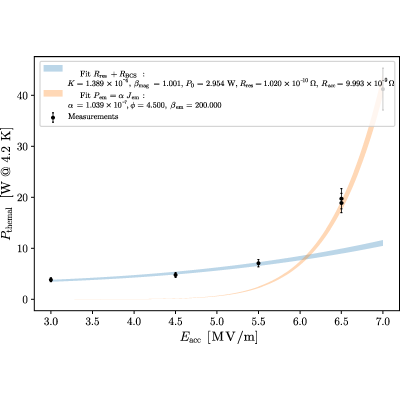

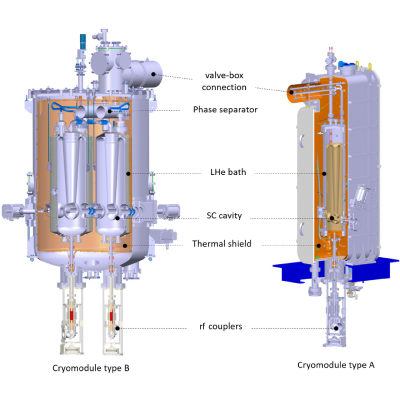

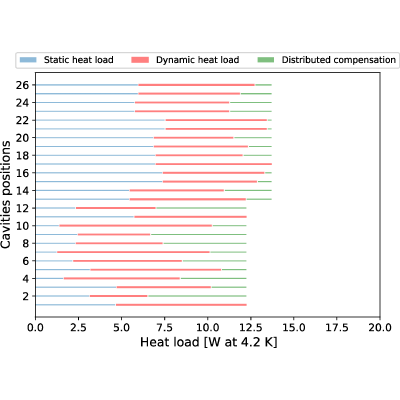

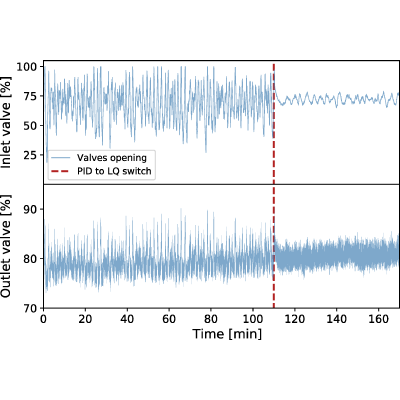

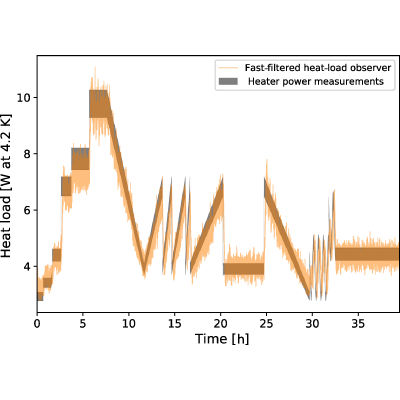

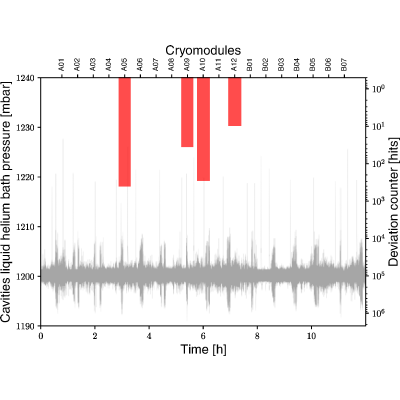

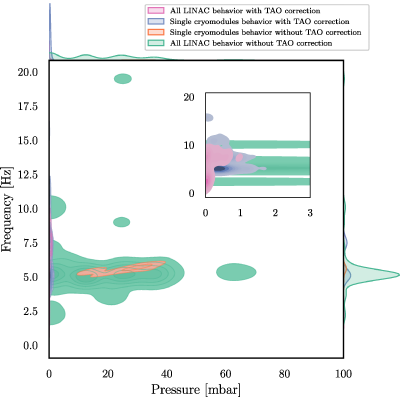

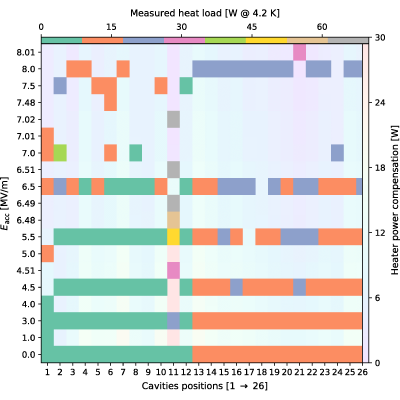

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (29)

  1. A. Ghribi, P.-E. Bernaudin, A. Vassal, and F. Bonne, Status of the SPIRAL 2 LINAC cryogenic system, Cryogenics 85, 44 (2017).
  2. D. Longuevergne, N. Gandolfo, G. Olry, H. Saugnac, S. Blivet, G. Martinet, and S. Bousson, An innovative tuning system for superconducting accelerating cavities, Nucl. Instrum. Methods Phys. Res., Sect. A 749, 7 (2014).
  3. P. Bernaudin, R. Ferdinand, P. Bosland, C. Marchand, D. Longuevergne, G. Olry, and Y. G. Martínez, SPIRAL2 cryomodule production result and analyses, in Proceedings of the 27th Linear Accelerator Conference-LINAC14 (2014), pp. 814–818, https://inspirehep.net/literature/1363525.
  4. A. Vassal, F. Bonne, A. Ghribi, F. Millet, P. Bonnay, and P. Bernaudin, Dynamic modeling and control of the SPIRAL2 cryomodules, IOP Conf. Ser. 502, 012111 (2019).
  5. F. Bonne, S. Varin, A. Vassal, P. Bonnay, C. Hoa, F. Millet, and J.-M. Poncet, Simcryogenics: A library to simulate and optimize cryoplant and cryodistribution dynamics, IOP Conf. Ser. 755, 012076 (2020).
  6. L. A. McGee, S. F. Schmidt, L. A. Mcgee, and S. F. Sc, Discovery of the Kalman Filter as a Practical Tool for Aerospace and Industry (National Aeronautics and Space Administration, Ames Research, Citeseer, Moffett Field, CA, 1985).
  7. L. Torres, J. Jiménez-Cabas, O. González, L. Molina, and F.-R. López-Estrada, Kalman filters for leak diagnosis in pipelines: Brief history and future research, J. Mar. Sci. Eng. 8, 173 (2020).
  8. M. Zeitz, The extended Luenberger observer for nonlinear systems, Syst. Control Lett. 9, 149 (1987).
  9. A. Vassal. Etude d’un réseau cryogénique multi-clients pour SPIRAL2, Ph.D. thesis, University of Caen Normandie, Normandie, 2019.
  10. W. Weingarten, Field-dependent surface resistance for superconducting niobium accelerating cavities, Phys. Rev. ST Accel. Beams 14, 101002 (2011).
  11. D. Longuevergne, Geometrical corrections for accurate fitting of the field dependent surface resistance for superconducting accelerating cavities, Nucl. Instrum. Methods Phys. Res., Sect. A 910, 41 (2018).
  12. A. Ghribi, K. Cassou, B. Dalena, A. Eichler, H. Guler, A. K. Mistry, A. Oeftiger, T. Shea, G. Valentino, and C. P. Welsch, Artificial intelligence for advancing particle accelerators, Europhys. News 56, 15 (2025).
  13. D. E. Rumelhart, G. E. Hinton, and R. J. Williams, Learning representations by back-propagating errors, Nature (London) 323, 533 (1986).
  14. Y. Lecun, L. Bottou, Y. Bengio, and P. Haffner, Gradient-based learning applied to document recognition, in Proceedings of the IEEE (IEEE, New York, 1998), Vol. 86, pp. 2278–2324),10.1109/5.726791.
  15. Y. Zheng, Q. Liu, E. Chen, Y. Ge, and J. L. Zhao, Time series classification using multi-channels deep convolutional neural networks, in Web-Age Information Management, edited by F. Li, G. Li, S.-W. Hwang, B. Yao, and Z. Zhang (Springer International Publishing, New York, 2014), pp. 298–310.
  16. S. Hochreiter and J. Schmidhuber, Long short-term memory, Neural Comput. 9, 1735 (1997).
  17. M.-T. Luong, H. Pham, and C. D. Manning, Effective approaches to attention-based neural machine translation, arXiv:1508.04025.
  18. D. Wolpert, Stacked generalization, Neural Netw. 5, 241 (1992).
  19. D. P. Kingma and J. Ba, Adam: A method for stochastic optimization, arXiv:1412.6980.
  20. J. Gawlikowski, C. R. N. Tassi, M. Ali, J. Lee, M. Humt, J. Feng, A. Kruspe, R. Triebel, P. Jung, R. Roscher, M. Shahzad, W. Yang, R. Bamler, and X. X. Zhu, A survey of uncertainty in deep neural networks, arXiv:2107.03342.
  21. A. Ghribi, M. Aburas, A. Alhaffar, P.-E. Bernaudin, P. Duthil, M. Nemer, and J.-P. Thermeau, Cryogenic thermoacoustics in the SPIRAL2 LINAC, Cryogenics 124, 103487 (2022).
  22. I. H. Bell, J. Wronski, S. Quoilin, and V. Lemort, Pure and pseudo-pure fluid thermophysical property evaluation and the open-source thermophysical property library coolprop, Ind. Eng. Chem. Res. 53, 2498 (2014).
  23. D. Longuevergne, Etude et test d’un module accélérateur supraconducteur pour le projet Spiral2, Ph.D. thesis, Université Paris Sud-Paris XI, 2009.
  24. R. Fowler and L. Nordheim, Electron emission in intense electric fields, Proc. R. Soc. A, 119, 173 (1928).
  25. Y. G. Martínez, M. Baylac, P. Boge, T. Cabanel, P. De Lamberterie, J. Giraud, F. Vezzu, F. Chatelet, C. Joly, J. Lesrel et al., Final results of power conditioning of SPIRAL2 couplers, Nucl. Instrum. Methods Phys. Res., Sect. A 870, 37 (2017).
  26. J. Knobloch and H. Padamsee, Explosive field emitter processing in superconducting rf cavities, Part. Accel. 61, 169 (1998), https://inspirehep.net/literature/492555.
  27. P. Bernaudin, R. Ferdinand, P. Bosland, G. Olry, and Y. G. Martínez, Assembling, testing and installing the SPIRAL2 superconducting LINAC, in Proceedings of the 4th International Particle Accelerator Conference, IPAC-13 (Joint Accelerator Conferences Website, Geneva, Switzerland, 2013), pp. 3752–3754.
  28. J. Walker, Boiling and the leidenfrost effect, in Fundamentals of Physics, edited by D. Halliday, R. Resnick, and J. Walker (Wiley, 2010), https://www.reed.edu/physics/332/pdf/Leidenfrost.pdf.
  29. A. Trudel, P. Bonnay, G. Duteil, A. Ghribi, and Q. Tura, Control system of the SPIRAL2 superconducting LINAC cryogenic system, in Proceedings of the ICALEPCS’21, International Conference on Accelerator and Large Experimental Physics Control Systems No. 18 (JACoW, Geneva, Switzerland, 2022), pp. 382–386.
