Suppression of overcompensation by secondary electrons for negative ion beams in residual gas

Benzheng Chen, Hui Liao, Hui Li, Yongchuan Xiao, Xiuxia Cao, Shengjin Liu, Yanliang Han, and Weidong Chen*

  • *Contact author: chenwd@ihep.ac.cn
PDF

Phys. Rev. Accel. Beams 28, 100101 – Published 17 October, 2025

DOI: https://doi.org/10.1103/6w2b-hgsm

Abstract

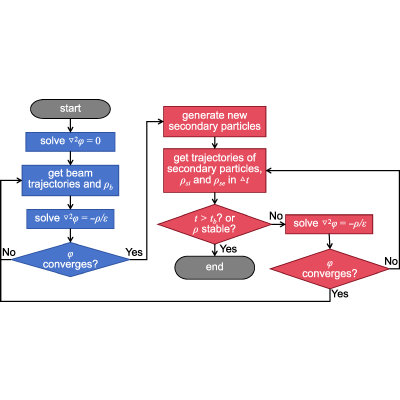

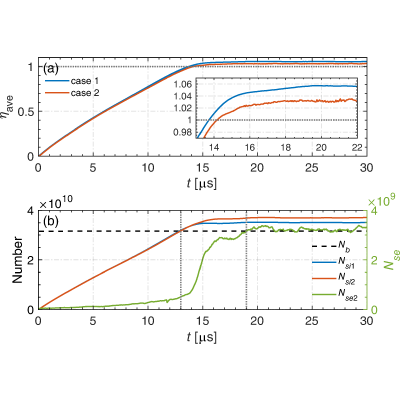

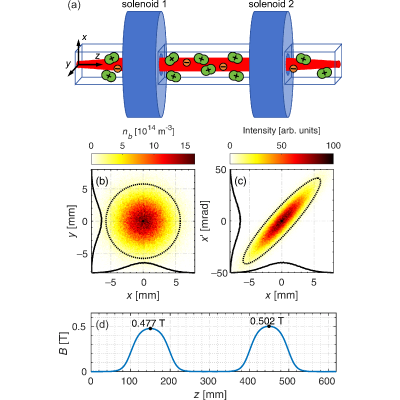

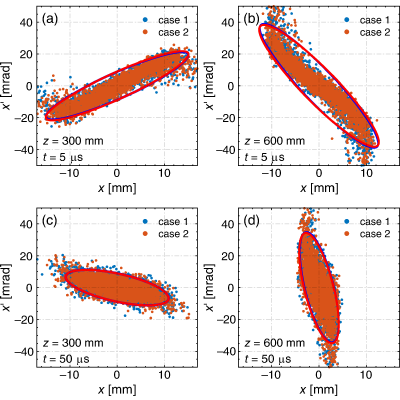

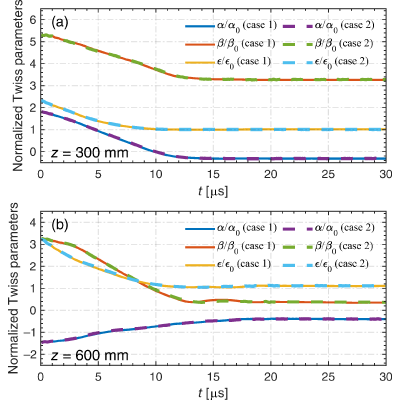

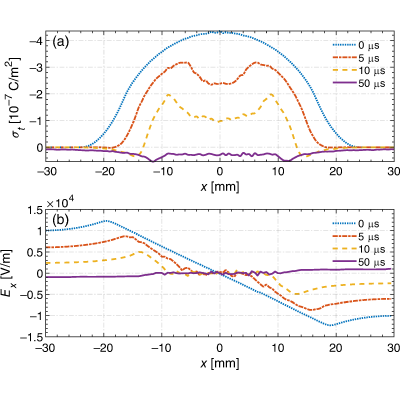

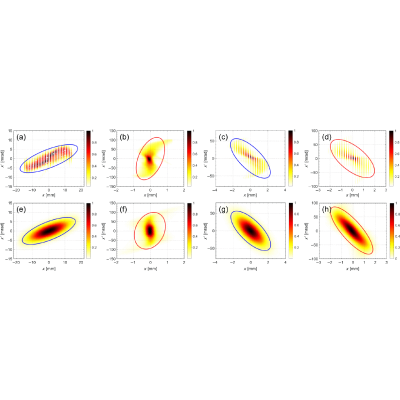

Space charge compensation (SCC) plays a crucial and foundational role in the transport of low-energy ion beams through residual gas, as it effectively mitigates beam divergence caused by space charge forces. At high residual gas pressures, the space charge compensation degree (SCCD) can exceed 100%, a situation referred to as overcompensation. In this study, a model for secondary particle production and tracking has been integrated into a beam optics calculation code to investigate the overcompensation process during the transport of a negative ion beam through residual hydrogen. The impact of secondary electrons, often overlooked, is examined in detail. The findings indicate that electrons predominantly accumulate in the overcompensation region, effectively mitigating overcompensation by leveling the potential and reducing the SCCD. Based on the electron growth rate, the accumulation process is categorized into three stages. Results pertaining to beam parameters reveal that electrons can affect the growth of beam emittance by altering the transverse potential. This research contributes to enhancing our understanding of SCC processes in the low-energy beam transport domain and improving the precision of future beam optics simulations.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (21)

  1. R. Keller, R. Thomae, M. Stockli, and R. Welton, Design, operational experiences and beam results obtained with the H− ion source and LEBT at Berkeley Lab, AIP Conf. Proc. 639, 47 (2002).
  2. W. Chen, H. Li, H. Liao, Y. Lu, X. Cao, S. Liu, Y. Xiao, and B. Chen, RF-driven H− sources of long life-time and new LEBT developed at CSNS, J. Phys. Conf. Ser. 2743, 012040 (2024).
  3. A. Ueno, J-PARC H− ion source and space-charge neutralized LEBT for 100-mA high energy and high duty factor LINACs, Rev. Sci. Instrum. 91, 033312 (2020).
  4. C. A. Valerio-Lizarraga, I. Leon-Monzon, and R. Scrivens, Negative ion beam space charge compensation by residual gas, Phys. Rev. ST Accel. Beams 18, 080101 (2015).
  5. H. Liao, W. Chen, H. Li, B. Chen, Y. Xiao, Y. Lv, X. Cao, S. Liu, J. Peng, X. Feng, and S. Liu, Removal of stripped protons produced in low-energy beam transport for superconducting linac, Phys. Rev. Accel. Beams 28, 023502 (2025).
  6. J. Ishikawa, F. Sano, and T. Takagi, Ion-beam extraction with ion space-charge compensation in beam-plasma type ion-source, J. Appl. Phys. 53, 6018 (1982).
  7. R. Becker, Space-charge compensation of thermal beams, Nuovo Cimento Soc. Ital. Fis. 106A, 1613 (1993).
  8. P. Veltri, M. Cavenago, and G. Serianni, Study of space charge compensation phenomena in charged particle beams, Rev. Sci. Instrum. 83, 02B709 (2012).
  9. P. Veltri, M. Cavenago, and G. Serianni, Spatial characterization of the space charge compensation of negative ion beams, AIP Conf. Proc. 1515, 541 (2013).
  10. E. Surrey, Space charge neutralization in the ITER negative ion beams, AIP Conf. Proc. 925, 278 (2007).
  11. S. V. Dudin and D. V. Rafalskyi, On the simultaneous extraction of positive ions and electrons from single-grid ICP source, Europhys. Lett. 88, 55002 (2009).
  12. A. BenIsmail, R. Duperrier, D. Uriot, and N. Pichoff, Space charge compensation studies of hydrogen ion beams in a drift section, Phys. Rev. ST Accel. Beams 10, 070101 (2007).
  13. F. Gérardin, N. Chauvin, A. Chancé, O. Napoly, N. Pichoft, D. Uriot, M. Baylac, D. Bondoux, and F. Bouly, Space charge compensation in low energy beam lines, in Proceedings of the International Particle Accelerator Conference (IPAC’16), Busan, Korea (JACoW, Geneva, Switzerland, 2016), Vol. 7, pp. 3055–3057, 10.18429/JACoW-IPAC2016-WEPOY033.
  14. D. Noll, M. Droba, O. Meusel, U. Ratzinger, and K. Schulte, Simulation of space-charge compensation of a low-energy proton beam in a drift section, in Proceedings of the ICFA Advanced Beam Dynamics Workshop on High-Intensity and High-Brightness Hadron Beams (HB’16), Malmö, Sweden (JACoW, Geneva, Switzerland, 2016), Vol. 57, pp. 458–462, 10.18429/JACoW-HB2016-WEPM8Y01.
  15. C. A. Valerio-Lizarraga, Emittance growth due to space charge compensation and beam intensity instabilities in negative ion beams, Phys. Rev. Accel. Beams 21, 030101 (2018).
  16. T. Kalvas, O. Tarvainen, T. Ropponen, O. Steczkiewicz, J. Arje, and H. Clark, ibsimu: A three-dimensional simulation software for charged particle optics, Rev. Sci. Instrum. 81, 02B703 (2010).
  17. J. Sherman, E. Pitcher, R. Stevens, and P. Allison, H− beam neutralization measurements in a solenoidal beam transport-system, AIP Conf. Proc. 287, 686 (1992).
  18. M. E. Rudd, R. D. Dubois, L. H. Toburen, C. A. Ratcliffe, and T. V. Goffe, Cross-sections for ionization of gases by 5-4000-keV protons and for electron-capture by 5-150-keV protons, Phys. Rev. A 28, 3244 (1983).
  19. H. Straub, P. Renault, B. Lindsay, K. Smith, and R. Stebbings, Absolute partial cross sections for electron-impact ionization of H2, N2, and O2 from threshold to 1000 eV, Phys. Rev. A 54, 2146 (1996).
  20. R. Rejoub, B. Lindsay, and R. Stebbings, Determination of the absolute partial and total cross sections for electron-impact ionization of the rare gases, Phys. Rev. A 65, 042713 (2002).
  21. K. Tokesi and R. D. Dubois, Ionization cross sections of hydrogen molecule by electron and positron impact, Int. J. Mol. Sci. 25, 3410 (2024).
