Demonstration of a code coupling framework for modeling beam-collimator impacts in the advanced photon source

A. J. Dick*, J. Dooling, M. Borland, G. Navrotksi, and Y. Lee

S. Riedel and D. Lee

N. Cook

  • *Contact author: ajdick@anl.gov
PDF

Phys. Rev. Accel. Beams 28, 123001 – Published 22 December, 2025

DOI: https://doi.org/10.1103/6k9x-xxr6

Abstract

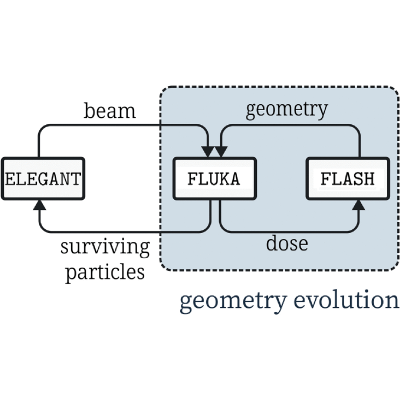

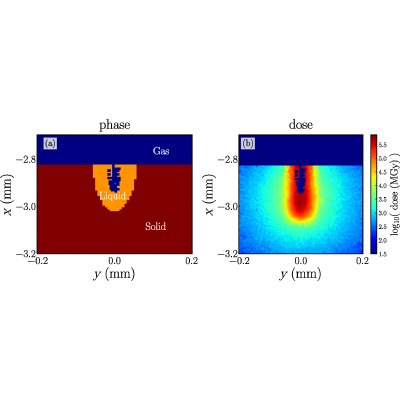

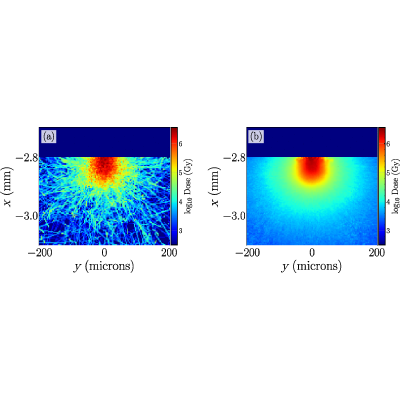

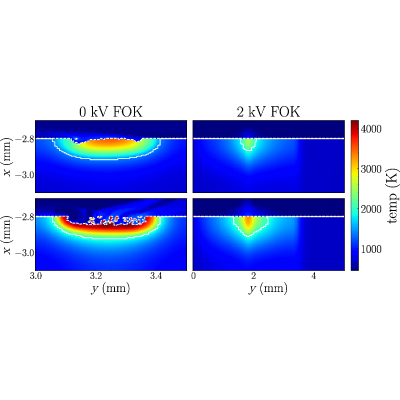

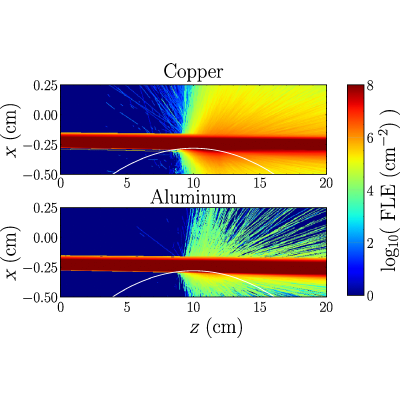

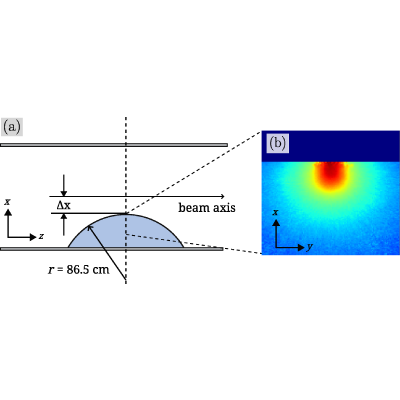

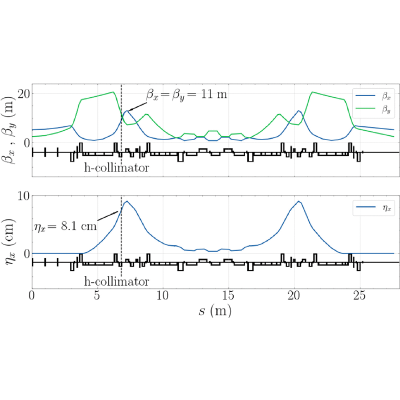

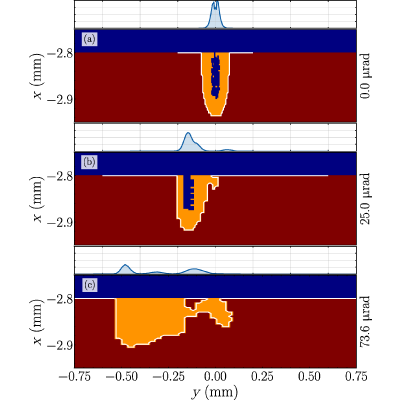

The high-brightness beams being produced in current and future accelerators present new machine protection concerns with the potential for high-energy-density (HED) conditions (>100  J/mm3) in beam-intercepting components. Simulating HED conditions in accelerators requires utilizing a suite of physics codes for particle dynamics, particle-matter interactions, and hydrodynamics. This paper describes a method of coupling the codes elegant, fluka, and flash to simulate the effects of a rapid beam loss in the advanced photon source storage ring and the resulting interaction of the beam and collimators. This paper expands previous work [J. Dooling et al., Collimator irradiation studies at the advanced photon source, in Proceedings of the IBIC-2023 (2023), pp. 245–249] by introducing a definition of the evolving geometry of the collimator surface as well as providing methods for simulating the absorption of synchrotron radiation and tracking shower particles produced during beam strikes. We demonstrate this framework by simulating machine conditions of the APS ring before and after its recent upgrade. Simulation results are compared with observed damage to collimators and test samples taken from the APS ring.

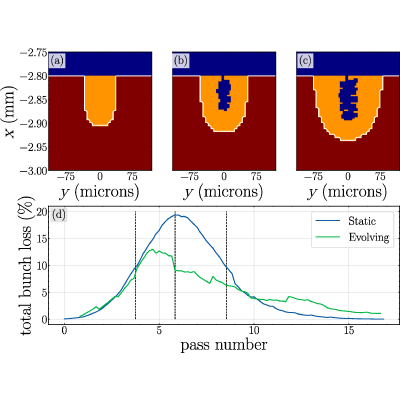

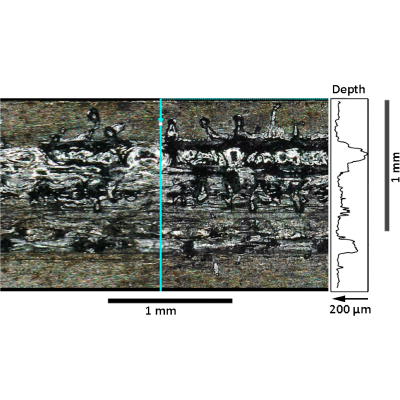

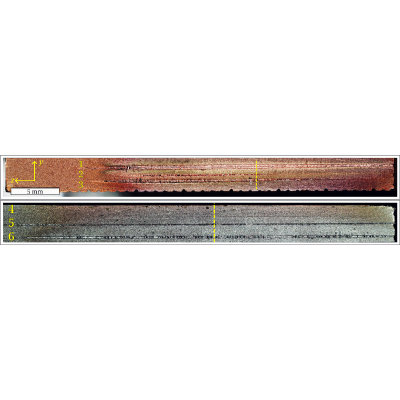

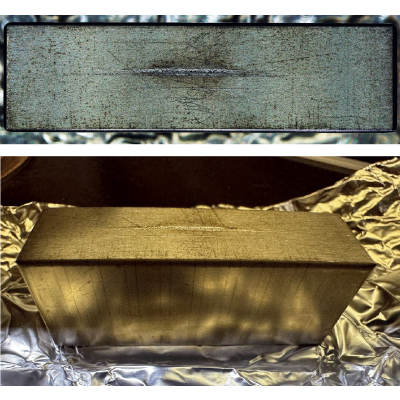

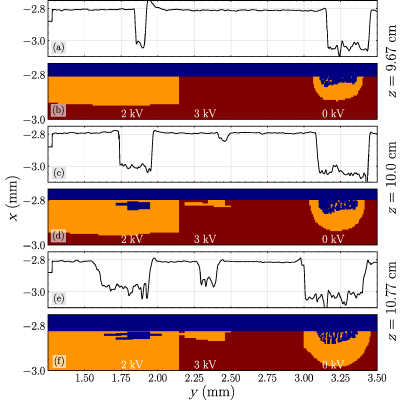

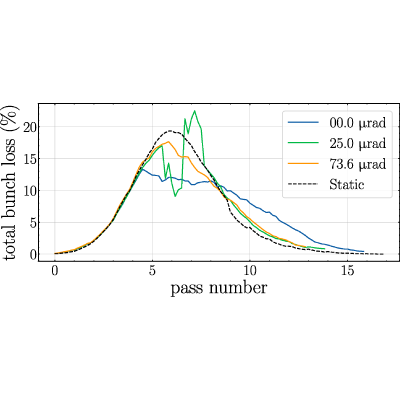

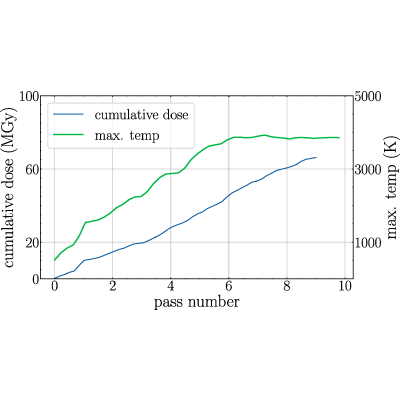

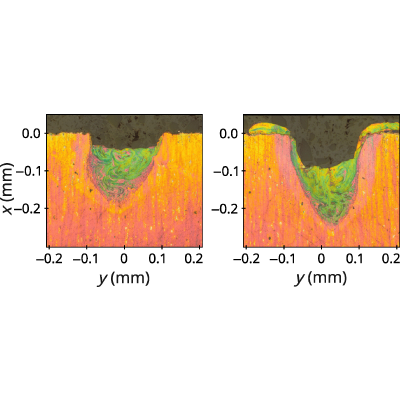

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. A. White, K. Goldberg, S. Kevan, D. Leitner, D. Robin, C. Steier, and L. Yarris, A new light for Berkeley Lab—The advanced light source upgrade, Synchrotron Radiat. News 32, 32 (2019).
  2. P. Raimondi, N. Carmignani, L. R. Carver, J. Chavanne, L. Farvacque, G. Le Bec, D. Martin, S. M. Liuzzo, T. Perron, and S. White, Commissioning of the hybrid multibend achromat lattice at the European Synchrotron Radiation Facility, Phys. Rev. Accel. Beams 24, 110701 (2021).
  3. P. Raimondi et al., The extremely brilliant source storage ring of the European Synchrotron Radiation Facility, Commun. Phys. 6, 82 (2023).
  4. P. R. Willmott and H. Braun, SLS 2.0—The upgrade of the Swiss light source, Synchrotron Radiat. News 37, 24 (2024).
  5. H. Ghasem, N. B. Kraljevic, B. Singh, and I. P. S. Martin, Lattice design for the diamond-II light source storage ring, Phys. Rev. Accel. Beams 27, 110704 (2024).
  6. J. C. Dooling, M. Borland, Y. C. Chae, and R. Lindberg, Energy deposition in the sector 37 scraper of the advanced photon source storage ring, in Proceedings of Particle Accelerator Conference (PAC2013), Pasadena, CA USA (2013), ISBN [Amazon][WorldCat].
  7. T. E. Fornek, Advanced photon source upgrade project final design report, Technical Report No. APSU-2.01-RPT-003, Argonne National Laboratory, 2019.
  8. R. P. Drake, High-Energy-Density Physics, Foundation of Inertial Fusion and Experimental Astrophysics, 2nd ed. (Springer, Berlin, 2018).
  9. R. Fuja, W. Berg, N. Arnold, G. Decker, R. Dortwegt, M. Ferguson, N. Friedman, J. Gagliano, A. Lumpkin, G. Nawrocki, and X. Wang, The APS machine protection system (MPS), AIP Conf. Proc. 390, 454 (1997).
  10. H. Shang, H. Bui, K. Schroeder, L. Emery, M. Smith, N. Sereno, P. Kallakuri, and W. Cheng, The high-level software of the beam position limits detector system for the advanced photon source upgrade storage ring, in Proceedings of the IPAC-2024 (JACoW, Geneva, Switzerland, 2024), THPG56.
  11. M. Borland, J. Dooling, R. Lindberg, V. Sajaev, and A. Xiao, Using decoherence to prevent damage to the swap-out dump for the APS upgrade, in Proceedings of the 9th International Particle Accelerator Conference, IPAC2018, Vancouver, BC, Canada (JACoW, Geneva, Switzerland, 2018), 10.18429/JACoW-IPAC2018-TUPMK004.
  12. J. Dooling et al., Collimator irradiation studies in the Argonne Advanced Photon Source at energy densities expected in next-generation storage ring light sources, Phys. Rev. Accel. Beams 25, 043001 (2022).
  13. N. A. Tahir, J. B. Sancho, A. Shutov, R. Schmidt, and A. R. Piriz, Impact of high energy high intensity proton beams on targets: Case studies for super proton synchrotron and large hadron collider, Phys. Rev. ST Accel. Beams 15, 051003 (2012).
  14. M. Scapin, L. Peroni, V. Boccone, and F. Cerutti, Effects of high-energy intense multi-bunches proton beam on materials, Comput. Struct. 141, 74 (2014).
  15. A. Bertarelli, Beam-induced damage mechanisms and their calculation, in Proceedings of the Joint International Accelerator School: Beam Loss and Accelerator Protection, Newport Beach, USA, edited by R. Schmidt (CERN, Geneva, Switzerland, 2016), pp. 159–227; Report No. CERN-2016-002, 10.5170/CERN-2016-002.159159.
  16. E. Quaranta, A. Bertarelli, R. Bruce, F. Carra, F. Cerutti, A. Lechner, S. Redaelli, E. Skordis, and P. Gradassi, Modeling of beam-induced damage of the LHC tertiary collimators, Phys. Rev. Accel. Beams 20, 091002 (2017).
  17. N. A. Tahir, F. Burkart, R. Schmidt, A. Shutov, and A. R. Piriz, Review of hydrodynamic tunneling issues in high power particle accelerators, Nucl. Instrum. Methods Phys. Res., Sect. B 427, 70 (2018).
  18. Y. Nie, C. Fichera, L. Mettler, F. Carra, R. Schmidt, N. A. Tahir, A. Bertarelli, and D. Wollmann, Simulation of hydrodynamic tunneling induced by high-energy proton beam in copper by coupling computer codes, Phys. Rev. Accel. Beams 22, 014501 (2019).
  19. E. Skordis, V. Vlachoudis, R. Bruce, F. Cerutti, A. Ferrari, A. Lechner, A. Mereghetti, P. G.Ortega, S. Redaelli, and D. Sinuela Pastor, FLUKA coupling to Sixtrack, in Proceedings of ICFA Mini-Workshop on Tracking for Collimation in Particle Accelerator (CERN, Geneva, Switzerland, 2018), Vol. 2/2018, CERN-2018-011-CP.
  20. S. Agostinelli, J. Allison, K. Amako et al., geant4—A simulation toolkit, Nucl. Instrum. Methods Phys. Res., Sect. A 506, 250 (2003).
  21. T. J. Roberts and D. M. Kaplan, g4beamline simulation program for matter-dominated beamlines, in Proceedings of the 2007 IEEE Particle Accelerator Conference (PAC) (IEEE, Albuquerque, 2007), pp. 3468–3470.
  22. M. Borland, elegant: A flexible SDDS-compliant code for accelerator simulation, Technical Report No. LS-287, Argonne National Laboratory, 2000.
  23. G. Battistoni, T. Boehlen, F. Cerutti, P. W. Chin, L. S. Esposito, A. Fassò, A. Ferrari, A. Lechner, A. Empl, A. Mairani, A. Mereghetti, P. G. Ortega, J. Ranft, S. Roesler, P. R. Sala, V. Vlachoudis, and G. Smirnov, Overview of the fluka code, Ann. Nucl. Energy 82, 10 (2015).
  24. B. Fryxell, K. Olson, P. Ricker, F. X. Timmes, M. Zingale, D. Q. Lamb, P. MacNeice, R. Rosner, J. W. Truran, and H. Tufo, flash: An adaptive mesh hydrodynamics code for modeling astrophysical thermonuclear flashes, Astrophys. J. Suppl. Ser. 131, 273 (2000).
  25. Laboratory Computing Resource Center, Argonne National Laboratory, Improv high-performance computing system, https://www.lcrc.anl.gov/systems/improv.
  26. D. Einfeld and M. Plesko, A modified QBA optics for low emittance storage rings, Nucl. Instrum. Methods Phys. Res., Sect. A 335, 402 (1993).
  27. J. Dooling et al., Testing of a fan-out kicker to protect collimators from low-emittance whole-beam aborts in the advanced photon source storage ring, in Proceedings of the International Particle Accelerator Conference (IPAC-2023) (JACoW, Geneva, Switzerland, 2023), Vol. 14, pp. 404–407.
  28. A. Dubey, K. Antypas, A. C. Calder, C. Daley, B. Fryxell, J. B. Gallagher, D. Q. Lamb, D. Lee, K. Olson, L. B. Reid et al., Evolution of flash, a multi-physics scientific simulation code for high-performance computing, Int. J. High Perform. Comput. Appl. 28, 225 (2014).
  29. P. Tzeferacos, M. Fatenejad, N. Flocke, C. Graziani, G. Gregori, D. Lamb, D. Lee, J. Meinecke, A. Scopatz, and K. Weide, flash mhd simulations of experiments that study shock-generated magnetic fields, High Energy Density Phys. 17, 24 (2015).
  30. J. Meinecke, P. Tzeferacos, A. Bell, R. Bingham, R. Clarke, E. Churazov, R. Crowston, H. Doyle, R. P. Drake, R. Heathcote et al., Developed turbulence and nonlinear amplification of magnetic fields in laboratory and astrophysical plasmas, Proc. Natl. Acad. Sci. U.S.A. 112, 8211 (2015).
  31. C. Graziani, P. Tzeferacos, D. Lee, D. Q. Lamb, K. Weide, M. Fatenejad, and J. Miller, The Biermann catastrophe in numerical magnetohydrodynamics, Astrophys. J. 802, 43 (2015).
  32. J. Meinecke, H. Doyle, F. Miniati, A. R. Bell, R. Bingham, R. Crowston, R. Drake, M. Fatenejad, M. Koenig, Y. Kuramitsu et al., Turbulent amplification of magnetic fields in laboratory laser-produced shock waves, Nat. Phys. 10, 520 (2014).
  33. D. Lee and A. E. Deane, An unsplit staggered mesh scheme for multidimensional magnetohydrodynamics, J. Comput. Phys. 228, 952 (2009).
  34. D. Lee, A solution accurate, efficient and stable unsplit staggered mesh scheme for three dimensional magnetohydrodynamics, J. Comput. Phys. 243, 269 (2013).
  35. J. C. Dooling et al., Simulations of beam strikes on advanced photon source upgrade collimators using flash, mars, and elegant, in Proceedings of the IPAC-2021 (JACoW, Geneva, Switzerland, 2021), pp. 2562–2565.
  36. J. Hust and A. Lankford, Thermal conductivity of aluminum, copper, iron, and tungsten for temperatures from 1 K to the melting point, National Institute of Standards and Technology, Gaithersburg, MD, [online], 10.6028/NBS.IR.84-3007.
  37. M. Leitner, T. Leitner, A. Schmon, K. Aziz, and G. Pottlacher, Thermophysical properties of liquid aluminum, Metall. Mater. Trans. A 48, 3036 (2017).
  38. J. A. Cahill and A. D. Kirshenbaum, The density of liquid copper from its melting point (1356 K.) to 2500 K. and an estimate of its critical constants, J. Phys. Chem. 66, 1080 (1962).
  39. M. J. Assael, A. Chatzimichailidis, K. D. Antoniadis, W. A. Wakeham, M. L. Huber, and H. Fukuyama, Reference correlations for the thermal conductivity of liquid copper, gallium, indium, iron, lead, nickel and tin, High Temp. High Press. 46, 391 (2017), https://pmc.ncbi.nlm.nih.gov/articles/PMC5772911/.
  40. R. Honig, Vapor pressure data for the more common elements, Technical Report No. RB-104, RCA Industry Service Laboratory, 1957.
  41. A. Piwinski, Impedances in lossy elliptical vacuum chambers, Technical Report No. DESY 94-068, Deutsches Elektronen-Synchrotron DESY, 1994.
  42. J. Dooling et al., Collimator irradiation studies at the advanced photon source, Phys. Rev. Accel. Beams 25, 043001 (2022).
