High-harmonic coherent pulse generation in a storage ring using multiple-echo-enabled harmonic generation

Weihang Liu1,2, Yu Zhao1,2, Weilun Qin1,2, Yi Jiao1,*, Xiao Li1,2,†, and Sheng Wang1,2,‡

  • *Contact author: jiaoyi@ihep.ac.cn
  • †Contact author: lixiao@ihep.ac.cn
  • ‡Contact author: wangs@ihep.ac.cn
PDF

Phys. Rev. Accel. Beams 29, 093405 – Published 25 September, 2026

DOI: https://doi.org/10.1103/6gc2-41zw

Abstract

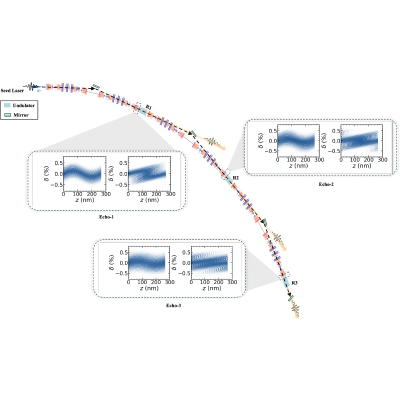

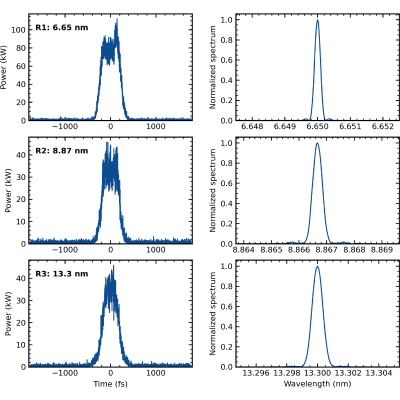

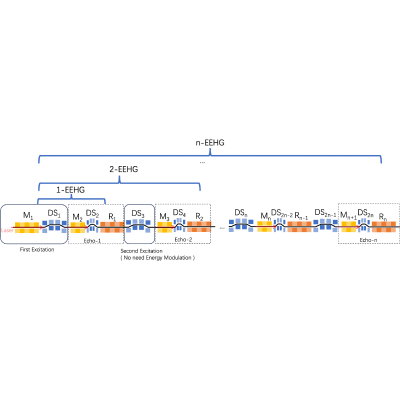

Fourth-generation storage-ring light sources have achieved transverse emittances approaching the diffraction limit at x-ray wavelengths, while their longitudinal coherence remains limited. Existing laser-modulation schemes can induce strong microbunching, but most storage-ring implementations produce only one useful coherent output from a given longitudinal region during each revolution, thereby underutilizing the intrinsic multiuser capability of storage rings. We propose a multiple-echo-enabled harmonic generation (multi-EEHG) scheme that applies successive excitation-echo cycles to the same longitudinal slice of a stored bunch within one revolution, enabling coherent-radiation delivery to multiple beamlines at different wavelengths. A general formulation of the n-stage EEHG bunching factor and a corresponding optimization procedure are derived. As an example, a triple-EEHG configuration is designed for the southern advanced photon source storage ring. Simulations demonstrate coherent radiation at multiple wavelengths with single-pulse photon numbers up to 109, corresponding to an enhancement of approximately three orders of magnitude over synchrotron radiation for the same spectral bandwidth, while achieving few-meV bandwidth without a monochromator. The proposed scheme offers a scalable approach for multibeamline coherent operation in next-generation storage-ring light sources.

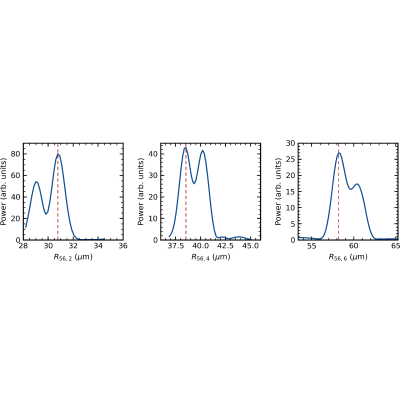

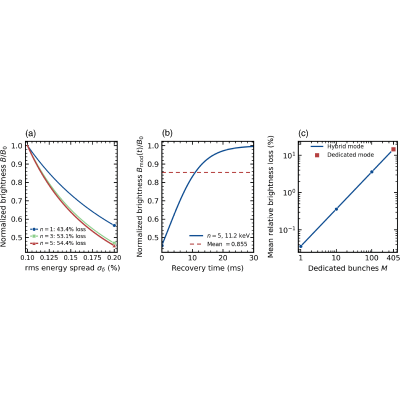

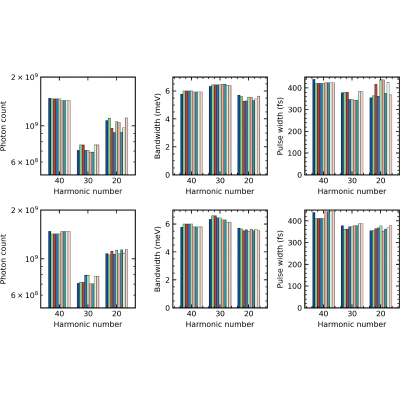

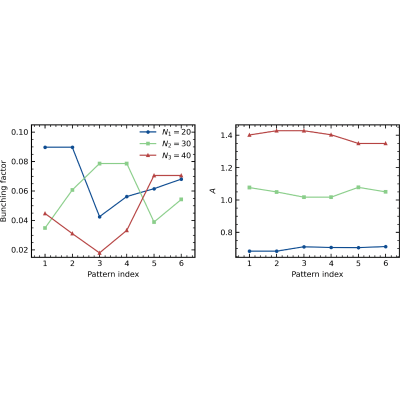

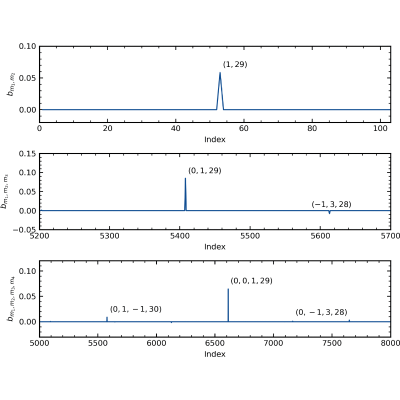

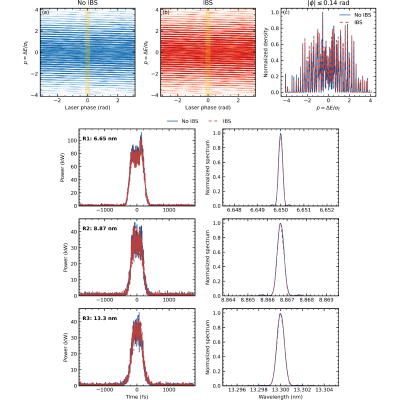

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. D. Einfeld, M. Plesko, and J. Schaper, First multi-bend achromat lattice consideration, J. Synchrotron Rad. 21, 856 (2014).
  2. G. Stupakov, Using the beam-echo effect for generation of short-wavelength radiation, Phys. Rev. Lett. 102, 074801 (2009).
  3. D. Xiang and G. Stupakov, Echo-enabled harmonic generation free electron laser, Phys. Rev. ST Accel. Beams 12, 030702 (2009).
  4. W.-H. Liu, G.-Q. Zhou, and Y. Jiao, Generating femtosecond coherent x-ray pulses in a diffraction-limited storage ring with the echo-enabled harmonic generation scheme, Nucl. Sci. Tech. 29, 143 (2018).
  5. X. Yang, G. Penn, L. H. Yu, V. Smaluk, and T. Shaftan, Optimization of echo-enabled harmonic generation toward coherent EUV and soft x-ray free-electron laser at NSLS-II, Sci. Rep. 12, 9437 (2022).
  6. C. Evain, A. Loulergue, A. Nadji, J. M. Filhol, M. E. Couprie, and A. A. Zholents, Soft x-ray femtosecond coherent undulator radiation in a storage ring, New J. Phys. 14, 023003 (2012).
  7. S. Khan et al., Echo-enabled harmonic generation at the DELTA storage ring, in Proceedings of the 15th International Particle Accelerator Conference (IPAC’24), Nashville, TN, USA (JACoW Publishing, Geneva, Switzerland, 2024), pp. 1354–1357, paper TUPG50, 10.18429/JACoW-IPAC2024-TUPG50.
  8. C. Feng and Z. Zhao, A storage ring based free-electron laser for generating ultrashort coherent EUV and x-ray radiation, Sci. Rep. 7, 4724 (2017).
  9. W. Liu, Y. Zhao, Y. Jiao, and S. Wang, Generating high repetition rate x-ray attosecond pulses in a diffraction limited storage ring, Sci. Rep. 13, 14019 (2023).
  10. W. Liu, Y. Zhao, X. Li, S. Wang, Y. Jiao, and C. Feng, Method for reversing the laser modulation in a storage ring, Phys. Rev. Accel. Beams 28, 060703 (2025).
  11. C. Li, C. Feng, and B. Jiang, Extremely bright coherent synchrotron radiation production in a diffraction-limited storage ring using an angular dispersion-induced microbunching scheme, Phys. Rev. Accel. Beams 23, 110701 (2020).
  12. B. Jiang et al., A synchrotron-based kilowatt-level radiation source for EUV lithography, Sci. Rep. 12, 3325 (2022).
  13. C. Li, B. Jiang, C. Feng, Q. Gu, Z. Bai, W. Wan, Q. Zhang, and K. Wang, Toward a storage ring coherent light source based on an angular dispersion-induced microbunching scheme, J. Synchrotron Radiat. 32, 82 (2025).
  14. Y. Lu, A. Liu, C. Li, K. Wang, Q. Zhang, W. Wan, W. Fan, J. Liu, R. Li, Y. Wang, K. Wu, J. Li, and C. Feng, Lattice design of a storage-ring-based light source for generating high-power fully coherent EUV radiation, arXiv:2511.04382.
  15. X. J. Deng, W. H. Huang, Z. Z. Li, and C. X. Tang, Harmonic generation and bunch compression based on transverse-longitudinal coupling, Nucl. Instrum. Methods Phys. Res., Sect. A 1019, 165859 (2021).
  16. Z. Li, X. Deng, Z. Pan, C. Tang, and A. Chao, Generalized longitudinal strong focusing in a steady-state microbunching storage ring, Phys. Rev. Accel. Beams 26, 110701 (2023).
  17. X. Deng et al., Experimental demonstration of the mechanism of steady-state microbunching, Nature (London) 590, 576 (2021).
  18. X.-J. Deng, A. W. Chao, W.-H. Huang, Z.-Z. Li, Z.-L. Pan, and C.-X. Tang, Steady-state microbunching based on transverse-longitudinal coupling, Nucl. Sci. Tech. 37, 2 (2026).
  19. C. Li, B. Jiang, and Y. Zhang, Transverse echo effect induced multiple harmonic generation scheme in an electron storage ring, Sci. Rep. 14, 21079 (2024).
  20. C. Feng and Z. T. Zhao, Hard X-ray free-electron laser based on echo-enabled staged harmonic generation scheme, Chin. Sci. Bull. 55, 221 (2010).
  21. Z. Zhao, C. Feng, J. Chen, and Z. Wang, Two-beam based two-stage EEHG-FEL for coherent hard X-ray generation, Sci. Bull. 61, 720 (2016).
  22. E. Ferrari, Twin echo-enabled harmonic generation for enhanced coherent bunching at short wavelengths, Phys. Rev. Accel. Beams 27, 110705 (2024).
  23. X. Yang, L. H. Yu, V. Smaluk, T. Shaftan, and X. Huang, Toward a fully coherent tender and hard X-ray free-electron laser via cascaded EEHG in fourth-generation synchrotron light sources, J. Synchrotron Rad. 30, 861 (2023).
  24. X. Yang, L. Yu, V. Smaluk, and T. Shaftan, High harmonic generation seeding echo-enabled harmonic generation toward a storage ring-based tender and hard X-ray-free electron laser, Instruments 8, 35 (2024).
  25. L. Cao, J. Liu, Z. Wang, D. Huang, C. Feng, and Z. Zhao, Multiplexed emitting system for an energy-recovery-linac-based coherent light source, J. Synchrotron Rad. 30, 1054 (2023).
  26. Y. Zhao, J. Chen, W. Liu, Z. Li, L. Huang, Y. Han, X. Liu, S. Jiang, X. Li, Y. Jiao, and S. Wang, Key design features of the southern advanced photon source, Nucl. Instrum. Methods Phys. Res., Sect. A 1086, 171310 (2026).
  27. G. Stupakov, Effect of Coulomb collisions on echo-enabled harmonic generation, in Proceedings of the 35th International Free-Electron Laser Conference (FEL2013), New York, NY, USA (JACoW Publishing, Geneva, Switzerland, 2013), pp. 684–688, paper WEPSO68.
  28. B. Wu and A. Kumar, Extreme ultraviolet lithography: A review, J. Vac. Sci. Technol. B 25, 1743 (2007).
  29. S. G. Lewis, B. A. Coulson, A. J. Warren, M. R. Warren, and L. E. Hatcher, Small-rotative fixed-target serial synchrotron crystallography (sr-ft-ssx) for molecular crystals, Commun. Chem. 7, 264 (2024).
  30. X. Hu, K. F. Mak, J. Zhang, Z. Wei, and F. Krausz, Ultrafast lasers for attosecond science, Light Sci. Appl. 15, 24 (2026).
  31. Edmund Optics, Dielectric laser mirrors, https://www.edmundoptics.com/, accessed 4 March 2026.
  32. M. Borland, ELEGANT: A flexible SDDS-compliant code for accelerator simulation, Tech. Rep. LS-287, Advanced Photon Source, 2000.
  33. S. Reiche, GENESIS 1.3: A fully 3d time-dependent FEL simulation code, Nucl. Instrum. Methods Phys. Res., Sect. A 429, 243 (1999).
  34. T. Tanaka and H. Kitamura, Universal function for the brilliance of undulator radiation considering the energy spread effect, J. Synchrotron Rad. 16, 380 (2009).
  35. Y.-W. Yang, Y. Jiao, W.-H. Liu, X.-Y. Li, Y. Zhao, C.-D. Deng, and S. Wang, Compensation of emittance and bunch length variations induced by insertion devices with damping wigglers in fourth-generation light sources, Nucl. Sci. Tech. 37, 185 (2026).
  36. A. Zholents and G. Penn, Obtaining two attosecond pulses for x-ray stimulated Raman spectroscopy, Nucl. Instrum. Methods Phys. Res., Sect. A 612, 254 (2010).
  37. J.-G. Hwang, G. Schiwietz, M. Abo-Bakr, T. Atkinson, M. Ries, P. Goslawski, G. Klemz, R. Müller, A. Schälicke, and A. Jankowiak, Generation of intense and coherent sub-femtosecond x-ray pulses in electron storage rings, Sci. Rep. 10, 10093 (2020).
  38. E. Hemsing and A. Marinelli, Echo-enabled x-ray vortex generation, Phys. Rev. Lett. 109, 224801 (2012).
  39. E. Hemsing, Bunching phase and constraints on echo enabled harmonic generation, Phys. Rev. Accel. Beams 21, 050702 (2018).
  40. Z. Li, Y. Zhao, W. Liu, Y. Jiao, and S. Wang, Study of beam collective effects in the SAPS storage ring, J. Instrum. 21, P04038 (2026).
  41. A. Gover, R. Ianconescu, A. Friedman, C. Emma, N. Sudar, P. Musumeci, and C. Pellegrini, Superradiant and stimulated-superradiant emission of bunched electron beams, Rev. Mod. Phys. 91, 035003 (2019).
