Investigation of beam loss mechanism by parasitic H− in high-power proton linac

Duanyang Jia1,2,3, Zhijun Wang1,2,3,*, Huan Jia1,2,3, Bingyan Liu1,3, Man Yi1,3, Dalong Guo1,2, Hanjie Cai1,2,3, Weilong Chen1,2,3, Shuhui Liu1,2,3 et al.

Tielong Wang1,2,3, Tao Zhang1,2,3, and Yuan He1,2,3,†

  • *Contact author: wangzj@impcas.ac.cn
  • †Contact author: hey@impcas.ac.cn
PDF

Phys. Rev. Accel. Beams 28, 090101 – Published 10 September, 2025

DOI: https://doi.org/10.1103/4tgj-mxmv

Abstract

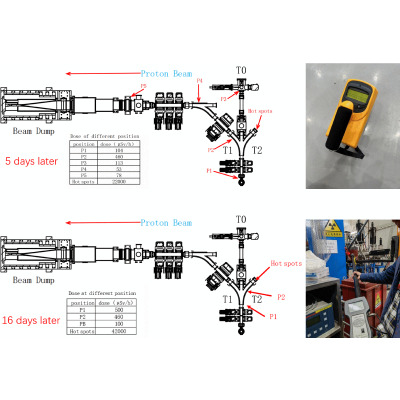

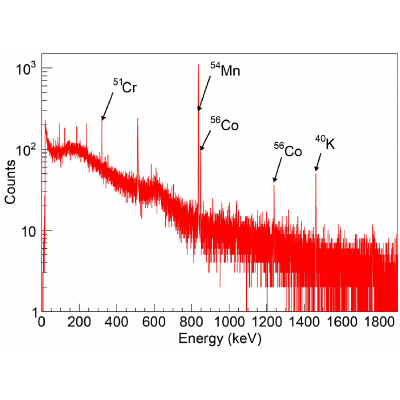

Beam loss is the most critical topic in the high-power accelerator community. During high-power proton beam commissioning of Chinese ADS Front end, unexpected irradiation dose was detected opposite to the proton beam deflection direction. This indicates that there are parasitic H− particles inside the proton beam, which were first observed in the linac facility. In the paper, regarding this beam loss phenomenon, a qualitative analysis was carried out through nuclide analysis and was based on the theoretical foundation of molecular science. Moreover, a quantitative analysis was conducted through beam experiments, and finally verified this beam loss mechanism, which needs to be considered in the future design of high-intensity and high-power proton accelerators.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (25)

  1. E. Pitcher, R. Sheffield, H. Ait Abderrahim, J. Galambos, Y. Gohar, S. Henderson, G. Lawrence, T. Msanamy, A. Mueller, S. Nagaitsev, J. Nolen, T. Rimmer, and M. Todosow, Accelerator and target technology for accelerator driven transmutation and energy production, DOE White Paper on ADS 1, 10.2172/1847382 (2010).
  2. A. V. Fedotov, Beam halo formation in high-intensity beams, Nucl. Instrum. Methods Phys. Res., Sect. A 557, 216 (2006).
  3. M. A. Plum, Beam loss in linacs, arXiv:1608.02456.
  4. A. Miura, N. Kikuzawa, T. Maruta, K. Yamamoto, Z. Igarashi, T. Miyao, M. Ikegami, H. Sako, and S. Sato, Status of beam loss evaluation at J-PARC linac, in Proceedings of the 25th International Linear Accelerator Conference (JACoW, Geneva, Switzerland, 2011), TUP076.
  5. A. Miura, M. Ikegami, H. Sako, and G. Wei, Residual gas pressure dependence of beam loss, in Proceedings of the 25th International Linear Accelerator Conference (JACoW, Geneva, Switzerland, 2011), TUP075.
  6. R. McCrady, Stripping of H– beams by residual gas in the linac at the Los Alamos Neutron Science Center, in Proceedings of the 25th International Linear Accelerator Conference (JACoW, Geneva, Switzerland, 2011), THP069.
  7. A. Shishlo, J. Galambos, A. Aleksandrov, V. Lebedev, and M. Plum, First observation of intrabeam stripping of negative hydrogen in a superconducting linear accelerator, Phys. Rev. Lett. 108, 114801 (2012).
  8. S.-H. Liu, Z. Wang, H. Jia, Y. He, W.-P. Dou, Y. Qin, W.-L. Chen, and F. Yan, Physics design of the CIADS 25 MeV demo facility, Nucl. Instrum. Methods Phys. Res., Sect. A 843, 11 (2016).
  9. M. Khandaker, High purity germanium detector in gamma-ray spectrometry, Int. J. Fundam. Phys. Sci. 1, 42 (2011).
  10. C. Jin, Z. Wang, X. Qi, Y. He, Z. Li, K. Sun, X. Chen, C. Feng, X. Zhao, Y. Hu, Y. Tian, and K. Li, Advanced virtual accelerator software: A linear accelerator simulation code, Phys. Rev. Accel. Beams 28, 044602 (2025).
  11. C. Serafim, S. Calatroni, F. Djurabekova, R. Peacock, V. Bjelland, A. Perez Fontenla, W. Wuensch, A. Grudiev, S. Sgobba, A. Lombardi, and E. Sargsyan, Effects of H– low beam irradiation and high field pulsing tests in different metals, Phys. Rev. Accel. Beams 28, 013101 (2025).
  12. P. Ewart, Atomic Physics (Morgan Claypool Publishers, California, 2019), pp. 2053–2571, 10.1088/2053-2571/aaf801.
  13. A. Jorge, C. Illescas, L. Méndez, and I. Rabadán, Ionization, single and double electron capture in proton-Ar collisions, J. Phys. Chem. A 122, 2523 (2018).
  14. J. Williams, Single-electron capture and loss cross sections for 2–50-keV hydrogen atoms incident upon hydrogen and the inert gases, Phys. Rev. 153, 116 (1967).
  15. H. F. Busnengo, S. E. Corchs, and R. D. Rivarola, Single electron capture from molecular hydrogen targets by impact of protons and α particles, Phys. Rev. A 57, 2701 (1998).
  16. J. Williams, Cross sections for double electron capture by 2–50-keV protons incident upon hydrogen and the inert gases, Phys. Rev. 150, 7 (1966).
  17. M. W. Gealy and B. Van Zyl, Cross sections for electron capture and loss, Phys. Rev. A 36, 3091 (1987).
  18. C. Su, Z. Wang, X. Chen, Y. Jia, X. Qi, W. Wang, K. Sun, Y. Du, T. Wang, and Y. Chu, Efficient beam commissioning in HIPI accelerator based on reinforcement learning, Nucl. Instrum. Methods Phys. Res., Sect. A 1072, 170119 (2025).
  19. J. Tamura, H. Ao, T. Maruta, A. Miura, T. Miyao, and T. Morishita, Development of H0 beam diagnostic line in MEBT2 of J-PARC linac, in Proceedings of the 28th Linear Accelerator Conference Linac-2016 (JACoW, Geneva, Switzerland, 2017), 10.18429/JACOW-LINAC2016-MOPLR063.
  20. R. Duperrier, N. Pichoff, D. Uriot, and A. Ismail, Space charge neutralization and its dynamic effects, in Proceedings of HB2006 (High Energy Accelerator Research Organization, Tsukuba, Ibaraki (Japan), 2006), p. 187.
  21. H. Liao, W. Chen, H. Li, B. Chen, Y. Xiao, Y. Lv, X. Cao, S. Liu, J. Peng, X. Feng, and S. Liu, Removal of stripped protons produced in low-energy beam transport for superconducting linac, Phys. Rev. Accel. Beams 28, 023502 (2025).
  22. X. QingZi, L. YuZheng, F. ShiNian, and F. ShouXian, Study of simultaneous acceleration of positive and negative ion beams by dynamic simulation in RFQ, High Energy Phys. Nucl. Phys. 28, 659 (2004).
  23. R. Duperrier, N. Pichoff, and D. Uriot, Frequency jump in an ion linac, Phys. Rev. ST Accel. Beams 10, 084201 (2007).
  24. Z.-J. Wang, S.-H. Liu, W.-L. Chen, W.-P. Dou, Y.-S. Qin, Y. He, Y.-Z. Jia, C. Feng, M. Yi, Y.-M. Chu, D.-Y. Jia, J.-R. Huang, and H.-W. Zhao, Beam physics design of a superconducting linac, Phys. Rev. Accel. Beams 27, 010101 (2024).

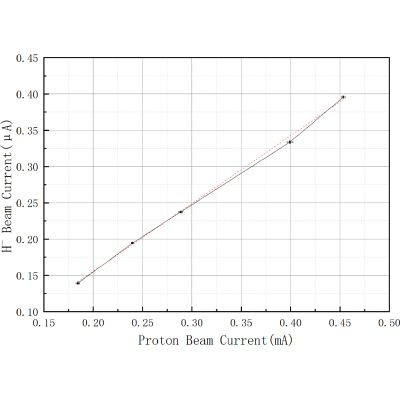

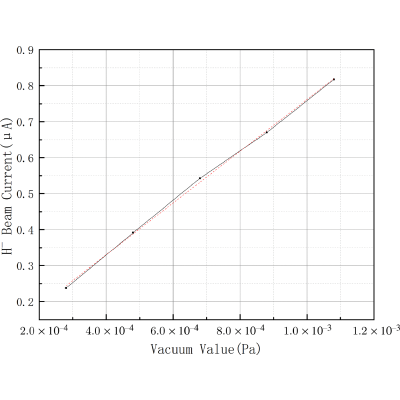

  25. D. Jia, Data of fig 8&9 of “Investigation of beam loss mechanism by parasitic H− in high power protonlinac”, 10.5281/zenodo.16787828 (2025).
