Beam halo from Touschek scattering in the KEK Accelerator Test Facility

R. Yang1,2,*, A. Aryshev3,4, P. Bambade5, M. Bergamaschi6,†, K. Kubo3,4, T. Naito3,4, N. Terunuma3,4, S. Wallon5, and J. Zhang7

  • *Contact author: yangrenjun@ihep.ac.cn
  • †Present address: Max Planck Institute for Physics, Munich, Germany.
PDF

Phys. Rev. Accel. Beams 28, 101001 – Published 3 October, 2025

DOI: https://doi.org/10.1103/4qnt-3p1s

Abstract

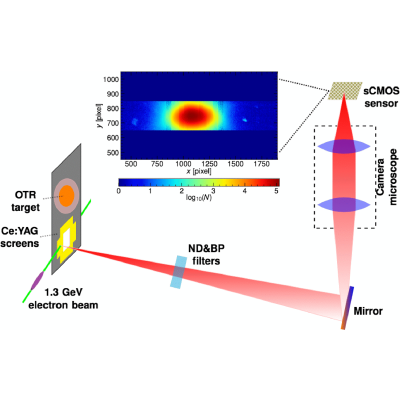

Beam halo is one of the most crucial issues limiting the machine performance and causing radioactivation in high-intensity accelerators. Understanding halo formation is vital for high-luminosity colliders, advanced light sources, and spallation neutron sources to effectively mitigate beam loss through machine optimizations and tailored collimation systems. This article details numerical and experimental investigations of transverse and longitudinal halos at the KEK Accelerator Test Facility. Halo distributions are modeled incorporating operational beam parameters, synchrotron radiation, beam-gas scattering, and Touschek-scattering processes. A newly developed yttrium aluminum garnet/optical transition radiation monitor, positioned at the extraction line, enables direct imaging of transverse and longitudinal halo distributions. The general consistency between predictions and observations in various conditions indicates that the Touschek scattering is the dominant mechanism forming the horizontal and momentum halos.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (32)

  1. A. Aleksandrov, S. Cousineau, K. Ruisard, and A. Zhukov, First measurement of a 2.5 MeV RFQ output emittance with 1 part-per-million dynamic range, Nucl. Instrum. Methods Phys. Res., Sect. A 987, 164829 (2021).
  2. K. Hirata and K. Yokoya, Non-Gaussian distribution of electron beams due to incoherent stochastic processes, Part. Accel. 39, 147 (1992), https://cds.cern.ch/record/1108257/files/p147.pdf.
  3. T. Chen, J. Irwin, and R. Siemann, Simulation of the beam halo from the beam-beam interaction, Phys. Rev. E 49, 2323 (1994).
  4. H. Burkhardt, I. Reichel, and G. Roy, Transverse beam tails due to inelastic scattering, Phys. Rev. ST Accel. Beams 3, 091001 (2000).
  5. H. Burkhardt, I. Ahmed, M. Fitterer, A. Latina, L. Neukermans, and D. Schulte, Halo and tail generation computer model and studies for linear colliders, European Organization for Nuclear Research (CERN) Report No. EUROTeV-Report-2008-076, 2008.
  6. R. L. Gluckstern, Analytic model for halo formation in high current ion linacs, Phys. Rev. Lett. 73, 1247 (1994).
  7. C. Allen, K. Chan, P. Colestock, K. Crandall, R. Garnett, J. Gilpatrick et al., Beam-halo measurements in high-current proton beams, Phys. Rev. Lett. 89, 214802 (2002).
  8. K. Oide and H. Koiso, Anomalous equilibrium emittance due to chromaticity in electron storage rings, Phys. Rev. E 49, 4474 (1994).
  9. M. Ikegami, S. Machida, and T. Uesugi, Particle-core analysis of dispersion effects on beam halo formation, Phys. Rev. ST Accel. Beams 2, 124201 (1999).
  10. I. Hofmann and O. Boine-Frankenheim, Space-charge structural instabilities and resonances in high-intensity beams, Phys. Rev. Lett. 115, 204802 (2015).
  11. K. Wittenburg, Beam halo and bunch purity monitoring, arXiv:2005.07027.
  12. K. Kubo, M. Akemoto, S. Anderson, T. Aoki, S. Araki, K. Bane et al., Extremely low vertical-emittance beam in the Accelerator Test Facility at KEK, Phys. Rev. Lett. 88, 194801 (2002).
  13. K. Honda, K. Kubo, S. Anderson, S. Araki, K. Bane, A. Brachmann et al., Achievement of ultralow emittance beam in the Accelerator Test Facility damping ring, Phys. Rev. Lett. 92, 054802 (2004).
  14. G. White, R. Ainsworth, T. Akagi, J. Alabau-Gonzalvo, D. Angal-Kalinin, S. Araki et al., Experimental validation of a novel compact focusing scheme for future energy-frontier linear lepton colliders, Phys. Rev. Lett. 112, 034802 (2014).
  15. A. Aryshev, P. Bambade, D. Bett, L. Brunetti, P. Burrows, V. Cilento et al., ATF report 2020, European Organization for Nuclear Research (CERN) Report No. CERN-ACC-2020-0029, 2020.
  16. M. Boscolo and P. Raimondi, Monte Carlo simulation for the Touschek effect with the crab-waist scheme, Phys. Rev. ST Accel. Beams 15, 104201 (2012).
  17. J. Breunlin, S C. Leemann, and Å Andersson, Improving Touschek lifetime in ultralow-emittance lattices through systematic application of successive closed vertical dispersion bumps, Phys. Rev. Accel. Beams 19, 060701 (2016).
  18. A. Natochii, S. E. Vahsen, H. Nakayama, T. Ishibashi, and S. Terui, Improved simulation of beam backgrounds and collimation at SuperKEKB, Phys. Rev. Accel. Beams 24, 081001 (2021).
  19. S. Liu, F. Bogard, P. Cornebise, A. Faus-Golfe, N. Fuster-Martínez, E. Griesmayer et al., In vacuum diamond sensor scanner for beam halo measurements in the beam line at the KEK Accelerator Test Facility, Nucl. Instrum. Methods Phys. Res., Sect. A 832, 231 (2016).
  20. D. Wang, J. Gao, P. Bambade, and K. Yokoya, Analytical estimation of ATF beam halo distribution, Chin. Phys. C 38, 127003 (2014).
  21. R. Yang, T. Naito, S. Bai, A. Aryshev, K. Kubo, T. Okugi et al., Evaluation of beam halo from beam-gas scattering at the KEK Accelerator Test Facility, Phys. Rev. Accel. Beams 21, 051001 (2018).
  22. P. Raimondi and A. Seryi, Novel final focus design for future linear colliders, Phys. Rev. Lett. 86, 3779 (2001).
  23. A. Faus-Golfe, J. Navarro, N. Fuster Martinez, J. Resta Lopez, and J. Giner Navarro, Emittance reconstruction from measured beam sizes in ATF2 and perspectives for ILC, Nucl. Instrum. Methods Phys. Res., Sect. A 819, 122 (2016).
  24. R. Yang, A. Pastushenko, A. Aryshev, M. Bergamaschi, V. Cilento, A. Faus-Golfe et al., Tuning the ultralow β* optics at the KEK Accelerator Test Facility 2, Phys. Rev. Accel. Beams 23, 071003 (2020).
  25. C. Bernardini, G. F. Corazza, G. Di Giugno, G. Ghigo, J. Haissinski, P. Marin, R. Querzoli, and B. Touschek, Lifetime and beam size in a storage ring, Phys. Rev. Lett. 10, 407 (1963).
  26. sad, is a computer program for accelerator design, see http://Acc-Physics.kek.jp/SAD/.
  27. R. Yang, P. Bambade, K. Kubo, T. Okugi, N. Terunuma, and D. Zhou, Numerical investigation of beam halo from beam gas scattering in KEK-ATF, J. Phys. Conf. Ser. 874, 012063 (2017).
  28. K. Ohmi, K. Hirata, and K. Oide, From the beam-envelope matrix to synchrotron-radiation integrals, Phys. Rev. E 49, 751 (1994).
  29. K. Kubo and K. Oide, Intrabeam scattering in electron storage rings, Phys. Rev. ST Accel. Beams 4, 124401 (2001).
  30. A. Piwinski, The Touschek effect in strong focusing storage rings, arXiv:physics/9903034.
  31. R. Yang, T. Naito, S. Wallon, A. Aryshev, N. Terunuma, P. Bambade et al., Development of a YAG/OTR monitor, in Proceedings of the 7th International Beam Instrumentation Conference (IBIC2018), Shanghai, China (JACoW, Geneva, Switzerland, 2018), pp. 429–502, 10.18429/JACoW-IBIC2018-WEPB02.
  32. A. Murokh, J. Rosenzweig, V. Yakimenko, E. Johnson, and X. Wang, Limitations on the resolution of YAG:CE beam profile monitor for high brightness electron beam, in The Physics of High Brightness Beams (World Scientific, Singapore, 2000), pp. 564–580.
