Formation of nanosecond multibunch structure in thermionic electron beams and generation of multibunch x-ray free-electron laser pulses

Kazuaki Togawa*, Hirokazu Maesaka, and Vitaliy Goryashko†

  • *Contact author: togawa@spring8.or.jp
  • †Present address: FREIA Laboratory, Department of Physics and Astronomy, Uppsala University, Ångströmlaboratoriet, 75120 Uppsala, Sweden.
PDF

Phys. Rev. Accel. Beams 29, 093401 – Published 9 September, 2026

DOI: https://doi.org/10.1103/3x73-lc4f

Abstract

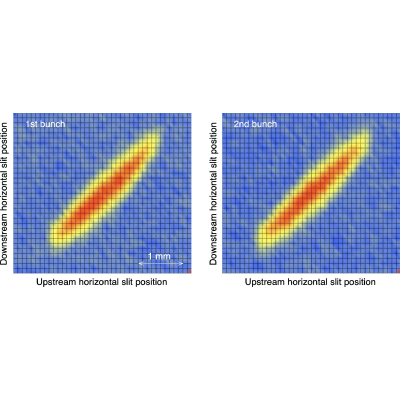

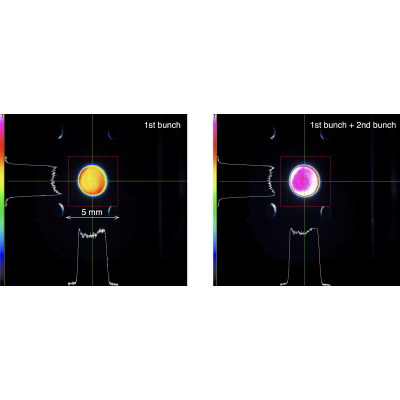

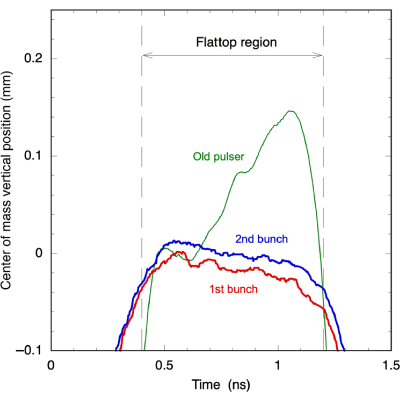

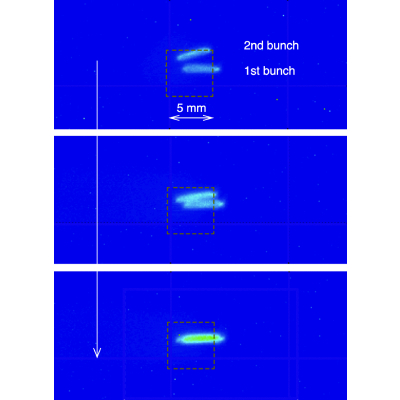

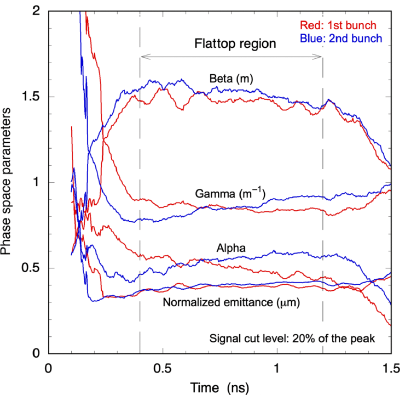

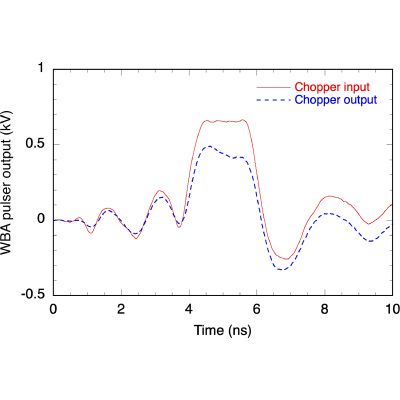

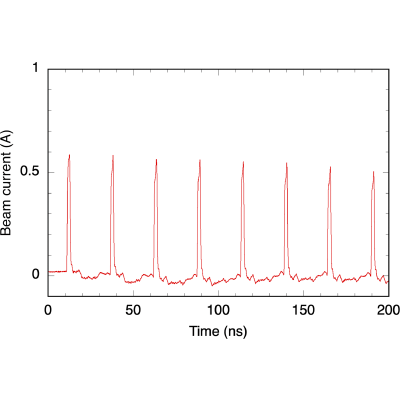

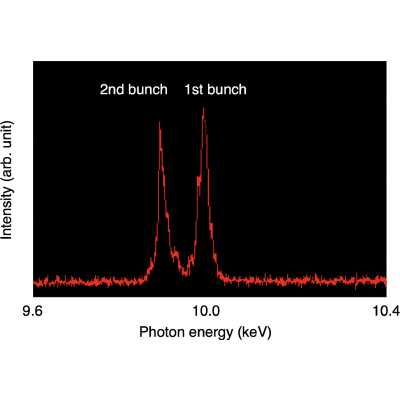

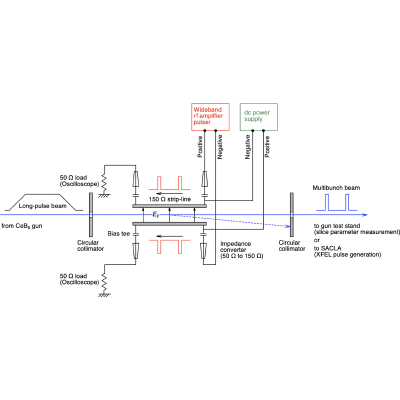

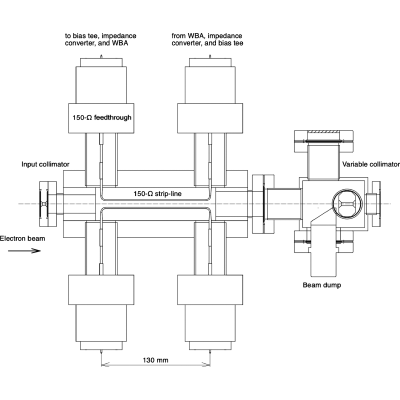

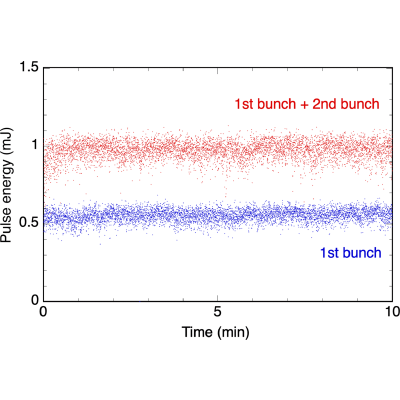

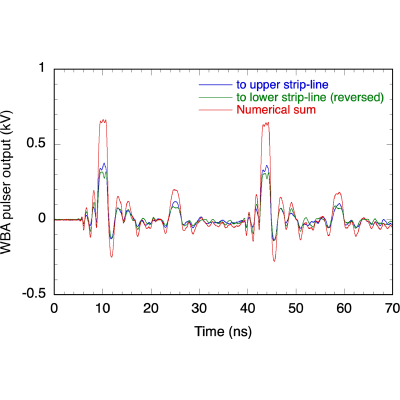

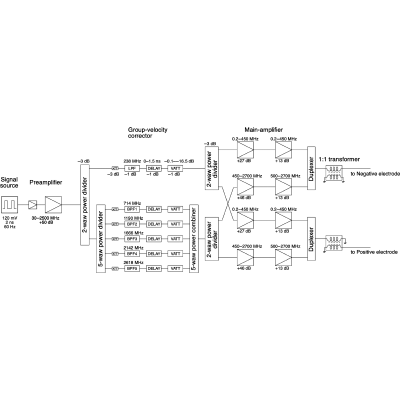

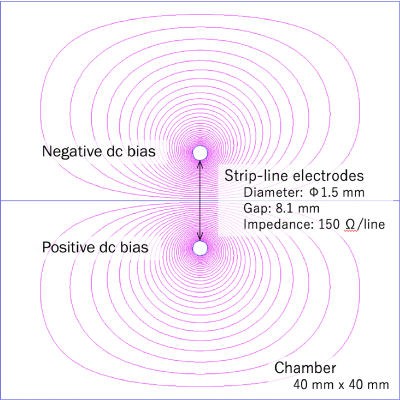

The x-ray free-electron laser (XFEL) facility SACLA uses a thermionic pulsed electron gun and a beam chopper to produce a low-emittance, short-bunch beam. Recently, a new type of fast pulse generator, which utilized wideband rf amplifiers and a new chopper chamber with high-impedance strip-line electrodes, was developed to reliably and accurately cut out a short bunch from the long-pulsed beam emitted from a single-crystal CeB6 hot cathode. Using these apparatuses, we succeeded in forming nanosecond multibunch structure in the thermionic electron beam and generating a double-bunch XFEL pulse with a total pulse energy of 1 mJ at 10 keV. The results will provide new possibilities for XFEL beams: higher intensity, higher coherence, and higher pulse repetition rate.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (31)

  1. P. Emma, Proceedings of PAC09 (Vancouver, Canada, 2009), pp. 3115–3119.
  2. P. Emma, R. Akre, J. Arthur, R. Bionta, C. Bostedt, J. Bozek, A. Brachmann, P. Bucksbaum, R. Coffee, F.-J. Decker et al., Nat. Photonics 4, 641 (2010).
  3. T. Ishikawa, H. Aoyagi, T. Asaka, Y. Asano, N. Azumi, T. Bizen, H. Ego, K. Fukami, T. Fukui, Y. Furukawa et al., Nat. Photonics 6, 540 (2012).
  4. H.-S. Kang, C.-K. Min, H. Heo, C. Kim, H. Yang, G. Kim, I. Nam, S. Y. Baek, H.-J. Choi, G. Mun et al., Nat. Photonics 11, 708 (2017).
  5. W. Decking, S. Abeghyan, P. Abramian, A. Abramsky, A. Aguirre, C. Albrecht, P. Alou, M. Altarelli, P. Altmann, K. Amyan et al., Nat. Photonics 14, 391 (2020).
  6. E. Prat, R. Abela, M. Aiba, A. Alarcon, J. Alex, Y. Arbelo, C. Arrell, V. Arsov, C. Bacellar, C. Beard et al., Nat. Photonics 14, 748 (2020).
  7. J. Amann, W. Berg, V. Blank, F.-J. Decker, Y. Ding, P. Emma, Y. Feng, J. Frisch, D. Fritz, J. Hastings et al., Nat. Photonics 6, 693 (2012).
  8. I. Inoue, T. Osaka, T. Hara, T. Tanaka, T. Inagaki, T. Fukui, S. Goto, Y. Inubushi, H. Kimura, R. Kinjo, H. Ohashi, K. Togawa, K. Tono, M. Yamaga, H. Tanaka, T. Ishikawa, and M. Yabashi, Nat. Photonics 13, 319 (2019).
  9. I. Nam, C.-K. Min, B. Oh, G. Kim, D. Na, Y. J. Suh, H. Yang, M. H. Cho, C. Kim, M.-J. Kim et al., Nat. Photonics 15, 435 (2021).
  10. J. Galayda, Proceedings of IPAC2014 (Dresden, Germany, 2014), pp. 935–937.
  11. Z. Zhao, D. Wang, Z.-H. Yang, and L. Yin, Proceedings of FEL2017 (Santa Fe, USA, 2017), pp. 182–184.
  12. H. Tanaka, T. Inagaki, T. Hara, T. Ishikawa, and T. Watanabe, Proceedings of IPAC2023 (Venice, Italy, 2023), pp. 2590–2593.
  13. A. Halavanau, A. Benediktovitch, A. A. Lutman, D. DePonte, D. Cocco, N. Rohringer, U. Bergmann, and C. Pellegrini, Proc. Natl. Acad. Sci. U.S.A. 117, 15511 (2020).
  14. A. Halavanau, S. Carbajo, F.-J. Decker, A. Krasnykh, A. Lutman, A. Marinelli, C. Mayes, and D. Nguyen, Proceedings of IPAC2021 (Campinas, Brazil, 2021), pp. 365–368.
  15. F.-J. Decker, K. L. Bane, W. Colocho, S. Gilevich, A. Marinelli, J. C. Sheppard, J. L. Turner, J. J. Turner, S. L. Vetter, A. Halavanau, C. Pellegrini, and A. A. Lutman, Sci. Rep. 12, 3253 (2022).
  16. A. Halavanau, A. Romero, A. Krasnykh, A. Lutman, T. Beukers, J. Hugyik, A. Le, K. Luchini, E. Jongewaard, A. Sy, A. Ibrahimov, A. Benwell, A. Marinelli, and F.-J. Decker, J. Instrum. 17, P11031 (2022).
  17. P. Rauer, I. Bahns, B. Friedrich, S. Casalbuoni, M. Di Felice, M. Dommach, I. Freijo Martin, W. Freund, J. Grünert, M. Guetg et al., Nature (London) 650, 93 (2026).
  18. K. Togawa, T. Shintake, T. Inagaki, K. Onoe, T. Tanaka, H. Baba, and H. Matsumoto, Phys. Rev. ST Accel. Beams 10, 020703 (2007).
  19. K. Togawa, A. Higashiya, and T. Shintake, Proceedings of PAC07 (Albuquerque, USA, 2007), pp. 1013–1015.
  20. T. Asaka, H. Ego, H. Hanaki, T. Hara, T. Hasegawa, T. Hasegawa, T. Inagaki, T. Kobayashi, C. Kondo, H. Maesaka, S. Matsubara, S. Matsui, T. Ohshima, Y. Otake, T. Sakurai, S. Suzuki, Y. Tajiri, S. Tanaka, K. Togawa, and H. Tanaka, Phys. Rev. Accel. Beams 20, 080702 (2017).
  21. K. Togawa, H. Maesaka, R. Kobana, and H. Tanaka, Rev. Sci. Instrum. 93, 073304 (2022).
  22. M. T. Menzel and H. K. Stokes, User’s Guide for the POISSON/SUPERFISH Group of Codes, LA-UR 87-115 (Los Alamos National Laboratory, 1987).
  23. K. Togawa, Rev. Sci. Instrum. 95, 043304 (2024).
  24. V. Goryashko, K. Togawa, P. Salén, and A. Opanasenko, Phys. Rev. Accel. Beams 28, 091601 (2025).
  25. V. Goryashko, K. Togawa, and A. Opanasenko, Phys. Rev. Accel. Beams 28, 110101 (2025).
  26. K. Togawa, D. Satoh, V. Goryashko, A. Opanasenko, T. Magome, M. Kuwahara, T. Ishida, H. Sugawara, A. Yoshigoe, Y. Tsuda et al., Proceedings of the 22nd Annual Meeting of Particle Accelerator Society of Japan (Tokyo, Japan, 2025), pp. 144–149.
  27. See Supplemental Material at http://link.aps.org/supplemental/10.1103/3x73-lc4f for the phase space evolution of the first bunch and for the second bunch.
  28. JLC group, JLC-1, KEK Report 92-16 (1992).
  29. T. Shintake, Jpn. J. Appl. Phys. 31, L1567 (1992).
  30. T. Shintake, N. Akasaka, K. Bane, H. Hayano, K. Kubo, H. Matsumoto, S. Matsumoto, K. Oide, and K. Yokoya, Proceedings of PAC95 (Dallas, USA, 1995), pp. 1099–1101.
  31. M. Paraliev, A. Alarcon, V. Arsov, S. Bettoni, R. Biffiger, M. Boll, H. Braun, A. Citterio, P. Craievich, A. Dax et al., Phys. Rev. Accel. Beams 25, 120701 (2022).
