Collimation system baseline design for the electron storage ring at the Electron-Ion Collider

Andrii Natochii*, Elke-Caroline Aschenauer, Karim Hamdi, Charles Hetzel, Eric Link, Daniel Marx, Christoph Montag, and Steven Tepikian

Yunhai Cai and Yuri Nosochkov

  • *Contact author: natochii@bnl.gov
PDF

Phys. Rev. Accel. Beams 29, 074202 – Published 29 July, 2026

DOI: https://doi.org/10.1103/2v68-np87

Abstract

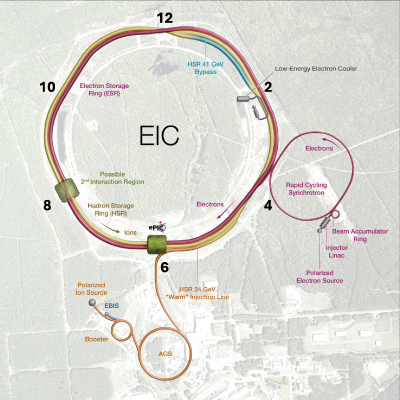

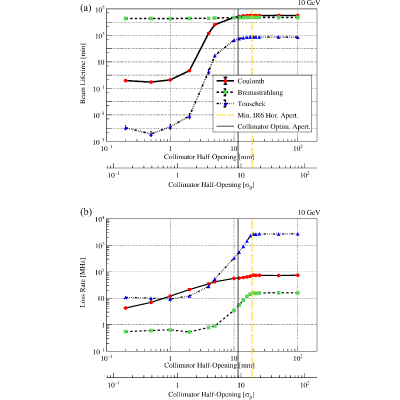

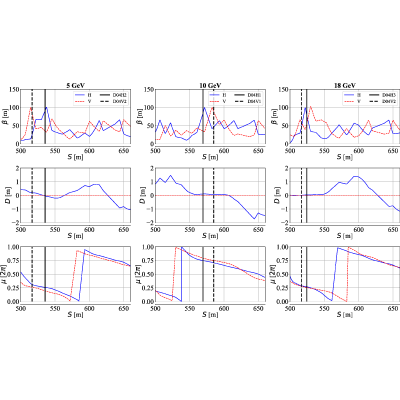

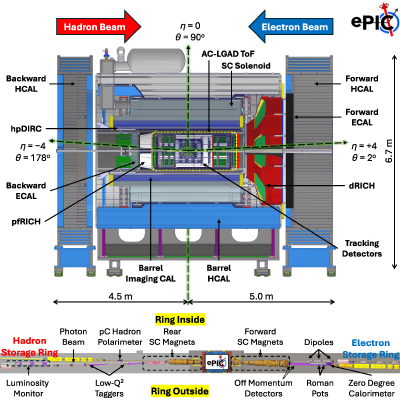

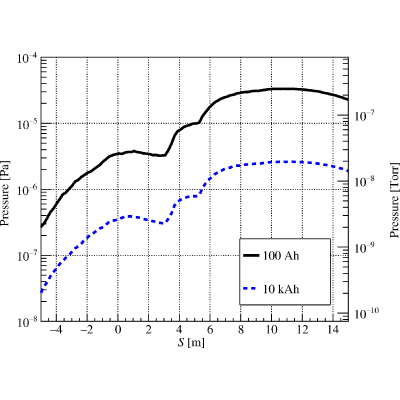

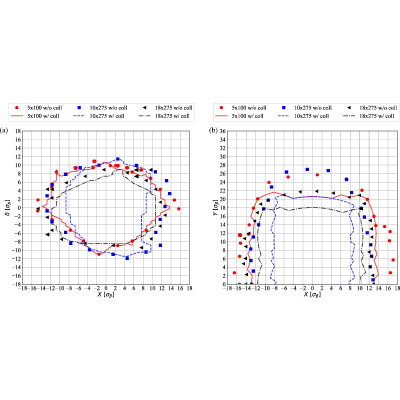

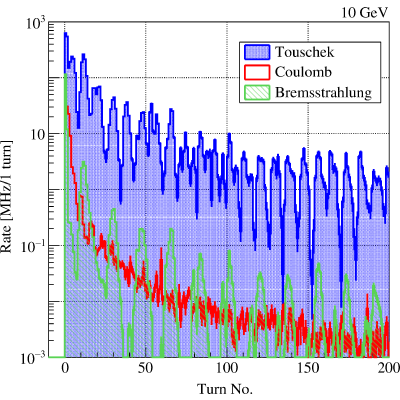

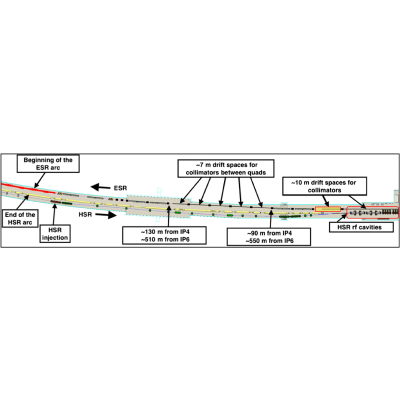

We present the baseline design of the electron ring collimation system for the Electron-Ion Collider (EIC) at Brookhaven National Laboratory (BNL). The system addresses beam losses in a high-current electron storage ring with superconducting (SC) final-focus magnets and sensitive detectors, where uncontrolled losses can generate heat loads, radiation, and detector backgrounds and damage. The proposed collimation insertion localizes halo particle losses through reducing interaction region beam losses from beam-gas and Touschek scattering by several orders of magnitude while keeping detector backgrounds and cryostat heat loads within acceptable limits. Multiturn particle-tracking simulations show that the collimators do not significantly impact machine acceptance or beam lifetime, and their positions and apertures can be reoptimized for future lattice configurations. Ongoing work includes incorporating crab cavities and solenoid fields into simulations, refining vacuum conditions, and optimizing collimator geometry and materials. This design establishes a robust baseline for the EIC electron ring collimation system and supports continued lattice optimization for machine operations.

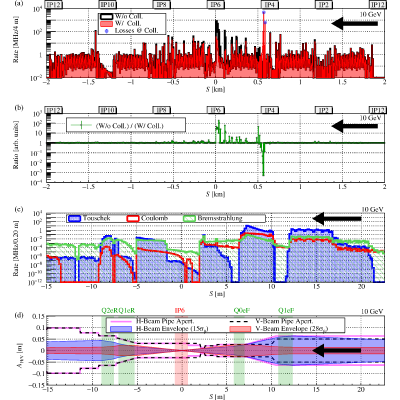

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. F. Willeke and J. Beebe-Wang, Electron ion collider conceptual design report 2021, Tech. Rep. BNL-221006-2021-FORE, TRN: US2215154 (2021), 10.2172/1765663.
  2. Y. Ohnishi et al., Accelerator design at SuperKEKB, Prog. Theor. Exp. Phys. 2013, 3A011 (2013).
  3. A. Natochii et al., Measured and projected beam backgrounds in the Belle II experiment at the SuperKEKB collider, Nucl. Instrum. Methods Phys. Res., Sect. A 1055, 168550 (2023).
  4. T. Ishibashi, S. Terui, Y. Suetsugu, K. Watanabe, and M. Shirai, Movable collimator system for SuperKEKB, Phys. Rev. Accel. Beams 23, 053501 (2020).
  5. S. Terui et al., Collimator challenges at SuperKEKB and their countermeasures using nonlinear collimator, Phys. Rev. Accel. Beams 27, 081001 (2024).
  6. R. Bruce et al., Simulations and measurements of beam loss patterns at the CERN Large Hadron Collider, Phys. Rev. ST Accel. Beams 17, 081004 (2014).
  7. S. Redaelli, Beam Cleaning and Collimation Systems, in Proceedings, CAS-CERN Accelerator School: Intensity Limitations in Particle Beams, CERN Yellow Reports: School Proceedings (CERN, Geneva, Switzerland, 2016), Vol. 2, pp. 403–437, 10.5170/CERN-2016-002.403.
  8. G. Broggi. fcc-ee collimation system design, Sapienza University of Rome, 2026, https://iris.uniroma1.it/handle/11573/1760114 https://iris.uniroma1.it/handle/11573/1760114.
  9. The ePIC Collaboration, ePIC Home Page, [Online; accessed on 18-August-2024] (2024), https://www.bnl.gov/eic/epic.php https://www.bnl.gov/eic/epic.php.
  10. X. Li, Advanced silicon tracking detector developments for the future Electron-Ion Collider, Nucl. Instrum. Methods Phys. Res., Sect. A 1057, 168687 (2023).
  11. G. Kalicy, Developing high-performance DIRC detector for the Future Electron Ion Collider Experiment, arXiv:2202.06457.
  12. B. Azmoun et al., Conceptual Design Report: A proximity-focusing RICH for the ePIC experiment, Draft 1.1,2023, Available at https://indico.bnl.gov/event/22323/contributions/87361/attachments/52860/90414/EPIC-pfRICH-CDR.v1.1.pdf.
  13. S. Vallarino et al., Prototype of a dual-radiator RICH detector for the Electron–Ion Collider, Nucl. Instrum. Methods Phys. Res., Sect. A 1058, 168834 (2024).
  14. W. Armstrong et al., Generic EIC-related detector R&D program: Imaging calorimetry for the electron-ion collider, EIGENRand proposal, 2022, Available at https://www.jlab.org/sites/default/files/eic_rd_prgm/files/2022_Proposals/EIC_R_D_Imaging_Calo_EICGENRandD2022_25.pdf.
  15. B. Auchmann et al., Testing beam-induced quench levels of LHC superconducting magnets, Phys. Rev. ST Accel. Beams 18, 061002 (2015).
  16. N. Ohuchi et al., SuperKEKB beam final focus superconducting magnet system, Nucl. Instrum. Methods Phys. Res., Sect. A 1021, 165930 (2022).
  17. H. Ikeda et al., Observation of Sudden Beam Loss in SuperKEKB, in Proceedings of the 14th International Particle Accelerator Conference (2023), https://doi.og/10.18429/JACoW-IPAC2023-MOPL072 https://proceedings.jacow.org/ipac2023/pdf/MOPL072.pdf.
  18. R. Nomaru, G. Mitsuka, and L. Ruckman, Measurement of sudden beam loss events using bunch-by-bunch BPMs at SuperKEKB, arXiv:2507.13617.
  19. K. Yoshihara et al., Development and implementation of advanced beam diagnostic and abort systems in SuperKEKB, Nucl. Instrum. Methods Phys. Res., Sect. A 1072, 170117 (2025).
  20. D. Marx et al., Designing the EIC electron storage ring lattice for a wide energy range, J. Phys.: Conf. Ser 2420, 012010 (2023).
  21. Y. Nosochkov et al., Dynamic aperture studies for the EIC electron storage ring, JACoW IPAC2025, MOPS135, 2025, 10.18429/JACoW-IPAC2025-MOPS135.
  22. A. Natochii, S. E. Vahsen, H. Nakayama, T. Ishibashi, and S. Terui, Improved simulation of beam backgrounds and collimation at SuperKEKB, Phys. Rev. Accel. Beams 24, 081001 (2021).
  23. C. Hetzel, EIC ESR Collimator Design, FCC-EIC Joint & MDI Workshop (2022), https://indico.cern.ch/event/1186798/contributions/5062614/attachments/2531265/4355410/FCC-EIC∖%20Workshop∖%20-∖%20EIC∖%20collimator∖%20design∖%20221017.pdf.
  24. S. DeBarger, S. Metcalfe, C. Ng, T. G. Porter, J. Seeman, M. Sullivan, and U. Wienands, The PEP-II movable collimators (Stanford Linear Accelerator Center (SLAC) (2006), https://www.osti.gov/biblio/877438.
  25. T. Ishibashi, Y. Suetsugu, and S. Terui, Collimators for SuperKEKB Main Ring, in Proceedings of the 8th International Particle Accelerator Conference (2017), WEPIK009,10.18429/JACoW-IPAC2017-WEPIK009.
  26. G. Iadarola et al., Xsuite: An integrated beam physics simulation framework, JACoW HB2023, 2024, 10.18429/JACoW-HB2023-TUA2I1 arXiv:2310.00317.
  27. L. J. Nevay et al., BDSIM: An accelerator tracking code with particle–matter interactions, Comput. Phys. Commun. 252, 107200 (2020).
  28. S. Agostinelli et al., Geant4—a simulation toolkit, Nucl. Instrum. Methods Phys. Res., Sect. A 506, 250 (2003).
  29. J. Allison et al., Geant4 developments and applications, IEEE Trans. Nucl. Sci. 53, 270 (2006).
  30. J. Allison et al., Recent developments in Geant4, Nucl. Instrum. Methods Phys. Res., Sect. A 835, 186 (2016).
  31. G. von Holtey, The collimator system for the LEP main ring, Tech. Rep. (CERN, 1987), https://cds.cern.ch/record/175370/files/198703181.pdf https://cds.cern.ch/record/175370/files/198703181.pdf.
  32. J. D. Jackson, Classical Electrodynamics (John Wiley & Sons, New York, 1962).
  33. A. W. Chao and M. Tigner, Handbook of Accelerator Physics and Engineering (World Scientific, Singapore, 1999).
  34. H. Bethe and W. Heitler, On the stopping of fast particles and on the creation of positive electrons, Proc. R. Soc. A 146, 83 (1934).
  35. H. W. Koch and J. W. Motz, Bremsstrahlung cross-section formulas and related data, Rev. Mod. Phys. 31, 920 (1959).
  36. C. Møller, Zur theorie des durchgangs schneller elektronen durch materie, Ann. Phys. (Berlin) 406, 531 (1932).
  37. H. Bruck, Circular particle accelerators, La-Tr-72-10-rev, (Los Alamos National Laboratory, 1974), https://inspirehep.net/literature/19864 https://inspirehep.net/literature/19864.
  38. R. Kersevan and M. Ady, Recent developments of Monte-Carlo codes Molflow+ and Synrad+, in Proceedings of the10th International Particle Accelerator Conference (2019), TUPMP037, 10.18429/JACoW-IPAC2019-TUPMP037.
  39. C. Hetzel and J. Bellon, EIC Vacuum System, Presentation at eeFACT-workshop (2025), https://indico.jacow.org/event/75/contributions/6758/attachments/752/2725/EIC∖%20Vacuum∖%20Systems.pdf.
  40. S. Y. Lee, Accelerator Physics, 4th ed. (World Scientific, Singapore, 2019).
  41. S. Redaelli, Beam cleaning and collimation systems, arXiv:2511.03511.
