RF characterization of 1.3 GHz one-cell Nb/Cu full-seamless cavities manufactured by hydroforming

Masashi Yamanaka1,*, Marco Garlaschè2, Joanna Sylwia Swieszek2, Guillaume Jonathan Rosaz2, Hayato Araki1, Kristof Brunner2, Said Atieh2, Carlota P. A. Carlos2, Adrià Gallifa Terricabras2 et al.

Valentin Giglia2, Shinichi Iwamoto3, Shinichiro Michizono1, Yuya Nishi3, Kazuki Nishimori3, Walter Venturini Delsolaro2, and Akira Yamamoto1

  • *Contact author: masashi.yamanaka@kek.jp
PDF

Phys. Rev. Accel. Beams 29, 033101 – Published 2 March, 2026

DOI: https://doi.org/10.1103/1jh5-65xh

Abstract

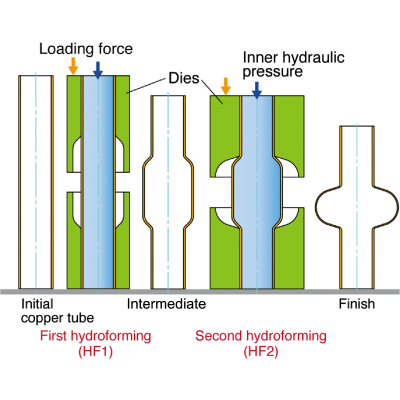

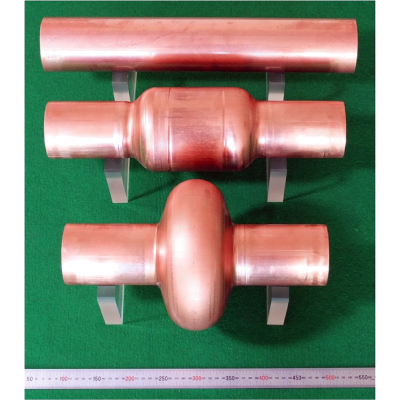

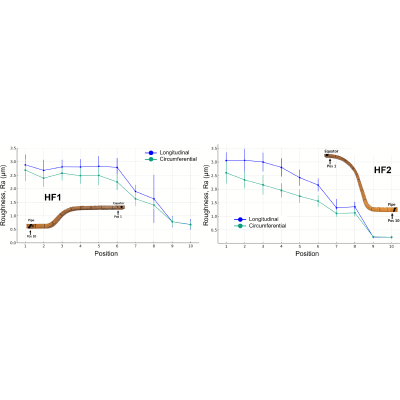

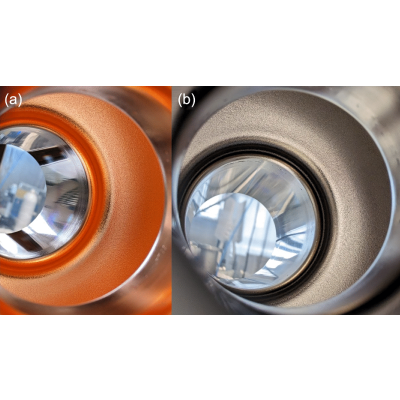

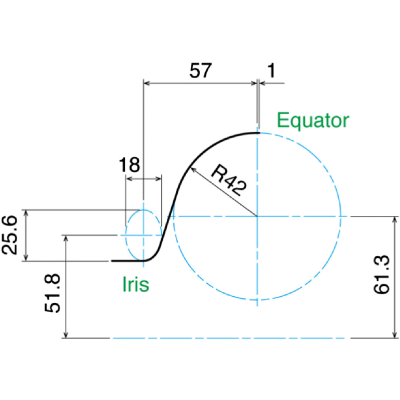

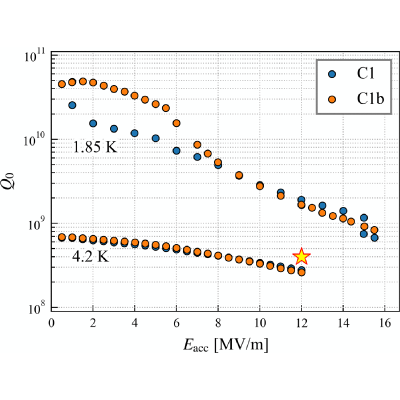

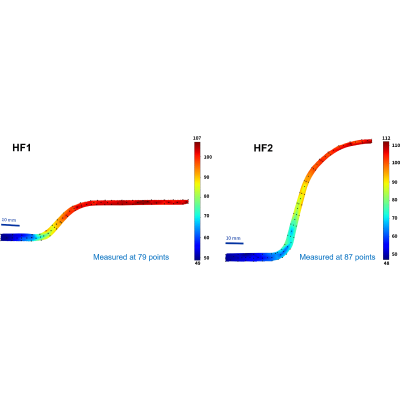

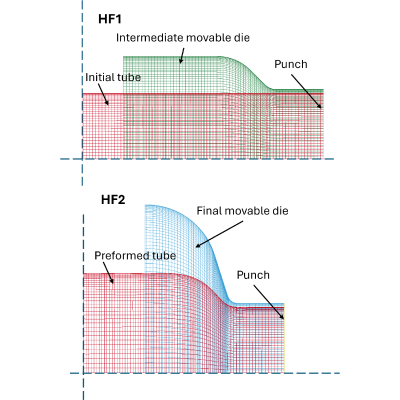

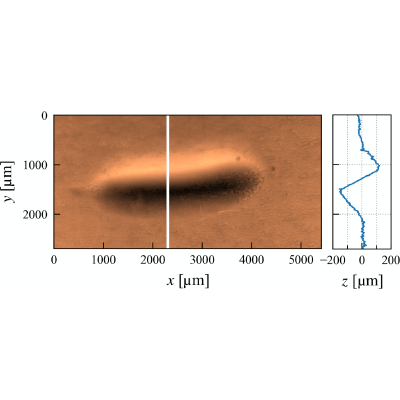

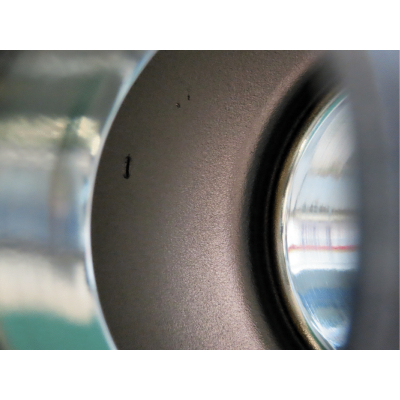

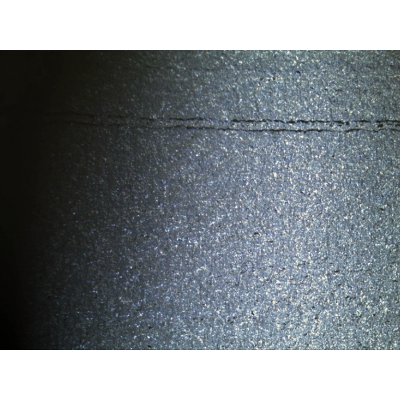

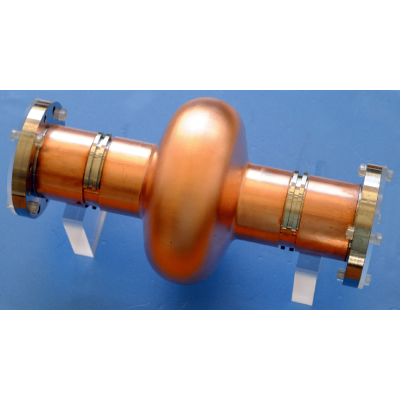

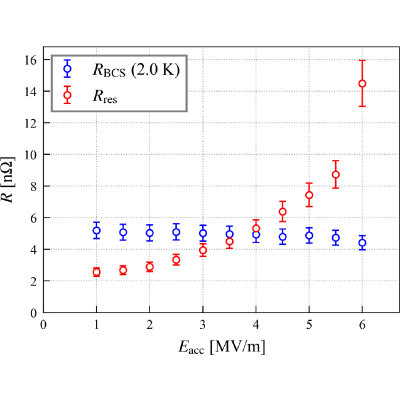

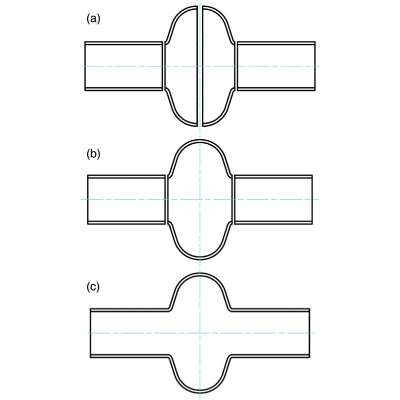

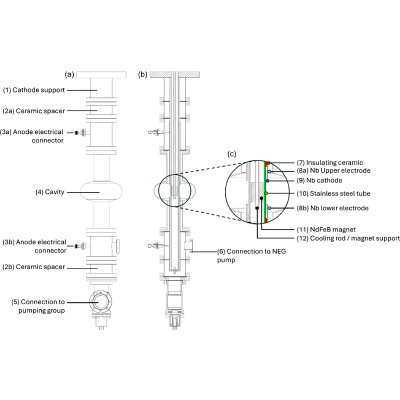

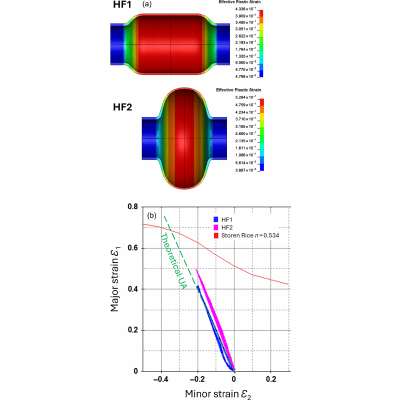

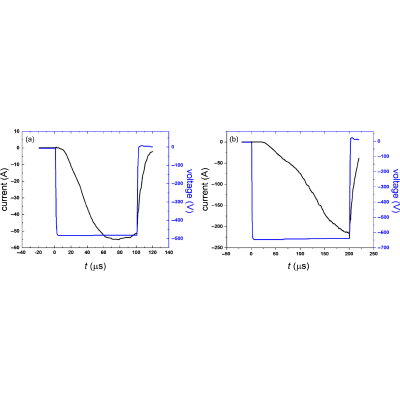

In this study, we employ hydroforming technology to develop a 1.3 GHz one-cell Nb/Cu full-seamless cavity to reduce cost and improve performance. Superconducting radiofrequency (SRF) cavities made of pure niobium are expensive because of the material’s high cost and the complex manufacturing process, which involves electron beam welding. To overcome these challenges, extensive research has been conducted on using copper substrates coated with niobium, leveraging hydroforming to eliminate welding and seams, thereby reducing cost and simplifying production. The hydroforming process involves expanding oxygen-free copper tubes in two steps, followed by vacuum annealing to recover elongation. This method exhibited high productivity, with forming times of 51 and 78 s for the two steps. However, the process introduced surface roughness, compromising optimal rf performance. Following hydroforming, the cavities were coated with niobium via high-power impulse magnetron sputtering. This coating method ensured excellent film adhesion and can withstand high-pressure water rinsing. We conducted rf measurements of the cavities, achieving an accelerating gradient of 12  MV/m at 4.2 K. The quality factor was slightly below requirements, attributed to surface roughness from the hydroforming process. The maximum accelerating gradient reached 15.7  MV/m at 1.85 K with no field emission. We demonstrate the advantages of full-seamless cavities, including reduced manufacturing costs, high reproducibility, and the elimination of welding seams that can introduce defects. However, challenges such as surface roughness and its impact on the rf performance must still be addressed. This study makes a significant contribution to the development of cost-effective, high-performance SRF cavities for coating studies.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. H. Padamsee, Superconducting Radiofrequency Technology for Accelerators (Wiley-VCH, Weinheim, Germany, 2023).
  2. V. Palmieri, Metal forming technology for the fabrication of seamless superconducting radiofrequency cavities for particle accelerators, MATEC Web Conf. 21, 04015 (2015).
  3. J. L. Kirchgessner, Forming and welding of niobium for superconducting cavities, in Proceedings of the 3rd Workshop on RF Superconductivity (ANL, Chicago, IL, 1987), pp. 533–544.
  4. W. Singer, X. Singer, I. Jelezov, and P. Kneisel, Hydroforming of elliptical cavities, Phys. Rev. ST Accel. Beams 18, 022001 (2015).
  5. M. Yamanaka, H. Inoue, T. Dohmae, K. Umemori, G. T. Park, A. Hocker, and T. Tajima, Hydroforming SRF three-cell cavity from seamless niobium tube, in Proceedings of the 7th International Particle Accelerator Conference, IPAC-2016, Busan, Korea (JACoW, Geneva, Switzerland, 2016), pp. 2170–2172.
  6. A.-M. Valente-Feliciano, Superconducting RF materials other than bulk niobium: A review, Supercond. Sci. Technol. 29, 113002 (2016).
  7. V. Arbet-Engels, C. Benvenuti, S. Calatroni, P. Darriulat, M. A. Peck, A.-M. Valente-Feliciano, and C. A. Van’t Hof, Superconducting niobium cavities, a case for the film technology, Nucl. Instrum. Methods Phys. Res., Sect. A 463, 1 (2001).
  8. S. Calatroni, 20 years of experience with the Nb/Cu technology for superconducting cavities and perspectives for future developments, Physica (Amsterdam) 441C, 95 (2006).
  9. A. Sublet, S. Aull, B. Bartova, S. Calatroni, T. Richard, G. Rosaz, M. Taborelli, M. Therasse, W. V. Delsolaro, and P. Zhang, Developments on SRF coatings at CERN, in Proceedings of the 17th International Conference on RF Superconductivity (SRF2015), Whistler, Canada (JACoW, Geneva, Switzerland, 2015), pp. 617–621.
  10. S. Aull, O. Brunner, A. Butterworth, and N. Schwerg, Material options for the superconducting rf system of the future circular collider, Report No. CERNACC-2018-0019, CERN, Geneva, Switzerland, 2017.
  11. S. Calatroni, A. Miyazaki, G. Rosaz, A. Sublet, W. V. Delsolaro, R. Vaglio, and V. Palmieri, Performance analysis of superconducting rf cavities for the CERN rare isotope accelerator, Phys. Rev. Accel. Beams 19, 092002 (2016).
  12. A. Miyazaki and W. V. Delsolaro, Two different origins of the Q-slope problem in superconducting niobium film cavities for a heavy ion accelerator at CERN, Phys. Rev. Accel. Beams 22, 073101 (2019).
  13. V. Palmieri and R. Vaglio, Thermal contact resistance at the Nb/Cu interface as a limiting factor for sputtered thin film rf superconducting cavities, Supercond. Sci. Technol. 29, 015004 (2015).
  14. C. Hauviller, Fully hydroformed rf cavities, in Proceedings of the 1989 Particle Accelerator Conference, Chicago, IL (IEEE, New York, 1989), pp. 485–487.
  15. P. Bernard, D. Bloess, M. Fouaidy, T. Schiller, E. Chiaveri, C. Hauviller, and W. Weingarten, Superconducting hydroformed niobium sputter coated copper cavities at 1.5 GHz, Reports No. CERN-AT-93-55-RF, No. P00018671, 1993, https://cds.cern.ch/record/256529/files/199401263.pdf.
  16. P. Bosland, A. Aspart, E. Jacques, and M. Ribeaudeau, Preparation, and rf tests of L-band superconducting niobium-coated copper cavities, IEEE Trans. Appl. Supercond. 9, 896 (1999).
  17. O. Azzolini, G. Keppel, and C. Pira, 400 MHz seamless copper cavity in the framework of FCC study, in Proceedings of the 19th International Conference on RF Superconductivity, SRF-2019, Dresden, Germany (JACoW, Geneva, Switzerland, 2019), pp. 36–38.
  18. F. Sciarrabba, O. Azzolini, I. Calliari, R. Guggia, G. Keppel, L. Pezzato, M. Pigato, and C. Pira, 1.3 GHz seamless copper cavities via CNC spinning technique, in Proceedings of the 20th International Conference on RF Superconductivity (SRF2021), East Lansing, MI (JACoW, Geneva, Switzerland, 2021), pp. 440–444.
  19. C. Benvenuti, V. G. Palmieri, and R. Vaglio, Construction materials for superconducting rf accelerating cavities, in Proceedings of the 4th Topical Symposium on Superconductivity and Superconducting Materials Technologies, Florence, Italy (Techna, Faenza, 1996), pp. 637–648.
  20. L. L. Amador, P. Chiggiato, L. M. A. Ferreira, E. Garcia-Tabares, T. Koettig, M. S. Meyer, A. T. Perez-Fontenla, K. Puthran, G. Rosaz, and M. Taborelli, Electrodeposition of copper applied to the manufacture of seamless superconducting rf cavities, Phys. Rev. Accel. Beams 24, 082002 (2021).
  21. L. Vega Cid, W. Venturini Delsolaro, S. Leith, L. Laín-Amador, G. Rosaz, K. Scibor, and S. Atieh, Seamless 1.3 GHz copper cavities for Nb coatings: Cold test results of two different approaches, in Proceedings of the 20th International Conference on RF Superconductivity, SRF-2021, East Lansing, MI (JACoW, Geneva, Switzerland, 2021), pp. 498–502.
  22. L. Vega Cid, W. Venturini Delsolaro, S. Leith, G. Bellini, G. Rosaz, A. Bianchi, and L. A. Ferreira, Results of the R&D RF testing campaign of 1.3 GHz Nb/Cu cavities, in Proceedings of the 21th International Conference on RF Superconductivity (SRF2023) Grand Rapids, MI (JACoW, Geneva, Switzerland, 2023), pp. 621–626.
  23. Press release World’s first success in the production of the seamless accelerator core (2023.11.2) (in Japanese), https://www.kek.jp/ja/press/202311021400.
  24. M. Yamanaka, Y. Nishi, K. Nishimori, S. Iwamoto, M. Garlaschè, J. S. Swieszek, S. Atieh, and A. Yamamoto, Full seamless copper substrate accelerator cavity manufactured by tube hydroforming, Int. J. Adv. Manuf. Technol. 138, 2543 (2025).
  25. G. Rosaz, A. Bartkowska, C. P. Carlos, T. Richard, and M. Taborelli, Niobium thin film thickness profile tailoring on complex shape substrates using unbalanced biased high power impulse magnetron sputtering, Surf. Coat. Technol. 436, 128306 (2022).
  26. B. Aune et al., Superconducting TESLA cavities, Phys. Rev. ST Accel. Beams 3, 092001 (2000).
  27. JIS H3300, Copper and copper alloy seamless pipes and tubes, Japanese Industrial Standard (2018), https://webdesk.jsa.or.jp/preview/pre_jis_h_03300_000_000_2018_e_ed10_i4.pdf.
  28. S. Yuan, Modern Hydroforming Technology (Springer Nature, Singapore, 2022).
  29. M. Tolazzi, Hydroforming applications in automotive: A review, Int. J. Mater. Form. 3, 307 (2010).
  30. C. Bell, J. Corney, N. Zuelli, and D. Savings, A state of the art review of hydroforming technology: Its applications, research areas, history, and future in manufacturing, Int. J. Mater. Form. 13, 789 (2020).
  31. S. Chinchanikar, H. Mulik, P. Varude, S. Atole, and N. Mundada, A review of emerging hydroforming technologies: Design considerations, parametric studies and recent innovations, J. Eng. Appl. Sci. 71, 205 (2024).
  32. J. S. Swieszek, M. Garlaschè, A. Gallifa-Terricabras, and D. Smakulska, Novel approaches in characterization and modelling of fabrication processes for SRF components, in Proceedings of the 21st International Conference on RF Superconductivity, SRF-2023, Grand Rapids, MI (JACoW, Geneva, Switzerland, 2023), pp. 490–495.
  33. A. Gallifa-Terricabras, J. S. Swieszek, D. Smakulska, B. Ruiz-Palenzuela, and M. Garlaschè, Forming limit diagram of annealed copper OFE thick sheets for optimized hydroforming of superconducting rf cavities, Mater. Des. 244, 113191 (2024).
  34. M. Arzeo, F. Avino, S. Pfeiffer, G. Rosaz, M. Taborelli, L. Vega-Cid, and W. Venturini-Delsolaro, Enhanced radio-frequency performance of niobium films on copper substrates deposited by high power impulse magnetron sputtering, Supercond. Sci. Technol. 35, 054008 (2022).
  35. C.-Y. Wang, C. Pereira, S. Leith, G. Rosaz, and S. M. Anlage, Microscopic examination of rf-cavity-quality niobium films through local nonlinear microwave response, Phys. Rev. Appl. 22, 054010 (2024).
  36. W. Venturini Delsolaro et al., Progress and R/D challenges for FCC-ee SRF, EPJ Tech. Instrum. 10, 6 (2023).
  37. K. Halbach and R. F. Holisinger, superfish—A computer program for evaluation of rf cavities with cylindrical symmetry, Part. Accel. 7, 213 (1976), https://escholarship.org/uc/item/1d26z7d0.
  38. Y. Yamamoto, H. Hayano, E. Kako, S. Noguchi, T. Shishido, K. Umemori, and K. Watanabe, Cavity diagnostic system for the vertical test of the baseline SC cavity in KEK-STF, in Proceedings of the 14th International Conference on RF Superconductivity, SRF-2007, Beijing, China (JACoW, Geneva, Switzerland, 2007), pp. 464–468.
  39. Y. Iwashita, Y. Tajima, and H. Hayano, Development of high resolution camera for observations of superconducting cavities, Phys. Rev. ST Accel. Beams 11, 093501 (2008).
  40. H. Ito, H. Araki, K. Takahashi, and K. Umemori, Influence of furnace baking on Q-E behavior of superconducting accelerating cavities, Prog. Theor. Exp. Phys. 2021, 071G01 (2021).
