All-dielectric metasurface polarization scrambler for imaging applications
Phys. Rev. A 112, 043531 – Published 20 October, 2025
DOI: https://doi.org/10.1103/vphf-51q9
Abstract

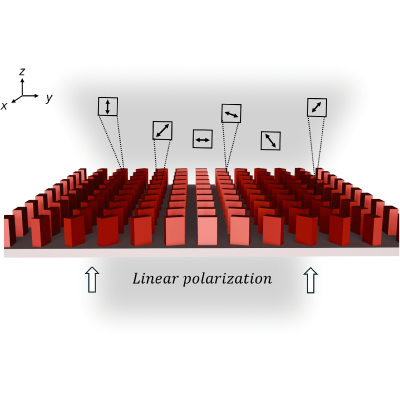

The partial polarization of the earth's radiation can be the source of radiometric errors for space instruments with polarization-sensitive components. It is therefore necessary to have a device capable of depolarizing the light before it enters the instrument, i.e., a polarization scrambler. Current scramblers used in optical payloads generally comprise combinations of prisms that enable spatial depolarization. However, polarization insensitivity comes at the cost of an inevitable degradation in imaging performance. Here we present a device based on an all-dielectric metasurface using anisotropic scatterers capable of generating multiple polarization states by varying their orientation angle. Our scrambling solution allows a massive reduction in the integrated degree of polarization and thus the spatial depolarization of any incident linear polarization, while reducing the impact on its image quality and allowing easier integration into the instrument design.
Physics Subject Headings (PhySH)
Article Text
References (21)
- J. Caron, J.-L. Bézy, G. B. Courrèges-Lacoste, B. Sierk, R. Meynart, M. Richert, and D. Loiseaux, in International Conference on Space Optics, Ajaccio, 2012, edited by E. Armandillo, N. Karafolas, and B. Cugny, SPIE Proc. Vol. 10564 (SPIE, Bellingham, 2017), paper 105642B.
- A. P. Loeber, Depolarization of white light by a birefringent crystal. II. The Lyot depolarizer, J. Opt. Soc. Am. 72, 650 (1982).
- J. Loesel, M. Dubreuil, V. Pascal, C. Buil, and F. Buisson, in International Conference on Space Optics, Tenerife, 2014, edited by Z. Sodnik, B. Cugny, and N. Karafolas, SPIE Proc. Vol. 10563 (SPIE, Bellingham, 2018), paper 1056318.
- F. Pasternak, P. Bernard, L. Georges, and V. Pascal, in International Conference on Space Optics, Biarritz, 2016, edited by B. Cugny, N. Karafolas, and Z. Sodnik, SPIE Proc. Vol. 10562 (SPIE, Bellingham, 2017), paper 105621P.
- J. P. McGuire, Jr. and R. A. Chipman, Analysis of spatial pseudodepolarizers in imaging systems, Opt. Eng. 29, 1478 (1990).
- P. Genevet, F. Capasso, F. Aieta, M. Khorasaninejad, and R. Devlin, Recent advances in planar optics: From plasmonic to dielectric metasurfaces, Optica 4, 139 (2017).
- M. Khorasaninejad, W. T. Chen, R. C. Devlin, J. Oh, A. Y. Zhu, and F. Capasso, Metalenses at visible wavelengths: Diffraction-limited focusing and subwavelength resolution imaging, Science 352, 1190 (2016).
- W. T. Chen, A. Y. Zhu, J. Sisler, Z. Bharwani, and F. Capasso, A broadband achromatic polarization-insensitive metalens consisting of anisotropic nanostructures, Nat. Commun. 10, 355 (2019).
- J. Billuart, S. Héron, B. Loiseaux, C. Amra, and M. Lequime, Towards a metasurface adapted to hyperspectral imaging applications: From subwavelength design to definition of optical properties, Opt. Express 29, 32764 (2021).
- N. A. Rubin, G. D'Aversa, P. Chevalier, Z. Shi, W. T. Chen, and F. Capasso, Matrix Fourier optics enables a compact full-Stokes polarization camera, Science 365, eaax1839 (2019).
- K. Jie, H. Huang, S. Qin, J. Guo, H. Liu, H. Meng, F. Wang, X. Yang, and Z. Wei, Electronically controlled time-domain integral average depolarizer based on a barium titanate (BTO) metasurface, Nanomaterials 12, 1228 (2022).
- P. Schau, L. Fu, K. Frenner, M. Schäferling, H. Schweizer, H. Giessen, L. M. G. Venacio, and W. Osten, Polarization scramblers with plasmonic meander-type metamaterials, Opt. Express 20, 22700 (2012).
- Y. Wang, W. Zhu, C. Zhang, Q. Fan, L. Chen, H. Lezec, A. Agrawal, and T. Xu, Ultra-compact visible light depolarizer based on dielectric metasurface, Appl. Phys. Lett. 116, 051103 (2020).
- N. A. Rubin, Z. Shi, and F. Capasso, Polarization in diffractive optics and metasurfaces, Adv. Opt. Photon. 13, 836 (2021).
- J. P. Balthasar Mueller, N. A. Rubin, R. C. Devlin, B. Groever, and F. Capasso, Metasurface polarization optics: Independent phase control of arbitrary orthogonal states of polarization, Phys. Rev. Lett. 118, 113901 (2017).
- Y. Hu, X. Wang, X. Luo, X. Ou, L. Li, Y. Chen, P. Yang, S. Wang, and H. Duan, All-dielectric metasurfaces for polarization manipulation: principles and emerging applications, Nanophotonics 9, 3755 (2020).
- J. B. Breckinridge, W. S. T. Lam, and R. A. Chipman, Polarization aberrations in astronomical telescopes: The point spread function, Publ. Astron. Soc. Pac. 127, 445 (2015).
- S. Huard, Polarisation de la Lumière (Masson, Issy-les-Moulineaux, 1994).
- R. A. Chipman, W. S. T. Lam, and G. Youn, Polarized Light and Optical Systems, 1st ed. (CRC, Boca Raton, 2018).
- S. Lopez, Y. Gaeremynck, L. Georges, M. Castelnau, E. Cansot, and V. Pascal, in International Conference on Space Optics, 2020, edited by B. Cugny, Z. Sodnik, and N. Karafolas, SPIE Proc. Vol. 11852 (SPIE, Bellingham, 2021), paper 118521R.
- A. Arbabi, Y. Horie, M. Bagheri, and A. Faraon, Dielectric metasurfaces for complete control of phase and polarization with subwavelength spatial resolution and high transmission, Nat. Nanotechnol. 10, 937 (2015).
