Equalized hyperspin machine

Marcello Calvanese Strinati1,* and Claudio Conti1,2

  • *Contact author: marcello.calvanesestrinati@gmail.com
PDF

Phys. Rev. A 112, 053505 – Published 4 November, 2025

DOI: https://doi.org/10.1103/cxjt-53qy

Abstract

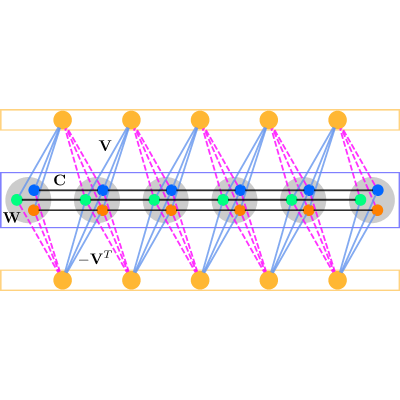

The reliable simulation of spin models is of critical importance to tackle complex optimization problems that are intractable on conventional computing machines. The recently introduced hyperspin machine, which is a network of linearly and nonlinearly coupled parametric oscillators, provides a versatile simulator of general classical vector spin models in arbitrary dimension, finding the minimum of the simulated spin Hamiltonian and implementing novel annealing algorithms. In the hyperspin machine, oscillators evolve in time minimizing a cost function that must resemble the desired spin Hamiltonian in order for the system to reliably simulate the target spin model. This condition is met if the hyperspin amplitudes are equal in the steady state. Currently, no mechanism to enforce equal amplitudes exists. Here we bridge this gap and introduce a method to simulate the hyperspin machine with equalized amplitudes in the steady state. We employ an additional network of oscillators (named equalizers) that connect to the hyperspin machine via an antisymmetric nonlinear coupling and equalize the hyperspin amplitudes. We demonstrate the performance of such an equalized hyperspin machine by large-scale numerical simulations up to 10 000 hyperspins. Compared to the hyperspin machine without equalization, we find that (1) the equalized hyperspin machine reaches orders of magnitude lower spin energy and (2) its performance is significantly less sensitive to the system parameters. The equalized hyperspin machine offers a competitive spin Hamiltonian minimizer and opens the possibility to combine amplitude equalization with complex annealing protocols to further boost the performance of spin machines.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (46)

  1. A. Lucas, Ising formulations of many NP problems, Front. Phys. 2, 5 (2014).
  2. J. W. F. Woo and R. Landauer, Fluctuations in a parametrically excited subharmonic oscillator, IEEE J. Quantum Electron. 7, 435 (1971).
  3. Z. Wang, A. Marandi, K. Wen, R. L. Byer, and Y. Yamamoto, Coherent Ising machine based on degenerate optical parametric oscillators, Phys. Rev. A 88, 063853 (2013).
  4. T. Byrnes, K. Yan, and Y. Yamamoto, Accelerated optimization problem search using Bose-Einstein condensation, New J. Phys. 13, 113025 (2011).
  5. E. Goto, The parametron, a digital computing element which utilizes parametric oscillation, Proc. IRE 47, 1304 (1959).
  6. T. L. Heugel, R. Chitra, A. Eichler, and O. Zilberberg, Proliferation of unstable states and their impact on stochastic out-of-equilibrium dynamics in two coupled Kerr parametric oscillators, Phys. Rev. E 109, 064308 (2024).
  7. F. Böhm, G. Verschaffelt, and G. Van der Sande, A poor man's coherent Ising machine based on opto-electronic feedback systems for solving optimization problems, Nat. Commun. 10, 3538 (2019).
  8. H. Goto, K. Tatsumura, and A. R. Dixon, Combinatorial optimization by simulating adiabatic bifurcations in nonlinear Hamiltonian systems, Sci. Adv. 5, eaav2372 (2019).
  9. K. Tatsumura, M. Yamasaki, and H. Goto, Scaling out Ising machines using a multi-chip architecture for simulated bifurcation, Nat. Electron. 4, 208 (2021).
  10. H. Goto, Quantum computation based on quantum adiabatic bifurcations of Kerr-nonlinear parametric oscillators, J. Phys. Soc. Jpn. 88, 061015 (2019).
  11. H. Goto, Universal quantum computation with a nonlinear oscillator network, Phys. Rev. A 93, 050301(R) (2016).
  12. A. Marandi, Z. Wang, K. Takata, R. L. Byer, and Y. Yamamoto, Network of time-multiplexed optical parametric oscillators as a coherent Ising machine, Nat. Photon. 8, 937 (2014).
  13. T. Inagaki, K. Inaba, R. Hamerly, K. Inoue, Y. Yamamoto, and H. Takesue, Large-scale Ising spin network based on degenerate optical parametric oscillators, Nat. Photon. 10, 415 (2016).
  14. Y. Yamamoto, K. Aihara, T. Leleu, K. Kawarabayashi, S. Kako, M. Fejer, K. Inoue, and H. Takesue, Coherent Ising machines: Optical neural networks operating at the quantum limit, npj Quantum Inf. 3, 49 (2017).
  15. Y. Yamamoto, T. Leleu, S. Ganguli, and H. Mabuchi, Coherent Ising machines-quantum optics and neural network perspectives, Appl. Phys. Lett. 117, 160501 (2020).
  16. Y. Takeda, T. Tamate, Y. Yamamoto, H. Takesue, T. Inagaki, and S. Utsunomiya, Boltzmann sampling for an XY model using a non-degenerate optical parametric oscillator network, Quantum Sci. Technol. 3, 014004 (2017).
  17. M. Honari-Latifpour and M.-A. Miri, Mapping the XY Hamiltonian onto a network of coupled lasers, Phys. Rev. Res. 2, 043335 (2020).
  18. V. Pal, S. Mahler, C. Tradonsky, A. A. Friesem, and N. Davidson, Rapid fair sampling of the XY spin Hamiltonian with a laser simulator, Phys. Rev. Res. 2, 033008 (2020).
  19. I. Gershenzon, G. Arwas, S. Gadasi, C. Tradonsky, A. Friesem, O. Raz, and N. Davidson, Exact mapping between a laser network loss rate and the classical XY Hamiltonian by laser loss control, Nanophotonics 9, 4117 (2020).
  20. N. G. Berloff, M. Silva, K. Kalinin, A. Askitopoulos, J. D. Töpfer, P. Cilibrizzi, W. Langbein, and P. G. Lagoudakis, Realizing the classical XY Hamiltonian in polariton simulators, Nat. Mater. 16, 1120 (2017).
  21. M. Nixon, E. Ronen, A. A. Friesem, and N. Davidson, Observing geometric frustration with thousands of coupled lasers, Phys. Rev. Lett. 110, 184102 (2013).
  22. T. Wang and J. Roychowdhury, Oscillator-based Ising machine, arXiv:1709.08102.
  23. T. Wang and J. Roychowdhury, OIM: Oscillator-based Ising machines for solving combinatorial optimisation problems, in Unconventional Computation and Natural Computation, edited by I. McQuillan and S. Seki (Springer, Cham, 2019), pp. 232–256.
  24. J. Roychowdhury, A global Lyapunov function for the coherent Ising machine, NOLTA, IEICE 13, 227 (2022).
  25. M. Calvanese Strinati and C. Conti, Multidimensional hyperspin machine, Nat. Commun. 13, 7248 (2022).
  26. M. Calvanese Strinati and C. Conti, Hyperscaling in the coherent hyperspin machine, Phys. Rev. Lett. 132, 017301 (2024).
  27. M. Calvanese Strinati, L. Bello, E. G. Dalla Torre, and A. Pe'er, Can nonlinear parametric oscillators solve random Ising models? Phys. Rev. Lett. 126, 143901 (2021).
  28. S. Ben-Ami, I. Aharonovich, and A. Pe'er, Persistent dynamics in coupled non-degenerate parametric oscillators: Pump saturation prevents mode competition, Opt. Express 31, 9264 (2023).
  29. H. E. Stanley, Scaling, universality, and renormalization: Three pillars of modern critical phenomena, Rev. Mod. Phys. 71, S358 (1999).
  30. T. Kadowaki and H. Nishimori, Quantum annealing in the transverse Ising model, Phys. Rev. E 58, 5355 (1998).
  31. J. S. Cummins and N. G. Berloff, Vector Ising spin annealer for minimizing Ising Hamiltonians, Commun. Phys. 8, 225 (2025).
  32. J. S. Cummins and N. G. Berloff, Complex vector gain-based annealer for minimizing XY Hamiltonians, arXiv:2411.02010.
  33. S. Chiavazzo, M. Calvanese Strinati, C. Conti, and D. Pierangeli, Ising machine by dimensional collapse of nonlinear polarization oscillators, Phys. Rev. Lett. 135, 063801 (2025).
  34. T. Leleu, Y. Yamamoto, S. Utsunomiya, and K. Aihara, Combinatorial optimization using dynamical phase transitions in driven-dissipative systems, Phys. Rev. E 95, 022118 (2017).
  35. T. Leleu, Y. Yamamoto, P. L. McMahon, and K. Aihara, Destabilization of local minima in analog spin systems by correction of amplitude heterogeneity, Phys. Rev. Lett. 122, 040607 (2019).
  36. S. H. Strogatz, Nonlinear Dynamics and Chaos, Studies in Nonlinearity (Perseus Books, Reading, MA, 2007).
  37. M. Calvanese Strinati, L. Bello, A. Pe'er, and E. G. Dalla Torre, Theory of coupled parametric oscillators beyond coupled Ising spins, Phys. Rev. A 100, 023835 (2019).
  38. T. L. Heugel, M. Oscity, A. Eichler, O. Zilberberg, and R. Chitra, Classical many-body time crystals, Phys. Rev. Lett. 123, 124301 (2019).
  39. R.W. Boyd, Nonlinear Optics (Academic Press, Burlington, 2008).
  40. P. Kinsler and P. D. Drummond, Quantum dynamics of the parametric oscillator, Phys. Rev. A 43, 6194 (1991).
  41. M. Calvanese Strinati and C. Conti, Non-Gaussianity in the quantum parametric oscillator, Phys. Rev. A 109, 063519 (2024).
  42. S. K. Vadlamani, T. P. Xiao, and E. Yablonovitch, Physics successfully implements Lagrange multiplier optimization, Proc. Natl. Acad. Sci. USA 117, 26639 (2020).
  43. Z. D. Bai and Y. Q. Yin, Necessary and sufficient conditions for almost sure convergence of the largest eigenvalue of a Wigner matrix, Ann. Probab. 16, 1729 (1988).
  44. H. Nishimori, Statistical Physics of Spin Glasses and Information Processing: An Introduction, International Series of Monographs on Physics (Oxford University Press, Oxford, 2001).
  45. P. L. McMahon, A. Marandi, Y. Haribara, R. Hamerly, C. Langrock, S. Tamate, T. Inagaki, H. Takesue, S. Utsunomiya, K. Aihara, R. L. Byer, M. M. Fejer, H. Mabuchi, and Y. Yamamoto, A fully programmable 100-spin coherent Ising machine with all-to-all connections, Science 354, 614 (2016).
  46. H. Takesue, K. Inaba, T. Inagaki, T. Ikuta, Y. Yamada, T. Honjo, T. Kazama, K. Enbutsu, T. Umeki, and R. Kasahara, Simulating Ising spins in external magnetic fields with a network of degenerate optical parametric oscillators, Phys. Rev. Appl. 13, 054059 (2020).
